Quick Details
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
400*300*900mm
-
Weight:
-
180
-
Power (kW):
-
4
-
Capacity:
-
30T (Can be customize)
-
Temp. Range:
-
Room temp. ~300℃
-
Temp. Controller:
-
LED Indicator,press key set input, the value indicate output
-
Timer:
-
LED display,time range 0.1S~99min~9.9hr
-
Heating type:
-
Heating tube heating
-
Pressure plate size:
-
220*220mm
-
Distance of pressure plate:
-
0~70mm
-
Product name:
-
Small Rubber Platen Vulcanizing Press Machine
-
Keyword:
-
Platen Press Machine
-
Power supply:
-
220v 50/60HZ
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Warranty of core components:
-
2 Year
-
Brand Name:
-
NEWGOER
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
400*300*900mm
-
Weight:
-
180
-
Power (kW):
-
4
-
Capacity:
-
30T (Can be customize)
-
Temp. Range:
-
Room temp. ~300℃
-
Temp. Controller:
-
LED Indicator,press key set input, the value indicate output
-
Timer:
-
LED display,time range 0.1S~99min~9.9hr
-
Heating type:
-
Heating tube heating
-
Pressure plate size:
-
220*220mm
-
Distance of pressure plate:
-
0~70mm
-
Product name:
-
Small Rubber Platen Vulcanizing Press Machine
-
Keyword:
-
Platen Press Machine
-
Power supply:
-
220v 50/60HZ

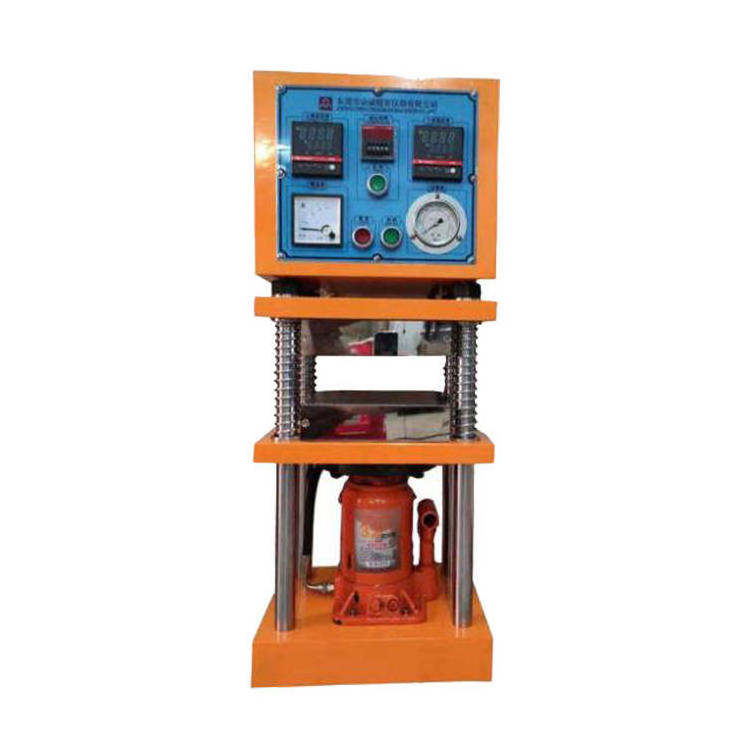

Lab Small Rubber Fully Automatic Flat Vulcanizing Machine
Summary:
The Manual Rubber Platen Press Machine is mainly used in rubber and products, plastics and products PVC, pigments, masterbatch, stabilizer, and other industries. Its main purpose is to test the change and comparison of the physical properties of raw materials after molding. Such as: the gloss of the surface of the material after molding, whether there are black spots, its strength, hardness, and plasticity after adding auxiliary materials.
Speficiations:
| Model |
NG-3217 Manual Small Rubber Platen Vulcanizing Press Machine |
|
Capacity |
30T (Can be customize) |
|
Temp. Range |
LED Indicator,press key set input, the value indicate output |
|
Timer |
LED display,time range 0.1S~99min~9.9hr |
|
Heating type |
Heating tube heating |
|
Pressure plate size |
220*220mm |
|
Distance of pressure plate |
0~70mm |
|
Pressure material |
High-quality alloy steel (corrosion resistance, high temperature resistance, uniform heat conduction) |
|
Pressure surface |
Mirror chrome plated |
|
Working layer |
One layer (heating layer) |
|
Pressurized oil cylinder |
Jack, manual pressure |
|
Oil cylinder speed |
9mm/s |
| Power |
4kw |
| Power supply |
AC220V 50/60hz |
Principle:
Put the test material in the mold, and place it in parallel between the heating platens of this product, and apply a certain temperature and pressure to shape the experimental material for production reference.
Applicable Range:
Universities and research institutes: Research and development of new materials, teaching use, formula comparison and improvement.
Rubber industry: Vulcanization with vulcanizing agent.
Plastic industry: Detection of press proofing, fisheye, black spots, stains, etc.
Stabilizer chemical industry: testing strength, hardness.
