Quick Details
-
Voltage:
-
380V/110V/220V
-
Power:
-
22Kw
-
Dimension(L*W*H):
-
Width1700 x Depth8600 x Height2100 mm
-
Weight (KG):
-
3000
-
Automatic Powder Coating System:
-
COLO-191S-A Powder Coating Gun/COLO-2200 Powder Coating Reicprocator
-
Powder Management Center:
-
COLO-6200 powder feed center
-
Powder Coating Oven:
-
Customized Powder Curing Oven
-
Booth:
-
PP Plastic Automatic Powder Coating Booth
-
Filters:
-
32pcs(polyester)
-
Kinds of coating:
-
Powder coating
-
Function:
-
High Coating Efficiency
-
Color:
-
Photo Color
-
Material:
-
Steel Powder Coated/Stainless steel 304
Quick Details
-
Machine Type:
-
Automatic Powder Coating Line, Spray Booths, Painting Equipment, Plc Controller Programmable Logic Controller, Coating Equipment
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
COLO
-
Voltage:
-
380V/110V/220V
-
Power:
-
22Kw
-
Dimension(L*W*H):
-
Width1700 x Depth8600 x Height2100 mm
-
Weight (KG):
-
3000
-
Automatic Powder Coating System:
-
COLO-191S-A Powder Coating Gun/COLO-2200 Powder Coating Reicprocator
-
Powder Management Center:
-
COLO-6200 powder feed center
-
Powder Coating Oven:
-
Customized Powder Curing Oven
-
Booth:
-
PP Plastic Automatic Powder Coating Booth
-
Filters:
-
32pcs(polyester)
-
Kinds of coating:
-
Powder coating
-
Function:
-
High Coating Efficiency
-
Color:
-
Photo Color
-
Material:
-
Steel Powder Coated/Stainless steel 304
Product Description

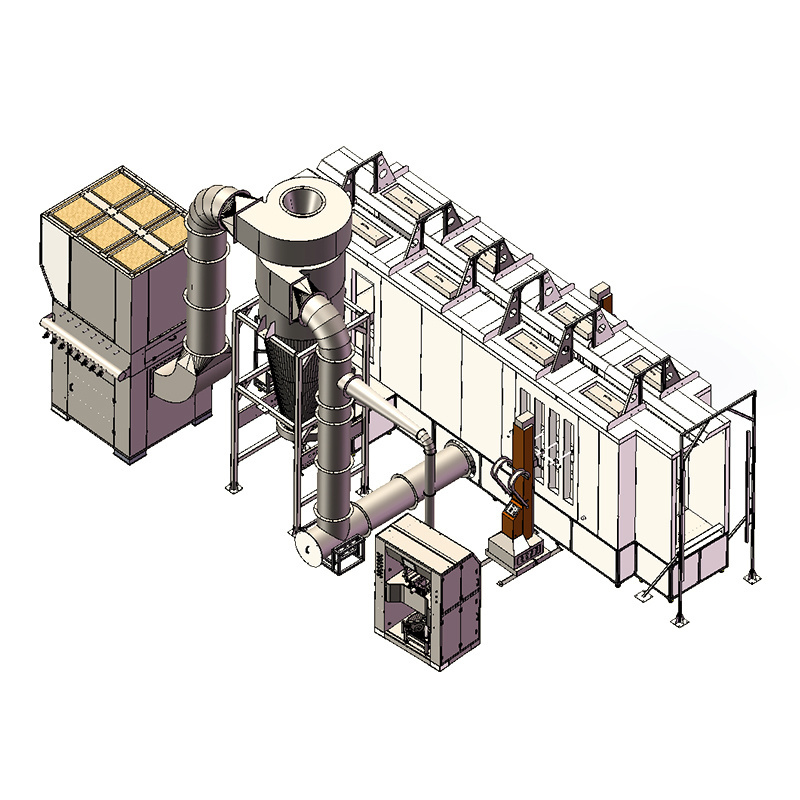

High Efficient Recycling Type Automatic Powder Coating Painting Line
This automatic powder coating booth constructed with plastic booth chamber and stainless steel cyclone, which is specially built for multi-color coating lines. As the booth wall is made of anti-static plastic it does not attract powders which minimizes powder accumulation on the surface. It is the best choice for quick color change and high powder recovery demands.
Product Details
Powder Coating Overhead Conveyor System
Overhead conveyor system is the most commonly used solution for wet paint or powder coating finishing. The type of conveyor selected for your operation will depend on the weight, size and even the shape of the items being transported. We we can design whole conveyor system specially for your needs.
COLO Customized Powder Coating Oven
The tunnel curing oven are designed for continuous operations. The product painted in these furnaces which are used in conveyor automatic facilities is constantly processed under desired temperature and time. It may be manufactured in various types depending on the lack of space to be installed or conveyor speed. Maximum painting efficiency is obtained with high capacities by means of those systems.
1. COLO-191S powder coating unit applies latest DVC technology allows a flexible and accurate setting of all parameters, giving perfect finish with consistent quality.
2. The 100kv spray gun powerfully charge powders delivers high transfer efficiency, increase powder utilization.
3. Air-purge cleanable design for fast, easy cleaning, without gun disassembly.
4. A central control cabinet combines all gun controller for integrated operation, enbales to set parameters only at one host unit to control whole system.
|
Model
|
COLO-191S-A
|
|
Weight of Gun
|
500g
|
|
Length of Gun
|
330mm
|
|
Power Source
|
AC220v
|
|
Frequency
|
50~60Hz
|
|
Power Consumption
|
50w
|
|
Voltage Input
|
DC 24v
|
|
Voltage Output
|
100kv
|
|
Max. Current Output
|
180
|
|
Polarity
|
Negative
|
|
Max. Injection Capacity
|
650g/Min
|
|
Air Consumption
|
MAX. 13N/h
|
|
Temperature Rage in use
|
-10-50
|
COLO-2200D Powder Coating Reicprocator
1. a frequency adjustable motor controlled by PLC, giving more smooth, stable and precise motion.
2. Linear rail guide mechanism, travel through a belt, gives more gentle up-and-down motion with less wear.
3. Heavy-loaded reciprocator with reliability to carry up to 24 pcs powder spray guns.
4. Moving speed and stroke can be easily set at the touching screen with 20 storable programs.
5.carries a certain quantity of spray guns for up-and-down motion, delivers excellent uniformity and efficiency of powder coating.
|
Model
|
COLO-2200D
|
|
Power supply
|
AC 220V/110V 50Hz-60Hz
|
|
Power motor
|
1.1KW
|
|
Sweep speed
|
0-50m/min
|
|
Acceleration
|
1m/Second
|
|
Environmental
|
0-50 degree
|
|
Star signal model
|
digital display
|
|
Max load capacity
|
25kgs
|
|
Motion range
|
0.3-2.5m can be setting
|
|
Stroke
|
1.5m/2m/2.5m
|
PP Plastic Powder Coating Cyclone Booth
1. Booth material is made anti-static engineering plastic, which is non-stick of powders, reduces powder waste and improve efficiency. 2. Mono cyclone achieves recycling efficiency up to 98%, a great saving of powders, a quick cleaning takes around 15 minutes. 3. With the discharge device of "large-diameter cyclone separator + after filter unit" makes the least powder accumulation and the most environmental-friendly emission. 4. There's air clean system continuously transports over sprayed powder from the booth floor, quickly recycling it back to the powder feed container.
|
Booth Type
|
Automatic Type
|
|
Operator dimensions
|
Width1700 x Depth8600 x Height2100 mm
|
|
Weight
|
3000kg
|
|
Power supply
|
Electric
|
|
Nominal power
|
22kw
|
|
Voltage
|
380V/220V. customized as local.
|
|
Frequency
|
50-60Hz
|
|
Filters
|
Polyester
|
|
Filters count
|
32pcs (325*900)
|
|
Filters hang type
|
Rotary Wing, help filter cleaning
|
|
Filter cleaning system
|
Pneumatic
|
|
Booth Material
|
Wall:PVC; Floor PVC & Stainless Steel
|
COLO-6200 Powder Feed Center
1. Allows directly placing the original powder carton on the funnel, flexible for color changing, no need to clean the powder container.
2. PLC system with touch screen integrates all functions, automatic cleaning of spray guns, powder hoses, injectors during color change, reduce manpower and increase efficiency.
3. Ultrasonic sieving of fresh powders and recovery powders, dissolving and loosening of powder accumulations for even powder flow.
4. A closed powder hopper with a sener will detect the powder position and alarm a signal when a lack of powder.
|
Mode
|
COLO-6200
|
|
Voltage
|
110V/220V, 1Phase (can be customized)
|
|
Total Power
|
100w
|
|
Powder Hopper Size
|
310*240*270mm
|
|
Standard Mesh Size
|
80 mesh (on request)
|
|
Ultrasonic frequency
|
38kHz
|
Application
The automatic pp plastic powder coating booth is mostly used for the powder coating line spraying operation, and is used with the automatic spraying gun system, which is suitable for the batch spraying of auto parts, aluminum profiles, doors, windows and furniture, shelves and other workpieces.
