Quick Details
-
IPTV Streaming:
-
Yes
-
Media Monitoring:
-
Yes
-
Fast Scanning Function:
-
Yes
-
VCM, CCM, ACM:
-
Support
-
Blind Scan:
-
Yes
-
Tuner:
-
2 tuners
-
interface:
-
PCI-e
-
Digital TV Signal:
-
DVB-S2/S, DVB-T2/T, DVB-C2/C, DVB-2X and ISDB-T
-
Warranty:
-
2 Years
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
TBS
-
Model Number:
-
TBS6522
-
IPTV Streaming:
-
Yes
-
Media Monitoring:
-
Yes
-
Fast Scanning Function:
-
Yes
-
VCM, CCM, ACM:
-
Support
-
Blind Scan:
-
Yes
-
Tuner:
-
2 tuners
-
interface:
-
PCI-e
-
Digital TV Signal:
-
DVB-S2/S, DVB-T2/T, DVB-C2/C, DVB-2X and ISDB-T
-
Warranty:
-
2 Years
Product Description

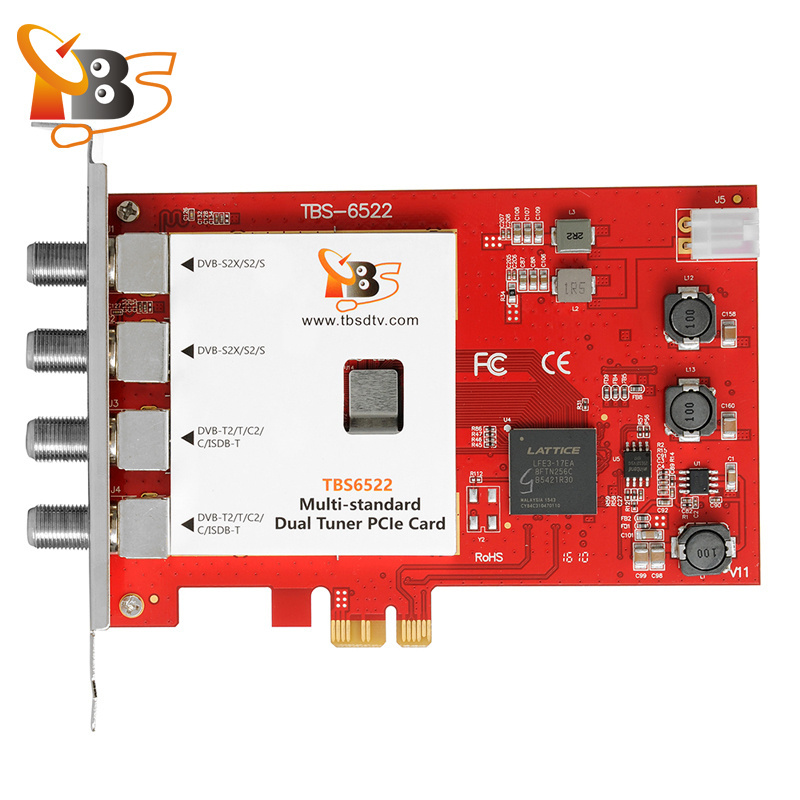

TBS6522 Dual Tuner DVB Digital Satellite Receiver DVB-T DVB-S ISDV-T receiver Multistand tuner receiver.
Main Features:
Support DVB-S2/S DVB-T2/T DVB-C ISDB-T
Fast scanning functionality for all media, including efficient bliand scan for satellite and cable
Support VCM, CCM, QPSK, 8PSK, 16APSK, 32APSK;
Up to 173M/bps(TS Data Rate)
Supportable maximal symbol rates: 45M for 8PSK,16APSK, 40M for 32APSK
Power consumption (each demod):<440 mW in DVB-S2 modes; 360 mW in DVB-T2 modes; <190mW in ISDB-T, DVB-T, and DVB-C modes
Automatic spectral inversion detection for all media
Dual flexible TS interfaces with serial or parallel single outputs with tri-state and cross-bar features
3.3 and 1.2V power supplies
Applications:
Data receiving
IPTV streaming
Media monitoring
Digital content distribution
Specifications:
|
ISDB-T
|
6,7 and 8 MHz bandwidth
|
|
|
|
Partial reception supported
|
|
|
|
Carrier recovery:±600 kHz
|
|
|
|
Timing recovery:±200 ppm
|
|
|
DVB-T2 and T2-Lite
|
Bandwidth: 1.7, 5, 6, 7 or 8 MHz
|
|
|
|
DVB-T2 versus DVB-T automatic detection
|
|
|
|
Carrier recovery: ±600 kHz
|
|
|
|
Timing recovery: ±200 ppm
|
|
|
DVB-T
|
Bandwidth: 6, 7, 8 MHz. ACI filtering for 7 MHz channels enables use of a fixed 8 MHz IF filter
|
|
|
|
Carrier recovery: ±600 kHz
|
|
|
|
Timing recovery: ±200 ppm
|
|
|
|
Supports all C.R.; G.I.;LP and HP streams
|
|
|
|
Advanced terrestrial channel equalizer
|
|
|
DVB-C2
|
Notch management
|
|
|
|
Timing recovery:±200 ppm
|
|
|
|
Advanced cable channel equalizer
|
|
|
DVB-C and ITU-T J.83 Annex B
|
DFE equalizer specific for cable network
|
|
|
|
Carrier recovery: ±11% of Symbol rate
|
|
|
|
Timing recovery: ±1000 ppm
|
|
|
DVB-S/S2/S2X
|
Enhanced immunity to co-channel interferers
|
|
|
|
Programmable carrier recovery range
|
|
|
|
Timing recovery: ±1000 ppm
|
|
|
Power consumption
|
|
|
|
Input/ Power:
|
12V/6~18W
|
|
|
temperature
|
0°~ 60°
|
|
|
Other information:
|
|
|
|
System Requirements
|
Windows XP / Vista/ 7/8/10, Linux
|
|
|
|
Available PCI Express x1, x4, x8 or x16 slot
|
|
|
|
Digital TV signal (ISDB-T/DVB-T2/C2/S2X/S2/T/C/S)
|
|
|
Dimension:
|
|
|
|
TV tuner card size
|
130mm*92mm
|
|
|
Net weight
|
115g
|
|
|
Gift Box Size
|
200*130*30mm
|
|
|
Weight
|
210g
|
|
|
Package Contents
|
1 x TBS6522
|
|
|
|
1 x DC cable
|
|
|
|
2 x F-IEC adapter
|
|
