Quick Details
-
Peak Power:
-
2x180kw
-
Rated Torque:
-
2x260Nm
-
Peak torque:
-
2x520Nm
-
Peak Speed:
-
9500rpm
-
Rated voltage:
-
540VDC
-
Rated Axle load:
-
13000KG
-
Max. Wheel Speed:
-
620rpm
-
Gear ratio:
-
49.4
-
Application:
-
Electric Heavy Trucks
Quick Details
-
Voltage:
-
400-750V
-
Purpose:
-
Commercial EV
-
Rated power:
-
2x80kw
-
Peak Power:
-
2x180kw
-
Rated Torque:
-
2x260Nm
-
Peak torque:
-
2x520Nm
-
Peak Speed:
-
9500rpm
-
Rated voltage:
-
540VDC
-
Rated Axle load:
-
13000KG
-
Max. Wheel Speed:
-
620rpm
-
Gear ratio:
-
49.4
-
Application:
-
Electric Heavy Trucks
Electric Trucks Powertrain Solution
1. Electric PMSM Motor& Motor Controller (& Gearbox)
*matching battery pack customizable
|
Model
|
Motor Parameters
|
|
|
|
Gearbox
|
|
||||
|
|
Rated/Peak Power
|
Rated/Peak Torque
|
Peak Speed
|
Level of IP
|
Gear V
|
Speed ratio
|
||||
|
12T/TED3010S
|
110/210KW
|
500/1100Nm
|
4500rpm
|
IP67/H
|
1/2
|
2.741/1.00
|
||||
|
14-18T/STED7000S
|
100/200KW
|
500/1060Nm
|
3500rpm
|
IP67/H
|
1/2/3/4
|
6.61/3.52/1.89/1.00
|
||||
|
TZ400XS-120
|
120/200KW
|
1300/2800Nm
|
2500rpm
|
IP67/H
|
/
|
/
|
||||
|
TZ375XSS
|
250/410KW
|
1400/2800Nm
|
3500rpm
|
IP68/H
|
/
|
/
|
||||
|
25T/HTED16000
|
180/300KW
|
850/1950Nm
|
3500rpm
|
IP67/H
|
1/2/3/4
|
8.39/3.54/1.74/1.00
|
||||
|
31-49T/HTED20000L2
|
250/380KW
|
1200/2400Nm
|
3500rpm
|
IP67/H
|
1/2/3/4
|
8.39/3.54/1.74/1.00
|
||||
|
55T/HTED20000
|
270/405KW
|
1500/2400Nm
|
3500rpm
|
IP67/H
|
1/2/3/4
|
8.39/3.54/1.74/1.00
|
||||
|
60-90T/HTED20000H1
|
315/450KW
|
1650/2400Nm
|
3500rpm
|
IP67/H
|
1/2/3/4
|
8.39/4.36/2.27/1.00
|
||||
|
40-90T/250-360
|
250/360KW
|
1200/2400Nm
|
3000rpm
|
IP67/H
|
1/2/3/4/5/6
|
8.507/4.94/2.994/1.876/1.216/1.00
|
||||
|
3H2800
|
330/450KW
|
1500/2800Nm
|
3500rpm
|
IP67/H
|
/
|
/
|
||||
|
3H4800
|
430/700KW
|
2720/4800Nm
|
3500rpm
|
IP67/H
|
/
|
/
|
||||
40T Heavy Trucks
motor and gearbox 2-in-1
1. Product parameters:
Motor rated power: 250 KW;
Peak motor power: 360 KW;
Motor rated torque: 600N.m;
Motor peak torque: 2500N.m
Maximum motor speed: 3500 rpm;
Motor rated speed: 1492 rpm;
Transmission ratio: 8.507/4.943/2.994/1.876/1.2I6/1
Shift mechanism: AMT pneumatic direct shift device;
Power take-off: model QH50, total output speed ratio: 1.67, output torque 50ON.m
Peak motor power: 360 KW;
Motor rated torque: 600N.m;
Motor peak torque: 2500N.m
Maximum motor speed: 3500 rpm;
Motor rated speed: 1492 rpm;
Transmission ratio: 8.507/4.943/2.994/1.876/1.2I6/1
Shift mechanism: AMT pneumatic direct shift device;
Power take-off: model QH50, total output speed ratio: 1.67, output torque 50ON.m
2. The motor cooling method is water cooling, the water flow is 35-40L/min, and the water inlet temperature is ≤65℃;
30T~44T Heavy truck
Three-in-one powertrain system
Rated axle load: 5000kg
Motor form: PMSM
Rated power: 200kW
Peak power: 300kW
Peak torque: 20000 Nm
Peak speed: 2800rpm
Transmission ratio: 8.507/4.943/2.994/1.876/1.216/1
Maximum output torque: 500 Nm
Total Weight: 537kg
Motor Controller: Integrated
Transmission form: 6-speed dual countershaft pneumatic shift AMT
Protection: IP68
31T~55T Heavy Truck Powertrain
Fast 6-speed gearbox
Rated Voltage: 600VDC
Motor form: PMSM
Rated power: 250kW
Peak power: 360kW Rated torque: 1200Nm
Peak torque: 2400 Nm
Max.speed: 3000rpm (Speed limit can be done according to demand)
Max. allowable input torque: 2400Nm
Take power speed ratio: 1.67
Peak speed: 2800rpm
Total system weight: 614kg
GearV: 1/2/3/4/5/6
Speed ratio: 8.507/4.94/2.994/1.876/1.216/1
Motor form: PMSM
Rated power: 250kW
Peak power: 360kW Rated torque: 1200Nm
Peak torque: 2400 Nm
Max.speed: 3000rpm (Speed limit can be done according to demand)
Max. allowable input torque: 2400Nm
Take power speed ratio: 1.67
Peak speed: 2800rpm
Total system weight: 614kg
GearV: 1/2/3/4/5/6
Speed ratio: 8.507/4.94/2.994/1.876/1.216/1
Motor Controller
Rated DC input current: 466A
Rated output current: 380A
Peak output current 690A
Cooling method : Water-cooled
Rated Condition Drive Efficiency: ≥98%
Input voltage range: DC400V(undervoltagepoint) ~DC750V(overvoltage point)
Output frequency range: 0.00~600Hz
Dimensions: 612mm*448.5mm*159mm
2. Electric Axle Powertrain Solution
|
E-Axle Solutions
|
PMSM Motor Parameters
|
|
|
|
|
|
|
||||||
|
Model
|
Rated/Peak Power(KW)
|
Rated/Peak Torque(N.m)
|
Peak Speed(rpm)
|
Rated Voltage(VDC)
|
Rated Axle Load(KG)
|
Max. Wheel Speed(rpm)
|
Gear Ratio
|
||||||
|
13/16T Distributed Axle
|
2x80/2x180
|
2x260/2x520
|
9500
|
540
|
13000
|
620
|
49.4/15.3
|
||||||
|
SEQ 13B
|
120-150/250
|
360/750
|
8500
|
/
|
13000
|
/
|
50.528/15.519
|
||||||
|
SEQ 16
|
120-150/250
|
285/450
|
8500
|
/
|
16000
|
/
|
111.532/53.967/29.045/1
|
||||||
|
HDE260
|
78/180
|
210/520
|
11000
|
438
|
13000
|
/
|
22.823
|
||||||

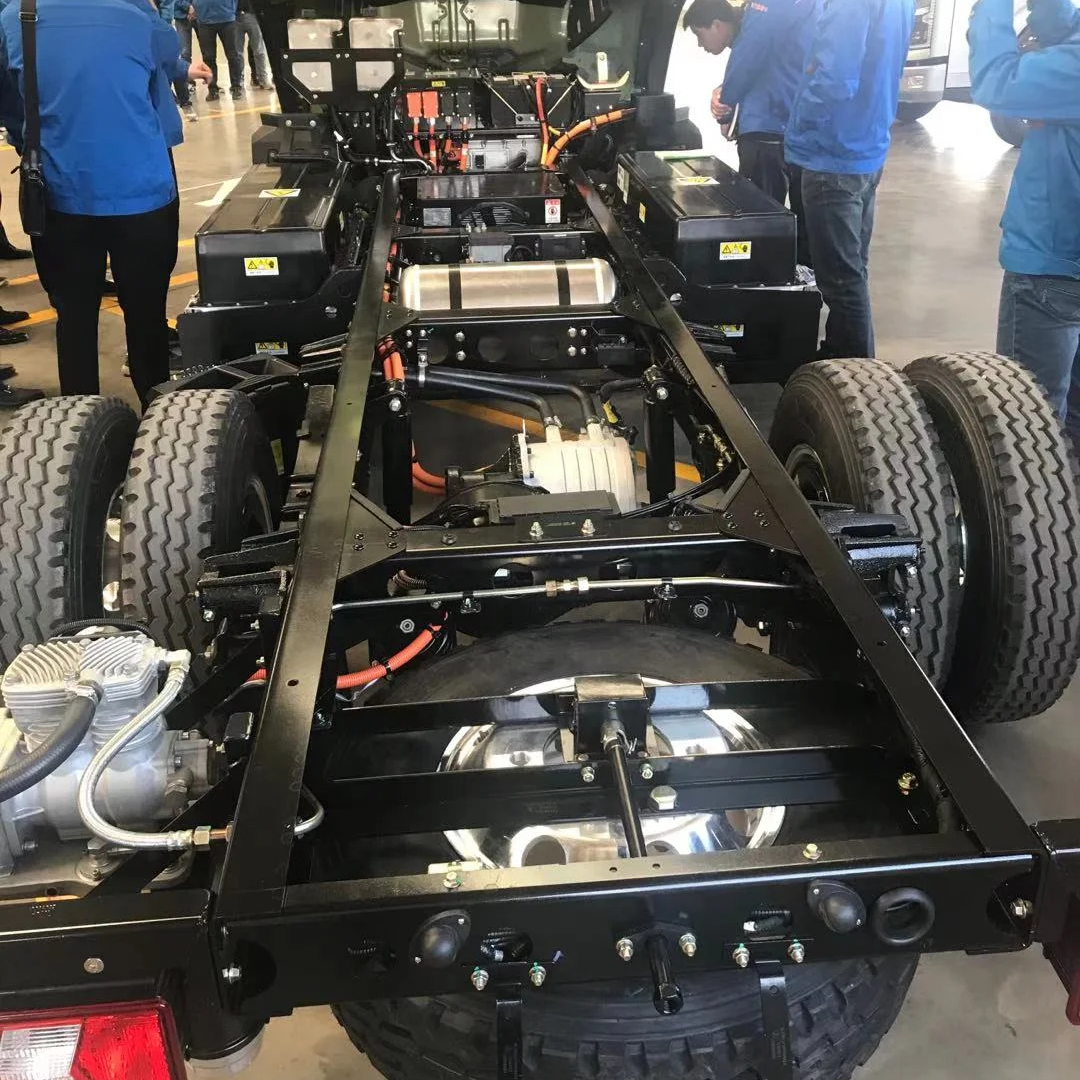

Project Cases
Factory Show
Battery System
1. EV Power Battery System
|
Parmameters
|
C Box
|
|
|
|
|
||||
|
Dimension
|
1060*630*240
|
1060*630*240
|
1060*630*240
|
1060*630*240
|
1060*630*240
|
||||
|
Battery cell
|
105Ah
|
173Ah
|
230Ah
|
280Ah
|
304Ah
|
||||
|
Series parallel number
|
2P48S
|
1P63S
|
1P48S
|
1P36S
|
1P36S
|
||||
|
System capacity
|
210Ah
|
173Ah
|
230Ah
|
280Ah
|
304Ah
|
||||
|
Rated system voltage
|
153.6V
|
202.86V
|
153.6V
|
115.2V
|
115.2V
|
||||
|
System power KWh
|
32.256KWH
|
35.095KWH
|
35.328KWH
|
32.256KWH
|
35.020KWH
|
||||
|
Parmameters
|
|
|
Power Battery System
|
|
|
||||
|
System Power
|
|
|
282.62kWh
|
350.21kWh
|
420kWh
|
||||
|
Matching Scheme
|
|
|
2P192S
|
2P180S
|
2P216S
|
||||
|
Rated Voltage
|
|
|
614.4V
|
576V
|
691V
|
||||
|
Rated Capacity
|
|
|
460Ah
|
608Ah
|
608Ah
|
||||
|
Battery Scheme
|
|
|
8 battery boxes
|
10 battery boxes
|
12 battery boxes
|
||||
|
Dimension
|
|
|
1060*630*240mm
|
1060*630*240mm
|
1060*630*240mm
|
||||
|
Heating Mode
|
|
|
Heating film/water cooling system
|
|
|
||||
2. Independent Battery Thermal Management System(BTMS)
Auxiliary Drive Products
|
Electric Hydraulic Power Steering Pump
|
|
|
||
|
Rated Voltage
|
380 VAC
|
380 VAC
|
||
|
Rated Power
|
3 kW
|
4 kW
|
||
|
Peak Power
|
6 kW
|
10.75 kW
|
||
|
Rated Current
|
7.5A
|
7.4A
|
||
|
Peak Current
|
15A
|
19.2A
|
||
|
Rated Speed
|
1500 r/min
|
1200 r/min
|
||
|
Peak Speed
|
/
|
1281 r/min
|
||
|
Rated frequency
|
100Hz
|
80Hz
|
||
|
Peak frequency
|
/
|
85.4Hz
|
||
|
Rated torque
|
19.1N.m
|
34.2N.m
|
||
|
Peak Torque
|
38N.m
|
85.6Nm
|
||
|
Torque coefficient
|
/
|
3.53N•m /A
|
||
|
Protection
|
IP 67
|
IP 67
|
||
|
Rated efficiency
|
92%
|
92%
|
||
|
Cooling Method
|
Air cooling
|
Air cooling
|
||
|
D axis inductance (20°C)
|
7.3mH
|
12.5mH
|
||
|
Electric Air Brake Compressor
|
|
|
||
|
Rated Power
|
3kw
|
4kw
|
||
|
Rated Voltage
|
300VAC
|
|
||
|
Rated Current
|
6.9A
|
8.6A
|
||
|
Rated Speed
|
1500rpm
|
|
||
|
Rated torque
|
19.1N •m
|
25.5Nm
|
||
|
Rated frequency
|
100Hz
|
|
||
|
D-axis inductance(20°C)
|
7.3mH
|
8.1mH
|
||
|
Roted displacement
|
250L/min
|
400L/min
|
||
|
Number of pole pairs
|
4
|
|
||
|
Rated pressure
|
1.0Mpa
|
|
||
|
Rated efficiency
|
92%
|
|
||
|
Protection class
|
IP67/H
|
|
||
|
Steering Pump/Brake Pump DCAC Controller
|
|
|
|
|||
|
Input voltage
(Low pressure) |
12VDC/24VDC (9V~36VDC)
|
|
|
|||
|
Input voltage
(High pressure) |
380VDC
(220V~500VDC) |
540VDC
(400V~750VDC) |
540VDC
(400V~750VDC) |
|||
|
Output Voltage Frequency
|
Three-phase 220VAC.50Hz
|
|
Three-phase 380VAC.50Hz
|
|||
|
Power(kW)
|
2.2/3.7/5.5KW
|
2.2/3.7/5.5KW
|
2.2/3.7/5.5KW
|
|||
|
Rated current(A)
|
9/13/25A
|
9/13/25A
|
5.5/9/13A
|
|||
|
Peak current(A)60s
|
18/26/50A
|
18/26/50A
|
11/18/26A
|
|||
|
DCDC Converter
|
|
|
|
|||
|
Input voltage
(Low pressure) |
|
12VDC(9V~18VDC)
|
24VDC
(15V~36VDC) |
|||
|
Input voltage
(High pressure) |
|
380VDC
(220V~500VDC) |
380VDC
(220V~500VDC) |
|||
|
|
|
540VDC
(400V~750VDC) |
540VDC
(400V~750VDC) |
|||
|
Output Voltage
|
|
14VDC
|
27.5VDC/27VDC
|
|||
|
Power(kW)
|
|
1.5KW
|
3KW
|
|||
|
Rated current (A)
|
|
107A
|
110A
|
|||
|
Peak current(A)60s
|
|
128A
|
125A
|
|||
|
Over curret protection(A)
|
|
128A
|
125A
|
|||
|
Under voltage protection(VDC)
|
|
195V
|
190V
|
|||
|
Control voltage
|
|
12VDC/24VDC
|
|
|||
|
Control method
|
|
Enable control
|
Default high level effective (high and low level can be configured)
|
|||
|
|
|
CAN control
|
DCDC、DCAC*2 Accept CAN control
|
|||
