1) 5 axis linkage control with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.
3) Combine fuctions of carving, milling, cutting, drilling, engraving into an organic whole for complex processing.
4) Blade can rotate 0°-360° and tilt 90° for any any direction's and any angle's chamfering cutting.
5) Working platform can tilt 85 degrees, easy for slabs loading.
6) Manual cuts available for simple machining.
7) Vacumm manipulator for workpieces handling.
8) Photo slab for nesting and avoiding defects.
9) Nesting manual / automatic to optimize slab surface usage
10) RTCP tool point tracking function ensure precision machining easy.
11) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
high
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Hualong
-
Weight:
-
5400 kg
-
Control system:
-
CNC from Italy
-
Head rotation:
-
0-360°
-
Blade tilt:
-
0-90°
-
Guide Rail:
-
Hiwin Linear Guide
-
Nesting:
-
manual or automatic
-
Workpiece handling system:
-
vacuum manipulator
-
Lubrication:
-
automatic
-
Worktable tilting degree:
-
85°
-
Max.liftable weight:
-
200 kg
Quick Details
-
Type:
-
CNC stone machine
-
Power:
-
16.35/20.35KW
-
Cutting thickness (max):
-
145/190mm
-
Production Capacity:
-
high
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Hualong
-
Weight:
-
5400 kg
-
Control system:
-
CNC from Italy
-
Head rotation:
-
0-360°
-
Blade tilt:
-
0-90°
-
Guide Rail:
-
Hiwin Linear Guide
-
Nesting:
-
manual or automatic
-
Workpiece handling system:
-
vacuum manipulator
-
Lubrication:
-
automatic
-
Worktable tilting degree:
-
85°
-
Max.liftable weight:
-
200 kg

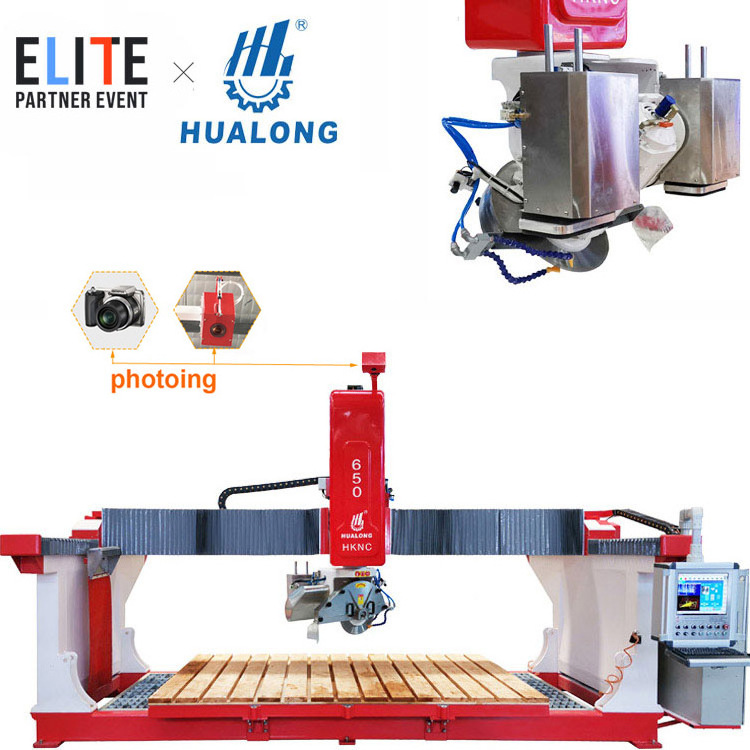

CNC Stone Machine
HKNC-560/650
is a numeric controlled
stone cutting and shaping centre
which utilizes a 5-axis moving ability to:
* make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting
* machine with the Core Tool such as drill, end mill & excavation wheel
* Incremental routing for sink cutting, profiling & engraving
Match these capabilities with the Servo Motor Mitering’s automatic 0-90 degree blade rotation, Italian ESA CNC system and photographing system to make any cut with ease. HKNC-650 has also been equipped with a vacuum manipulator for the automatic moving of slabs to optimise workpiece usage during the cutting process.
* make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting
* machine with the Core Tool such as drill, end mill & excavation wheel
* Incremental routing for sink cutting, profiling & engraving
Match these capabilities with the Servo Motor Mitering’s automatic 0-90 degree blade rotation, Italian ESA CNC system and photographing system to make any cut with ease. HKNC-650 has also been equipped with a vacuum manipulator for the automatic moving of slabs to optimise workpiece usage during the cutting process.
Main Features:
|
TECHNICAL DATA
|
|
|
|
|||
|
Model No.
|
|
HKNC-650
|
HKNC-560
|
|||
|
Diameter of saw blade
|
mm
|
ø350-ø650
|
ø350-ø560
|
|||
|
Max. cutting thickness
|
mm
|
190
|
145
|
|||
|
Max. cutting length
|
mm
|
3500
|
3300
|
|||
|
Max. lifting stroke
|
mm
|
500
|
250
|
|||
|
Dimension of working platform
|
mm
|
3500x2100
|
3300×2000
|
|||
|
Max. lifting weight by sunction cups
|
kg
|
200
|
200
|
|||
|
Power of main motor
|
kw
|
15
|
11
|
|||
|
Power of cutter frame motor
|
kw
|
1.15
|
1.15
|
|||
|
Power of crossbeam shifting motor
|
kw
|
1.15
|
1.15
|
|||
|
Power of lifting motor
|
kw
|
0.85
|
0.85
|
|||
|
Power of hydraulic station motor
|
kw
|
2.2
|
2.2
|
|||
|
Gross power
|
kw
|
20.35
|
16.35
|
|||
|
Water consumption
|
m3/h
|
2
|
2
|
|||
|
Dimension (L x W x H）
|
mm
|
6300x3600x3100
|
5700×3260×2760
|
|||
|
Gross Weight
|
kg
|
5800
|
5400
|
|||
Shipment for HKNC-560
Monoblock wholly loaded in a 20' FCL. Easy for unloading and installation at destination.
Application fields:
* 3D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art
* Street furniture
* Ventilated facades
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art
* Street furniture
* Ventilated facades
Control system -- CNC
Brand:
Esa
Original:
Italy
Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job
easy, perfect and high efficient.
easy, perfect and high efficient.
Digital Servomotor
Brand:
ESA
Original: Italy
A permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa’s CNCs,
creates a reliable controlling power for X, Y, Z, C and A axises
Original: Italy
A permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa’s CNCs,
creates a reliable controlling power for X, Y, Z, C and A axises
Laser Reticule Apparatus
Origin:
China
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Electro-spindles
of high quality controlled by an inverter allowing the adjustment of the nr. of revolutions from 0 to 6000 rpm, so
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
Linear Guide
Brand:
Hiwin
Original:
Taiwan, China
Famous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.
