Quick Details
-
Model Number:
-
XJ1 3-W-20
-
Voltage:
-
400V
-
Certification:
-
ISO and CE
-
Water Head(m):
-
30-90m
-
Flow Rate(m3/s):
-
0.048-0.251m3/s
-
Power Range:
-
10-100 KW
-
Speed Range:
-
1000- 1800 r/min
-
Blade Material:
-
Stainless Steel
-
Certificate:
-
ISO9001/CE/TUV
-
Color:
-
Customer's Requirements
-
Frequency:
-
50Hz/60Hz
-
Warranty:
-
1 Year
-
Keyword:
-
Pelton Water Turbine Generator
Quick Details
-
Power:
-
15kw
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
FORSTER
-
Model Number:
-
XJ1 3-W-20
-
Voltage:
-
400V
-
Certification:
-
ISO and CE
-
Water Head(m):
-
30-90m
-
Flow Rate(m3/s):
-
0.048-0.251m3/s
-
Power Range:
-
10-100 KW
-
Speed Range:
-
1000- 1800 r/min
-
Blade Material:
-
Stainless Steel
-
Certificate:
-
ISO9001/CE/TUV
-
Color:
-
Customer's Requirements
-
Frequency:
-
50Hz/60Hz
-
Warranty:
-
1 Year
-
Keyword:
-
Pelton Water Turbine Generator
Mini Micro Low Head Electrical Permanent Magnet 10kW 20kW 30kW Power Hydro Generator Turbine
Principle of Operation
The generator operates on the principle of electromagnetic induction. As water flows through the turbine, it spins the rotor of the generator, which is equipped with permanent magnets. The movement of the magnets past the stationary coils induces an electrical current, generating electricity. This process is highly efficient, requiring minimal maintenance and offering consistent power output.
Key Features
Compact Design: Permanent Magnet Micro Hydro Generators are designed to be compact and lightweight, making them suitable for installation in small rivers, streams, or irrigation canals.
High Efficiency: By utilizing permanent magnets, these generators eliminate the need for an external power source to create a magnetic field, resulting in higher efficiency and lower losses.
Low Maintenance: With fewer moving parts and no need for brushes or slip rings, these generators require minimal maintenance, reducing downtime and operational costs.
Environmentally Friendly: Micro hydro generators produce clean and renewable energy without emitting greenhouse gases or pollutants, making them environmentally friendly and sustainable.
Scalable: Permanent Magnet Micro Hydro Generators are scalable, allowing for the customization of system size and capacity to suit varying water flow rates and power requirements.
Off-grid Power Generation: These generators are ideal for off-grid or remote locations where access to traditional electricity grids is limited or nonexistent, providing a reliable and independent power source.
Pelton Water Turbine Generator Parameter:
| Model | Turbine Parameters | Generator Parameters | |||||
| Design head(m) | Under the design head | Design speed (r/min) | The power of generator | The runaway speed | Rated speed(r/min) | ||
| Flow rate (m3/s) | The output(kw) | ||||||
| XJ1 3-W-20/1 * 5 | 30 | 0.0482 | 10.9 | 1095 | 10 | 1000 | 1800 |
| 35 | 0.0521 | 13.4 | 1183 | 10 | 1000 | 1800 | |
| 40 | 0.0556 | 16.2 | 1265 | 15 | 1500 | 2200 | |
| 45 | 0.059 | 19.7 | 1340 | 15 | 1500 | 2200 | |
| 50 | 0.0621 | 23.4 | 1410 | 26 | 1500 | 2200 | |
| 55 | 0.0652 | 27.4 | 1480 | 26 | 1500 | 2200 | |
| 60 | 0.068 | 31.2 | 1550 | 26 | 1500 | 2200 | |
| 65 | 0.071 | 35.1 | 1610 | 40 | 1500 | 2400 | |
| 70 | 0.0735 | 38.8 | 1670 | 40 | 1500 | 2400 | |
| 75 | 0.076 | 42.5 | 1730 | 40 | 1500 | 2400 | |
| 80 | 0.0786 | 48.2 | 1790 | 40 | 1500 | 2400 | |
| 85 | 0.081 | 49.3 | 1840 | 55 | 1500 | 2400 | |

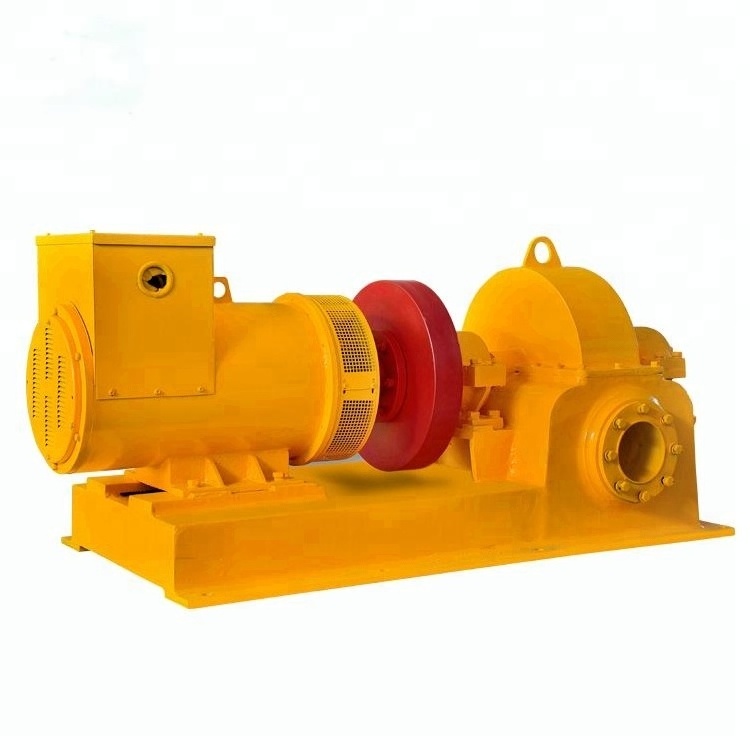

Pelton Water Turbine Generator Pictures:
