ETEK EKL1-63B rccb 63A 30mA 10KA 4P Type B RCCB ELCB RCD circuit breaker in stock

Type B RCCBs,

in addition to normal AC, can detect high frequency AC and pure DC earth leakage currents. Reducing the risk of fire
and/or electrocution through 4h automatic disconnection of the electrical supply relies on the selection of the correct type of
RCCB.

2.Application Example:

EV & PV installations, Frequency converters, UPS installations, High-frequency power converters, Building site power supply
cabinets.

3.Function

3.1 Control electric circuits.
3.2 Protect people against indirect contact and additional protection against direct contact.
3.3Protect installations against fire hazard due to insulation faults. Residual current circuit breakers are used in housing,
tertiary sector and industry.

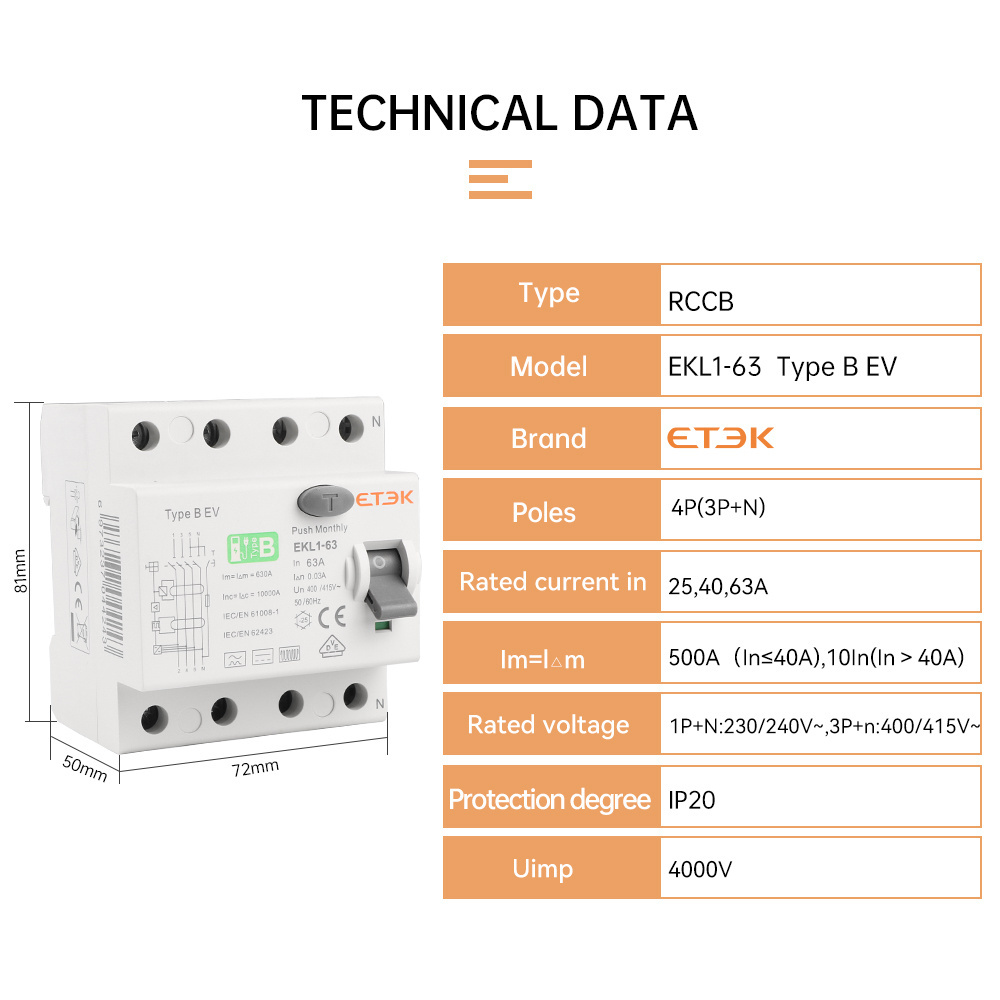

4.Technical Data

Mode: Electromagnetic
Type (wave form of the earth leakage sensed) ： B
Rated current In: 25,40,63,80,100A
Poles: 2P, 4P
Rated voltage Ue: 2P 240V~,4P 415V~
Insulation voltage Ui: 500V
Rated frequency: 50/60Hz
Rated residual operation current(I△n): 30mA
Rated residual making and breaking capacity (I△m)：500A(In≤40A),10In (In＞40A)
Short-circuit current Inc= I△c: 10,000A
Break time under I△n: ≤0.1s
Rated impulse withstands voltage (1.5/50) Uimp:4000V
Dielectric test voltage at ind.Freq. for 1min: 2.5kV
Electrical life: 2,000Cycles
Mechanical life: 4,000Cycles
