Quick Details
-
Brand Name:
-
AG
-
Standard or Nonstandard:
-
Standard
-
Name:
-
electronic mixing valve
-
Torque:
-
6Nm(Max.)
-
Cable Length:
-
90CM
-
Power supply:
-
220-230V Ac, 50-60HZ, 24VAc
-
Operating temperature:
-
--5° ; +50°C
-
Protection grade:
-
IP44
-
Rotation time:
-
60 - 120 sec
-
Rotation angle:
-
90°
-
Valve connection:
-
1/2"-3/4"-1"-1 1/4"-1 1/2"-2"
Quick Details
-
Port Size:
-
1/2"-2"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
JD-AOUA800
-
Brand Name:
-
AG
-
Standard or Nonstandard:
-
Standard
-
Name:
-
electronic mixing valve
-
Torque:
-
6Nm(Max.)
-
Cable Length:
-
90CM
-
Power supply:
-
220-230V Ac, 50-60HZ, 24VAc
-
Operating temperature:
-
--5° ; +50°C
-
Protection grade:
-
IP44
-
Rotation time:
-
60 - 120 sec
-
Rotation angle:
-
90°
-
Valve connection:
-
1/2"-3/4"-1"-1 1/4"-1 1/2"-2"
Product Application

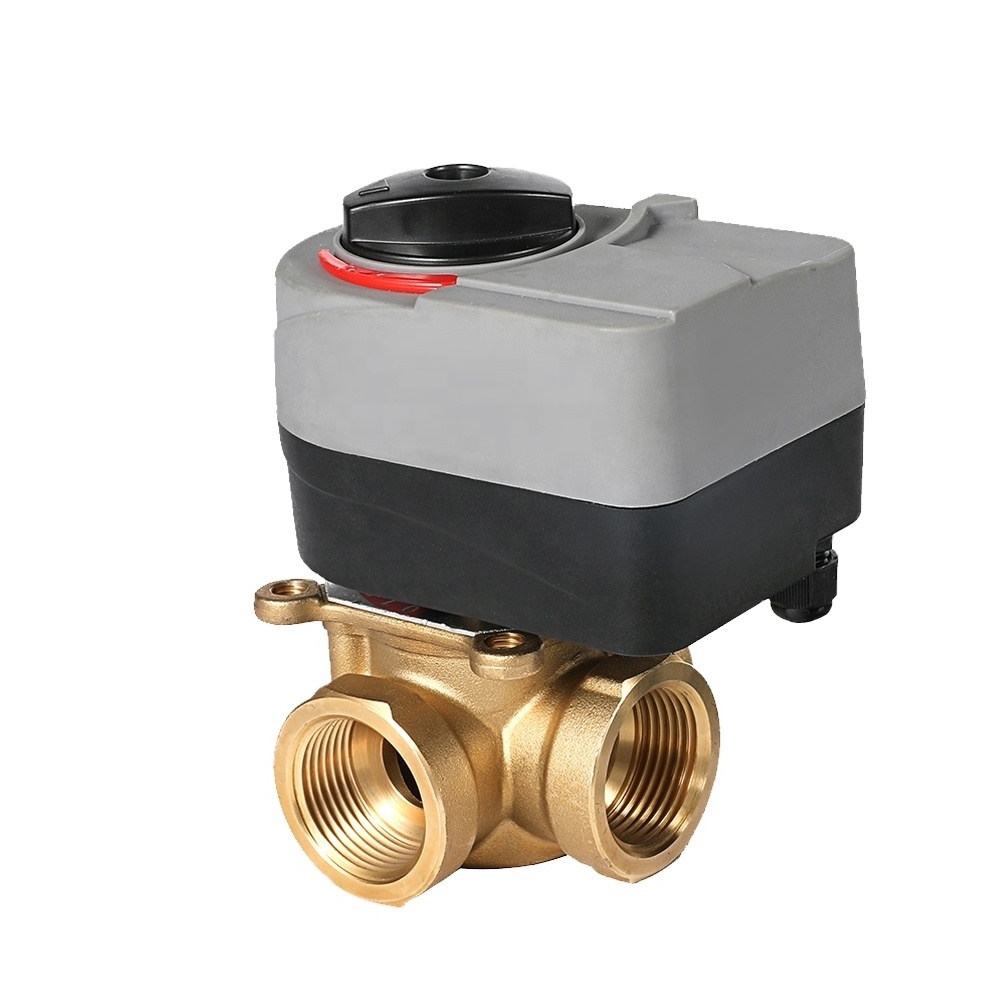

Actuators Rotmix are compact and simple heating controllers that are installed directly onto the mixing valve and diverting valve.with function on/off.Compact design,fast installation, ease of use and reliability.
|
Technical Data
|
|
|
|
|||
|
Torque
|
|
6Nm(Max.),
|
|
|||
|
Cable Length
|
|
90CM
|
|
|||
|
Power supply
|
|
220-230V Ac, 50-60HZ, 24VAc
|
|
|||
|
Absorption
|
|
4 VA
|
|
|||
|
Operating temperature:
|
|
--5° ; +50°C
|
|
|||
|
Protection grade
|
|
IP44
|
|
|||
|
Rotation time
|
|
60 - 120 sec.
|
|
|||
|
Rotation angle
|
|
90°
|
|
|||
|
Type of command
|
|
3 point
|
|
|||
|
Valve connection
|
|
1/2"-3/4"-1"-1 1/4"-1 1/2"-2"
|
|
|||
Main Features
Actuator is mounted directly on the shaft of the valve body and is fixed with one screw. Fasteners supplied with the actuator. The mounting position of the actuator can be selected with step 90 degrees due to its small size and compact shape. Rotmix is suitable for most applications, including a pump block in a insulation. The angle of rotation is limited to 90 degrees. The actuator is connected to the valve by the sleeve (included in the package).
Including mounting set forEURO Standard mixing valves
ACASO (TERMOMIX), BARBERI, FER TERM, PAW,EURONORM, ESBE, IMP, DANFOSS, BESSER,SELTRON, LOVATO, TUXHORN, STRAWA, CIMBERIO
