Quick Details
-
Mounting Type:
-
OEM
-
Description:
-
Full stainless-steel construction, compact size, High Accuracy Pressure Transmitter
-
Manufacturing Date Code:
-
Support customization
-
Model Number:
-
KFG-SPT21Z
-
Type:
-
Pressure Transmitter
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Kofig
-
Theory:
-
Pressure sensor
-
Output:
-
4~20mADC. 0-5V. RS485
-
Accuracy:
-
±0.05%FS.±0.1%FS. ±0.25%FS
-
Range(FS):
-
-1...0~0.1...1000bar
-
Stability:
-
≤±0.2%FS/year
-
Compensated temp:
-
-10~70℃
-
Operation/storage temp:
-
-30~80℃
-
Power supply:
-
10~28VDC
Quick Details
-
Use:
-
All
-
Series:
-
Universal pressure transmitter
-
Features:
-
OEM
-
Mounting Type:
-
OEM
-
Description:
-
Full stainless-steel construction, compact size, High Accuracy Pressure Transmitter
-
Manufacturing Date Code:
-
Support customization
-
Model Number:
-
KFG-SPT21Z
-
Type:
-
Pressure Transmitter
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Kofig
-
Theory:
-
Pressure sensor
-
Output:
-
4~20mADC. 0-5V. RS485
-
Accuracy:
-
±0.05%FS.±0.1%FS. ±0.25%FS
-
Range(FS):
-
-1...0~0.1...1000bar
-
Stability:
-
≤±0.2%FS/year
-
Compensated temp:
-
-10~70℃
-
Operation/storage temp:
-
-30~80℃
-
Power supply:
-
10~28VDC
Product Description
If you are not sure which model product is suitable for the applicable scene, please contact us , OEM ODM accepted, free
professional and quick response suggestions For more information, please click to contact us at any time!

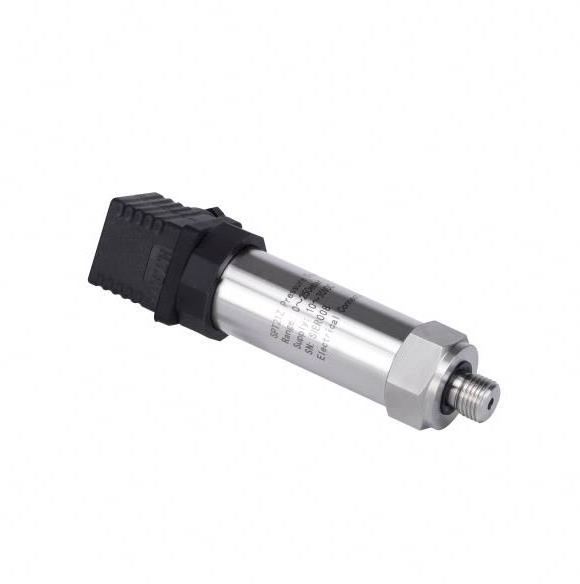

SPT21Z High Accuracy Pressure Transmitter
Features
4～20mADC 2-wire current output
Digital compensation and non-linearity correction technicis
-10℃～70℃ digital wider temperature compensation
RS485 communication interface
Netting available
Full stainless-steel construction, compact size, light weight
Special requirement available
Digital compensation and non-linearity correction technicis
-10℃～70℃ digital wider temperature compensation
RS485 communication interface
Netting available
Full stainless-steel construction, compact size, light weight
Special requirement available
Introduction
SPT21Z pressure transmitter is the highly accurate and stable intelligent pressure transmitter. It uses digital
temperature compensation, non-linearity correction technics and the most advanced transmitter production
technique, the whole product has compact size, high accuracy, light weight and wider pressure range, can be
used for flow pressure precise measurement. The product will instead the 2-wire working 4~20mADC output
analogous signal.
SPT21Z pressure transmitter is the highly accurate and stable intelligent pressure transmitter. It uses digital
temperature compensation, non-linearity correction technics and the most advanced transmitter production
technique, the whole product has compact size, high accuracy, light weight and wider pressure range, can be
used for flow pressure precise measurement. The product will instead the 2-wire working 4~20mADC output
analogous signal.
Application site
The products are widely used in coal, petroleum, medicine, civil explosive, chemical, electric power, metallurgy, light industry, food, water conservancy, military industry and other fields.
● industrial process control
● industrial process control
● liquid level measurement
● gas and liquid pressure measurement
● pressure detection and calibration instrument
● pressure detection and calibration instrument
● pressure switch and hydraulic system
● well monitoring
● well monitoring
● refrigeration equipment and air conditioning system
● fire Internet of things
