Quick Details
-
Ink Type:
-
eco
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Galaxy
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
L3,140 x W1,050 x H685mm
-
Weight:
-
381kG(grossKG
-
Core Components:
-
board
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Eco solvent printer with DX5
-
Max Print Width:
-
1.6/1.8/2.1/2.5/3.2m avaible
-
printing solution:
-
1440dpi
-
head:
-
DX5 head
-
ink type:
-
original galaxy Eco solvent ink ,friendly
-
ink color:
-
C,M,Y,K
-
gross weight:
-
381KG
-
net weight:
-
204KG
-
packing size:
-
L3,140 x W1,050 x H685mm
Quick Details
-
Print Dimension:
-
1.6/1.8/2.5/3.2m
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
eco
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Galaxy
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
L3,140 x W1,050 x H685mm
-
Weight:
-
381kG(grossKG
-
Core Components:
-
board
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Eco solvent printer with DX5
-
Max Print Width:
-
1.6/1.8/2.1/2.5/3.2m avaible
-
printing solution:
-
1440dpi
-
head:
-
DX5 head
-
ink type:
-
original galaxy Eco solvent ink ,friendly
-
ink color:
-
C,M,Y,K
-
gross weight:
-
381KG
-
net weight:
-
204KG
-
packing size:
-
L3,140 x W1,050 x H685mm
GALAXY 1.8M / UD-161LC/UD-181LC/UD-211LC Eco solvent inkjet printer for Flex banner printing machine
Product type: Eco solvent printer,
Product name: Galaxy eco solvent printer UD181LC
Print head: 1pc DX5 print head
Maximum print width: 1,800mm
Type of ink: Galaxy eco solvent ink, eco solvent ink dx5,
Condition: Brand New
|
MODEL |
UD-181LC |
|
|
Printhead |
DX5 |
|
|
Number of printhead |
1 Head |
|
|
Maximum print width |
1,800mm |
|
|
Print Speed (m2/h) |
Print mode |
Standard output(m2/h) |
|
D |
4 PASS 16 |
|
|
S |
6 PASS 11 |
|
|
Q |
8 PASS 9 |
|
|
HQ |
8 PASS 9 |
|
|
BL |
12 PASS 5 |
|
|
Ink |
Type: |
Water based / Eco Solvent Ink |
|
Color : |
4 Color (C,M,Y,K) |
|
|
Capacity: |
1L per Main Tank of Each Color |
|
|
Ink Supply System |
Auto Ink Supply System |
|
|
Media Width |
Maximum 1,880mm |
|
|
Media Type |
Vinyl, Polyester, Flex, Back-lit Film, PS Board, KT Board, PVC Board, etc. |
|
|
Auto Media Feeding System |
Equipped (Max. Media Weight 25kg) |
|
|
Auto Cleaning System |
Anti-clogged Flash Function & Capping System |
|
|
Pre-heating & Drying System |
Equipped |
|
|
Clamp |
Equipped |
|
|
Print Interface |
USB 2.0 |
|
|
Printhead Height |
2 to 10 mm from Media |
|
|
RIP Software |
Ultraprint, Maintop, Photoprint, Wasatch, Ergosoft |
|
|
Input Power |
AC 220V,50Hz/60Hz |
|
|
Machine Dimension / N.W |
L3,080 x W990 x H1,260mm / 204KG |
|
|
Package Dimension / G.W |
L3,140 x W1,050 x H685mm / 381KG |
|
Advantages for Galaxy eco solvent printer:
1. Printer adopt DX5 printheads, resolution high, reach 1440dpi.
2.Printer adopt automatic cleaning and capping system which makes the operation and
maintenance very convenient.
3. The X and Y direction both use AC servo motor which ensure the stable and durable.
4. New Technique of constant pressure ink supply system, which inserted ink bottle directly,
it is more friendly, humanize, also make the ink flow more fluent.
5. Carriage height is adjustable, with max printing height of 10mm, which can print PS
Board and KT board directly.
6. Three directions heating system, front, middle, back individual, improve the printing quality.
7. There is not any space between rails and bearings, let the carriage move more fluent, with
more low noise, low resistance, low vibration, which unsure prolong the working life of printer.
8. Fixed feeding structure which is compatible with 2 and 3 inch paper core. Equipped with
take-up balancing bar which is flexible and easy to use.
9. Friendly user control panel, bring you happy moon.
10.Equipped platen LED lamp for clearly observing the print quality.

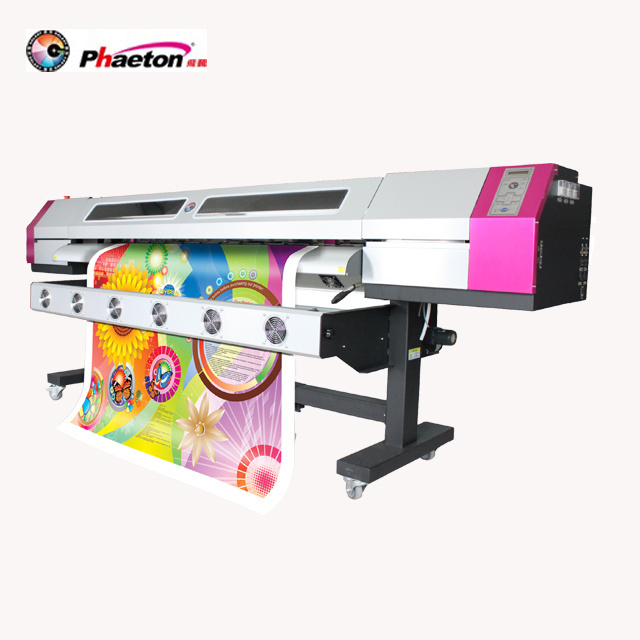

Photos showing:
Eco solvent printer with DX5
packing size: L3140mm X W1050mm X H685mm (seperate feet)
gross weight: 381KG
we have enough stock which can statify with our customer need
1. Every set solvent printer, eco solvent printer will come with English user manual. The user manual guide well how to install the machine, and how to maintain machine in very details.
2. Our engineer full of experience, and they are english speaking, not need to worry about the communication, you can talk with engineer directly, solve your problem high efficiency.
3. You are alway welcome to trip to China, welcome to feel us, if you visit china, our company very please to offer a free training of solvent printer, eco solvent printer.
4. We also can send our engineer come to serve, customers need to pay engineer’s tickets, foods, hotel, and printer install or repair charge.
Note : before you place an order, customer can ask any technology problem, we can reply to you in time,
in addition, we aslo provide extra technology guide and parts, even if customer's machine is not from ours
