Quick Details
-
Optical Resolution:
-
752 x 480
-
Scan Speed:
-
n/a
-
Brand Name:
-
Alacrity
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
300g
-
Size:
-
165*75*90mm
-
Input voltage:
-
5V1A
-
material:
-
ABS
-
stand-by current:
-
20mA
-
Scan angle:
-
1 +/- 30 degrees
-
print contrast:
-
≥20%
-
oblique viewing angle:
-
2+/-65°
-
Scanning accuracy:
-
≥5mil/0.1mm(PCS90%,CODE39)
-
Ambient light resistance:
-
100,000Lux Max
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CMOS
-
Max Paper Size:
-
n/a
-
Optical Resolution:
-
752 x 480
-
Scan Speed:
-
n/a
-
Brand Name:
-
Alacrity
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
300g
-
Size:
-
165*75*90mm
-
Input voltage:
-
5V1A
-
material:
-
ABS
-
stand-by current:
-
20mA
-
Scan angle:
-
1 +/- 30 degrees
-
print contrast:
-
≥20%
-
oblique viewing angle:
-
2+/-65°
-
Scanning accuracy:
-
≥5mil/0.1mm(PCS90%,CODE39)
-
Ambient light resistance:
-
100,000Lux Max

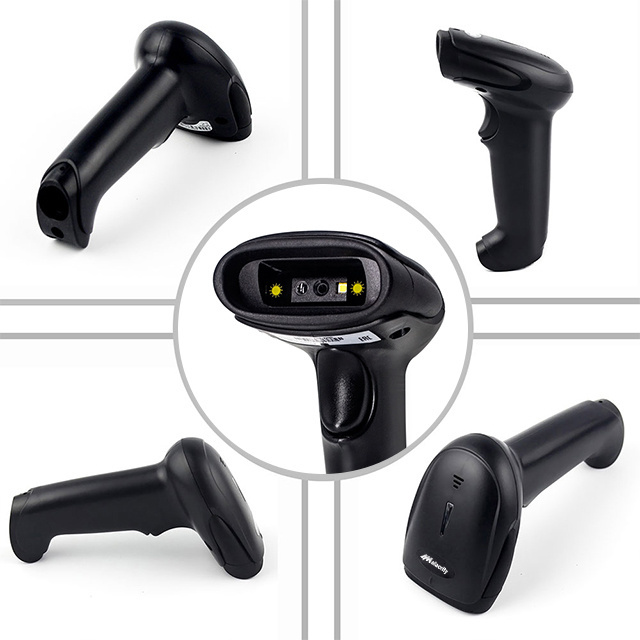

MJ-6706DS
is a general-purpose handheld 2D barcode scanner that combines industry-leading image sensing technology, lighting, and optical technology to easily read ordinary 1D barcodes, 2D barcodes, and barcodes on display screens.
Externally reinforced with waterproof and dustproof functions, achieving an industrial grade of IP-54, particularly suitable for use in humid and dusty environments; Manual triggering/continuous scanning/self sensing (optional), extremely comfortable operating feel; Discover, configure, and upgrade devices from a remote central location; Support multiple RS232/USB interfaces to ensure compatibility with your existing and future terminals; 1.8M anti drop impact, stable structure, simple appearance, meeting the requirement of 24-hour long-term use; A smooth and coordinated appearance can reduce user fatigue, make operation extremely comfortable, and significantly improve work efficiency;
This product can be used in the application scenarios of electronic payment such as cashier, Alipay WeChat, and supermarket logistics. Exquisite exterior design and integrated engineering design provide users with an extremely comfortable and convenient user experience.
Supports existing Microsoft mainstream Windows XP, 7.0, 8.0, Wince, and Mobile operating systems
Silicone+plastic anti drop industrial design, can withstand drops from a height of 1.5 meters without damage.
| physical parameters | |
| Weight | 300g |
| Size | 165*75*90mm |
| Transmission module | USB |
| Input voltage | 5V1A |
| material | ABS |
| stand-by current | 20mA |
| reading mode | Manual mode, |
| Interface support | USB |
| Scanning performance parameters | |
| Scan angle | 1 +/- 30 degrees |
| print contrast | ≥20% |
| oblique viewing angle | 2+/-65° |
| Scanning accuracy | ≥5mil/0.1mm(PCS90%,CODE39) |
| oblique viewing angle | 3+/-60° |
| Support symbology | UPC/EAN,with supplemental code UPC/EAN, CODE128,UCC/EAN128, CODE39,CODE39FULLASCII,CODE128FULLASCII, CODABAR,INTERLEAVED2OF5,CODE93,MSI,CODE11, ISBN,ISSN,China Postal Code,ETC |
| Tips | LED indicator light |
| Power Adapter | Output: DC5V, 1A Input: AC100~240V, 50~60Hz (optional) |
| current | 55mA±5% working current); 35mA (standby current) |
| Ambient light resistance | 100,000Lux Max |
| Environmental parameters | |
| operating temperature | -20℃ to 50℃ |
| storage temperature | -40℃ to 70℃ |
| Relative humidity | 20% to 95% (non-condensing state) |
| High and low temperature test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High temperature | 60℃ |
| Low temperature | -20℃ |
| Transport Vibration Test | 10H@125RPM |
| drop height | Dropped to the ground several times from a height of 1.8 meters |
