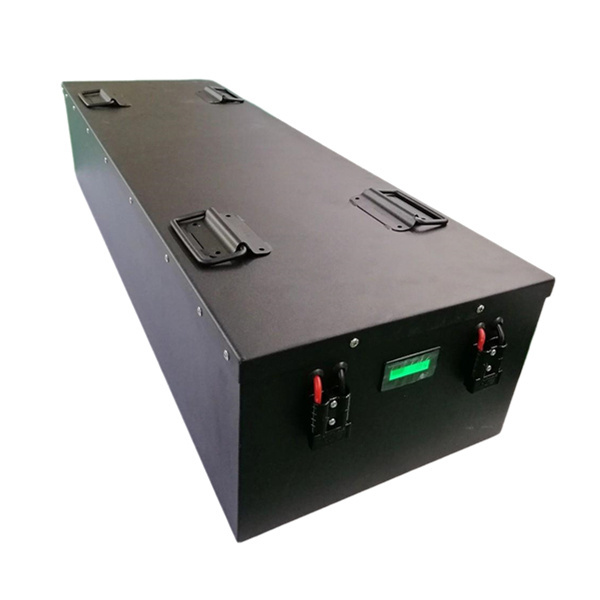

600V EV Lithium Battery Pack for Electric Bus Electric Tractor Battery

600V EV Lithium Battery Pack for Electric Bus Electric Tractor Battery

FOB Reference Price: Get Latest Price

≥2 Pieces

US $85000

≥50 Pieces

US $84500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: CB600200

Battery Size:: Prismatic

Place of Origin:: Anhui, China

Weight:: 4300KG

The charging ratio:: 0.5C

The discharge rate:: 0.5C

Electric Energy:: 120000 Wh

Size:: Customized

25℃@ 80% DOD:: ≥4000 times

Component:: lithium iron phosphate

OEM/ODM:: Available

Warranty:: 3years

Chargeable:: Yes

Certification:: CE UN38.3 MSDS

Quick Details

Anode Material:: LFP

Application:: BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts, Industrial Tractor

Brand Name:: COMBINE

Model Number:: CB600200

Battery Size:: Prismatic

Place of Origin:: Anhui, China

Weight:: 4300KG

The charging ratio:: 0.5C

The discharge rate:: 0.5C

Electric Energy:: 120000 Wh

Size:: Customized

25℃@ 80% DOD:: ≥4000 times

Component:: lithium iron phosphate

OEM/ODM:: Available

Warranty:: 3years

Chargeable:: Yes

Certification:: CE UN38.3 MSDS

COMBINE possesses technologies and experiences to provide fully-integrated products & solutions for lithium-ion based green energy applications, including Medical Device, E-mobility, Energy Storage System, Defense & Security, Industrial Electronics and many other applications.

Every battery COMBINE assembles is 100% tested for functionality before it is submitted to final inspection. This ranges from a voltage and polarity test for batteries to pull testing for any battery with wire leads and connector, and to a charge / discharge system test for rechargeable batteries.

600V Industrial Electric Tunnel Tractor Battery Pack System

New Energy, New Solutions!

No More Water Maintenance

Simplify your operations by no longer needing to manage watering schedules for your batteries. This is not only a huge time saver,

but allows operators to focus on moving product rather than maintaining battery maintenance schedules.

Longer Lasting

The flat discharge curve and high sustained voltage mean forklifts run faster on each charge, without getting sluggish. The

overall battery life lasts 2x than that of lead-acid alternatives, thus providing significant financial savings.

Lower Overal Costs

Lithium from COMBINE Power reduces costs in multiple ways, including lower energy bills to run your equipment, battery packs that last 5 - 10 years instead of 1 - 3 years, improved productivity by not having to regularly swap batteries, and more.

Fast Charge On Demand

All you need is one battery per truck, even with 2- or 3-shift operations! No more battery rooms. No ventilation needed while

charging. Quick opportunity charge means your crew can simply plug in the equipment during breaks, then get back to work.

PHYSICAL SPECIFICATIONS

Group Size	BMS	Protect	Length Inch (mm)	Width Inch (mm)	Height Inch (mm)	Weight Lbs（kg）
2P188S	INCLUDED	IP65	OEM	OEM	OEM	9900(4500）

ELECTRICAL SPECIFICATIONS

Nominal Voltage	Nominal Capacity	Module	Energy	Continuous Charge Current	Continous Discharge Current	Self Discharge
600V	200AH	Yes	120KWH	0.5C	0.5C	<1% per Month

HOW COMBINE NEW ENERGY TECHNOLOGY MAKES THE DIFFERENCE

LITHIUM-ION CELLS

Combine has optimized the safety and performance of lithium-ion for material handling equipment and other Industrial applications.
Our cells are UL/CE tested, and use one of the safest and most stable lithium chemistry available.

ADVANCED LITHIUM-ION TECHNOLOGY

* Higher sustained power, with no voltage drop-off

* Fast charge

* Safe – No acid spills or combustible gas emissions

* Over 3500 cycles at 80% depth of discharge

* Up to 45% lower cost – fewer replacements needed

* No battery swapping required for multi-shift applications

* Maintenance Free

* Typically uses 40% less energy

BATTERY MANAGEMENT SYSTEM (BMS)

The integral BMS was designed and developed in-house, assuring a fully optimized solution for demanding material handling applications. The BMS software ensures the battery provides peak performance at all times when in operation (even at low charge levels), delivers longer run times between charges, and maximizes the total battery lifespan. All Power batteries are Solid Built!

FULL INTEGRATION

Our Forklift Battery Packs are capable of integrating with different equipment over CAN. This provides a seamless transition for operators when switching to lithium-ion.
Integration features include:
* Accurate battery discharge indicator
* Device Errorcode (DEC) reporting
* Early warning for safe shutdown

OPTIONS

Integrated heaters for cold temperature applications

Combine’s Battery Packs are 100% inspected before delivery include but not limited to Battery Capacity, Pressure Difference, Temperature Difference and Temperature rise. The test could confirm function of the battery, battery welding conditions, connection between the cells and BMS function.

Cell/module thermal simulation

Series and parallel mode combined into the lithium battery PACK, the voltage and capacity of lithium

battery PACK can be combined accordingly

Experience the Difference

Learn why customers choose to run their forklifts using lithium-ion from Combine Tech.

Capacity & Cycle Life

One of the most important benefits of Combine’s choice of lithium is the dramatic increase in energy density over current lead-acid battery solutions. Combine uses Lithium-Iron-Phosphate (LiFePO4) which has a specific energy of ~110 watt-hours per kilogram, compared to lead-acids ~40 watt-hours per kilogram. What does this mean? Our batteries can be ~1/3 the weight for similar amp-hour ratings.

Speed & Efficiency

Combine’s lithium batteries are fast. They can be fast charged completely and can handle ultra-fast charging up to 1C (a full charge in 1hour). Lead-acid can only be fast-charged up to 80% after which charging current drops dramatically.
