Quick Details
-
Brand Name:
-
FS THERMO
-
Voltage:
-
DC 24V, DC 24V
-
Dimension(L*W*H):
-
420x90x220mm
-
Weight:
-
4.0 KG, 4.0KG
-
Power:
-
550watt
-
Model:
-
FSCH027Z24B
-
Refrigerant:
-
R134A
-
Cooling capacity:
-
200~600W (680~2046Btu)
-
Compressor:
-
Mini DC inverter rotary compressor
-
Motor Type:
-
BLDC
-
Application:
-
cooling electronics component,game computer etc.
-
Dimension:
-
420X90X220mm
-
Unit type:
-
complete cooling system cooling liquid
Quick Details
-
Core Components:
-
compressor
-
Condition:
-
new
-
Place of Origin:
-
Zhejaing ,china(mainland)
-
Brand Name:
-
FS THERMO
-
Voltage:
-
DC 24V, DC 24V
-
Dimension(L*W*H):
-
420x90x220mm
-
Weight:
-
4.0 KG, 4.0KG
-
Power:
-
550watt
-
Model:
-
FSCH027Z24B
-
Refrigerant:
-
R134A
-
Cooling capacity:
-
200~600W (680~2046Btu)
-
Compressor:
-
Mini DC inverter rotary compressor
-
Motor Type:
-
BLDC
-
Application:
-
cooling electronics component,game computer etc.
-
Dimension:
-
420X90X220mm
-
Unit type:
-
complete cooling system cooling liquid

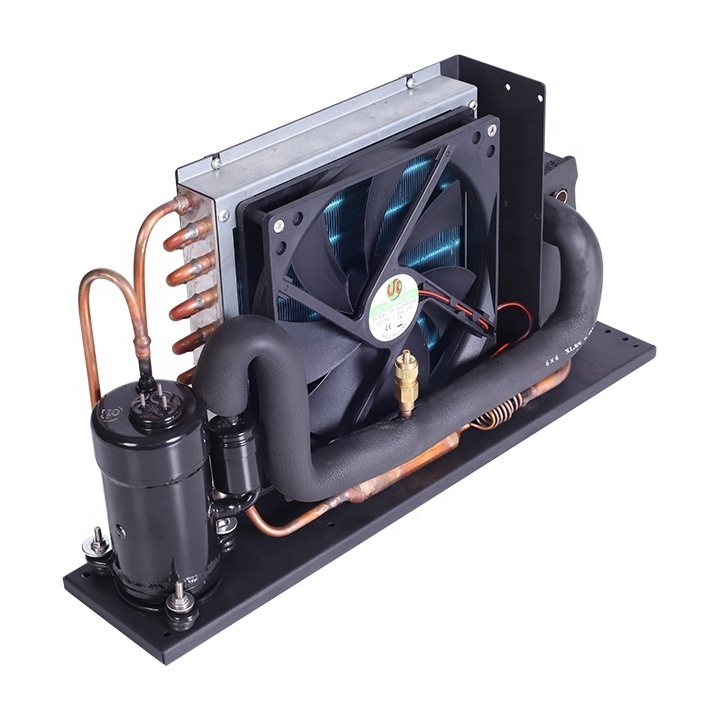

High quality r134a dc 24v 600w mini water chiller module unit for cooling game computers
|
Name |
Mini refrigeration liquid chiller module unit |
|
Brand |
FS THERMO |
|
Model |
FSCH0 27Z24B |
|
R efrigeration parts |
M i ni roatr y compressor &driver,mini condenser,axial flow fan,plate evaporator,capillary. |
|
Voltage |
DC 24v |
|
Size |
420X90X220 mm |
|
N et weight |
4.0 kg |
|
Cooling capacity |
200 ~ 600 W |
|
MOQ |
1Piece |
|
Certification |
ISO ,CE |
|
Payment |
T/T 30% deposit,70% balance before shipment |
|
Packing |
Standard save packing or according to client's requirement |
|
Transportation |
By sea/air or as request |
|
Delivery port |
Ningbo PORT/Shanghai PORT |
|
Delivery Time |
15- 20 days after receipt of T/T 30% deposit |
|
Business Type |
Professional DC rotary compressor factory /manufacturer |
|
Producttion Capacity |
1 000 units per month |
|
Place of Origin |
zhejiang China (Mainland) |
Product show
Characteristic
1,smallest size,most compact,extremely slim
2,low height
3,light weight
4, high COP
5,low energy consumption
6 , environmental-friendly refrigerant R134a
7 , Low noise and vibration
8 , High reliability
9, high efficiency tiny rotary compressor
10,Compressor overcurrent protection
11, Wide Evaporating temperature range
12,hybrid power source as DC electrical,battery,solar
13,precision control
14,variable application
Parameter sheet
|
Model Name |
FSCH027Z24B |
|
DC Compressor Model |
FSQ A027Z24L |
|
Refrigerant |
R134 a |
|
Rated Voltage |
24 V |
|
Voltage Range |
18 V – 30 V |
|
Temperature Range (evap.) |
- 23 C ~ 24 C degree |
|
Work Current Range |
2 ~ 16 A |
|
Cooling Capacity |
200 W~ 550 W |
|
Evaporator |
Stainless steel plate heat exchanger |
|
Condenser |
Fin tube |
|
Fan Voltage |
24 V @3 5 00rpm |
|
Noise |
≤ 4 8dB(A) |
|
Vibration |
≤0.65 m/s2 |
|
N.W |
4.kg |
|
Motor Speed |
18 00 ~ 4 8 00rpm |
LXWXH=420x90x220mm
Series Model
Cooling system working principle:
Main Application
Company Info
FS thermo is a HVAC Pioneer company who focus on the heating and cooling products designing and marketing more than 15 years. We have serviced and cooperated with more than 100 customers in the global market. Our main product is pioneer heat exchanger, compressor, and integrated refrigeration unit, special air conditioner unit and custom thermo solution, for example, idle air conditioner and heating, mini refrigeration unit, low & ultra-low temperature freezing unit , dc solar solution air conditioner & refrigeration ,etc. We always providing and invest latest HVAC&R technology to enhance the customer experience and help us become a better business partner to you.
