Quick Details
-
Product Name:
-
Aluminum Mini-ITX Case
-
Applicate:
-
Computer
-
Psu:
-
Atx
-
Size:
-
A4 size
-
Installation:
-
DIY
-
Motherboard Supporting:
-
M-ITX
-
Color:
-
Silver
-
Dimensions:
-
200*109*25.3mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Braveman zzaw
Quick Details
-
Front Ports:
-
usb
-
Material:
-
Aluminum Alloy
-
Style:
-
With Power Supply, With Side Panel Window
-
Product Name:
-
Aluminum Mini-ITX Case
-
Applicate:
-
Computer
-
Psu:
-
Atx
-
Size:
-
A4 size
-
Installation:
-
DIY
-
Motherboard Supporting:
-
M-ITX
-
Color:
-
Silver
-
Dimensions:
-
200*109*25.3mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Braveman zzaw

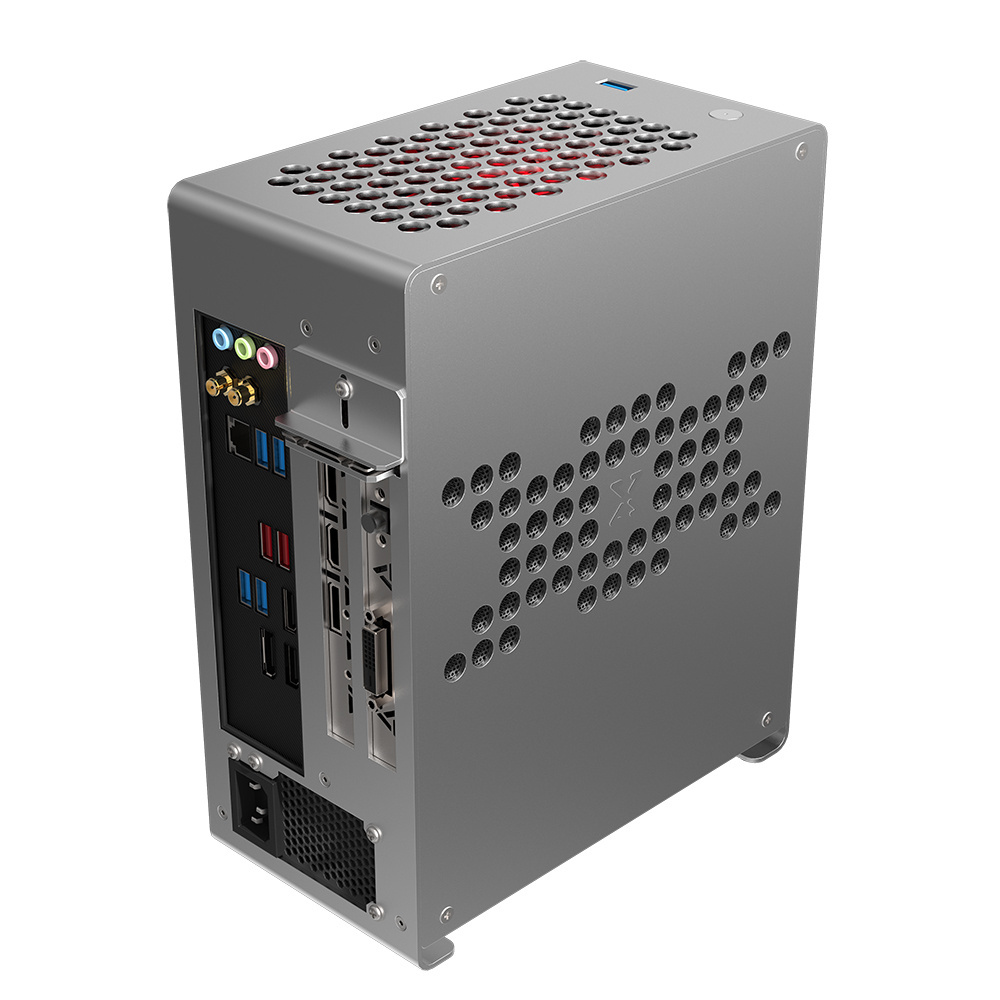

Super Mini A4 Size Aluminum Alloy Computer Desktop Chassis Micro Table ITX PC Case for Gaming Office Home Personal Use
Hard Ware Supporting Specifications:
1. Support ITX motherboard 170*170mm
2. Support dual-slot graphics card length 205*150*41mm
3. Supports 2 2.5-inch hard disks at the bottom, and the graphics card can replace 2.5-inch or 3.5-inch hard disks
4. Support FLEX-1U power supply 170*82*41mm
5. Support one 9015 or 8015 fan at the top
6. Support ultra-thin down-pressure radiator within 43mm height
7. MemoryMaximum height 45mm (under the premise of not conflicting with the CPU cooler)
Case Parameters:
Case size: 200 * 109 * 253mm
Case Capacity: 5.5L
Material: AL-MG high strength magnesium aluminum alloy
Case Color: Anodized silver
Frame t hickness: 2mm
Other components thickness: 1.5mm
2 Side panel thickness: 2mm
Cooling method: air cooling (Top 8015 or 9015 fan*1, Top/bottom/both sides heat dissipation holes)
Switch wire: single USB3.0 wire
Net weight: about 1. 1 KG
Gross weight : 1 .6KG (including package)
Package Size: 185*280*335mm
Package Including:
Case x 1pc
Switch Wire x 1pc
Graphics card e xtension Wire x 1pc
Accessories Box x 1pc
Case Parameters:
| size | 200*109*253mm |
| Case Capacity | 5.5L |
| Material | AL-MG high strength magnesium aluminum alloy |
| Case Color | Anodized silver |
| Frame thickness | 2mm |
| Other components thickness | 1.5mm |
| 2 Side panel thickness | 2mm |
| Switch wire | single USB3.0 wire |
| Net weight | about 1.1KG |
| Gross weight | 1.6KG(including package) |
|
Certificate
|
RoHS, CE, FCC |
|
Package Size |
185*280*335mm |
The whole machine is made of high-strength AL-MG aluminum-magnesium alloy sheet,
and the integrated seamless shell makes A1 more refined
