- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Omenfirst
-
Model Number:
-
NF1024K-P24-2S-M
-
Place of Origin:
-
Guangdong, China
-
PoE Port:
-
1-24 port supports PoE
-
PoE type:
-
IEEE802.3af/at
-
Console Port:
-
1*console port
-
CPU:
-
500M
-
Buffer:
-
Fully integrated 4.1 M packet buffer
-
Packet Forwarding:
-
40.32Mpps
-
RAM:
-
128M
-
Bandwidth:
-
56/128Gbps
-
Certificate:
-
CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS;
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex
-
Switch Capacity:
-
56/128Gbps
-
Brand Name:
-
Omenfirst
-
Model Number:
-
NF1024K-P24-2S-M
-
Place of Origin:
-
Guangdong, China
-
PoE Port:
-
1-24 port supports PoE
-
PoE type:
-
IEEE802.3af/at
-
Console Port:
-
1*console port
-
CPU:
-
500M
-
Buffer:
-
Fully integrated 4.1 M packet buffer
-
Packet Forwarding:
-
40.32Mpps
-
RAM:
-
128M
-
Bandwidth:
-
56/128Gbps
-
Certificate:
-
CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS;

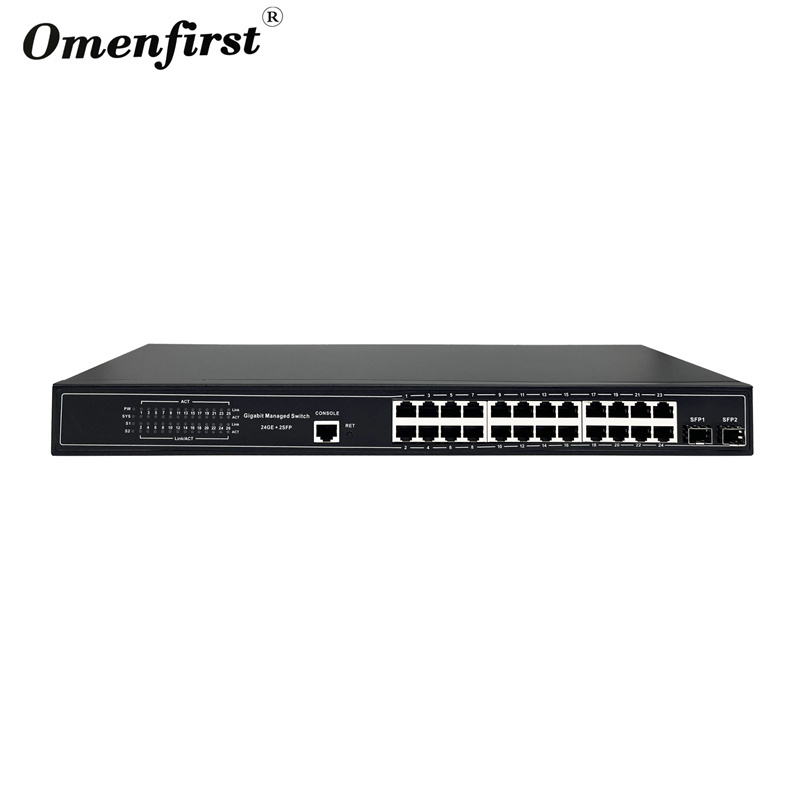

24 GE + 2 SFP Managed POE Switch
10/100/1000Mbps
Product parameters
|
Product name
|
24 GE 2 SFP Full Gigabit L2+ Managed PoE Switch
|
|
Model
|
NF1024K-P24-2S-M
|
|
Fixed Port
|
24*10/100/1000Base-TX PoE
2*100M/1000M SFP |
|
PoE Port
|
1-24 port supports PoE
|
|
PoE type
|
IEEE802.3af/at
|
|
Console Port
|
1*console port
|
|
Reset Key
|
1
|
|
CPU
|
500M
|
|
DDR
|
1G DDR3 1333MHz
|
|
Buffer
|
Fully integrated 4.1 M packet buffer
|
|
FLASH
|
16M
|
|
RAM
|
128M
|
|
Bandwidth
|
56/128Gbps
|
|
Packet Forwarding
|
40.32Mpps
|
|
MAC Address
|
8K
|
|
Network Protocol
|
IEEE 802.3
IEEE 802.3u 100BASE-TX IEEE 802.3ab1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3af/at IEEE 802.3ad IEEE 802.3q 、IEEE 802.3q/p IEEE 802.1w、IEEE 802.1d 、IEEE 802.1S STP(Spanning Tree Protocol) RSTP/MSTP( Rapid Spanning Tree Protocol) EPPS ring network protocol EAPS ring network protocol |
|
Port Specification
|
10/100/1000BaseT（X）Auto
|
|
Transmission Mode
|
Store and Forward(full wirespeed)
|
|
Transmission Distance
|
10BASE-T ： Cat3,4,5 UTP(≤250 meter)
100BASE-TX ： Cat5 or later UTP(≤100 meter) 1000BASE-TX ： Cat6 or later UTP(≤1000 meter) |
|
LED Indicator
|
PWR:Power LED
SYS:(System LED) 1~24:(Link/ACT LED=Network link indicator、1000M=Gigabit Link、PoE LED=PoE indicator） 25 26:（SFP LED） |
|
Power
|
Built-in power AC 100~240V 50/60HZ MAX
Max Current 4.8A Max Power 400W |
|
Operating Temperature/Humidity
|
-20～+55°C；5%～90% RH Non coagulation
|
|
Storage Temperature/Humidity
|
-40～+75°C；5%～95% RH Non coagulation
|
|
Product size/Packing size（L*W*H）
|
440*180*44mm 557*220*70mm
|
|
N.W/G.W（kg）
|
2.1kg/4.3kg
|
|
Installation type
|
1U Rack type, 19 "(machine hangers accessoried)
|
|
Lightning protection level
|
3KV 8/20us；IP30
|
|
Certificate
|
CE FCC
|
Product application
Product specification
Metal case Bilateral heat dissipation
Efficient heat resistance and anti-interference
Q1.Can we get a sample?
Yes,but we need to charge for samples,we will return sample fee in later order.
Q2.Can you offer a better price?Any discount?
Yes ,price is not a problem,more quantity more attractive price.
Q3.Do you have MOQ?
Depending on the situation, please consult customer service for details.
Q4.OEM,ODM Severice is available?
Yes,Powelink provide good OEM/ODM service to our customers.
Q5.Can you take care for the shipment?
We will organize and schedule all shipping to your office if you want.
Q6.Lead time?
Sample order, 3-15 works days,bulk order, 7-30 work days after geting deposit.
Q7.What is your warranty period?
Warranty period is 12 months.
This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as
natural disasters,earthquakes,fires ,etc.
Yes,but we need to charge for samples,we will return sample fee in later order.
Q2.Can you offer a better price?Any discount?
Yes ,price is not a problem,more quantity more attractive price.
Q3.Do you have MOQ?
Depending on the situation, please consult customer service for details.
Q4.OEM,ODM Severice is available?
Yes,Powelink provide good OEM/ODM service to our customers.
Q5.Can you take care for the shipment?
We will organize and schedule all shipping to your office if you want.
Q6.Lead time?
Sample order, 3-15 works days,bulk order, 7-30 work days after geting deposit.
Q7.What is your warranty period?
Warranty period is 12 months.
This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as
natural disasters,earthquakes,fires ,etc.
