- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
±1%(>100ml)
-
Voltage:
-
220V 50-60HZ
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MEST
-
Dimension(L*W*H):
-
4000*1100*2100mm
-
Weight:
-
300 KG
-
Product name:
-
Liquid Filling Machine
-
Function:
-
filling and gluing machine line for liquid oil
-
Keywords:
-
yogurt filling machine
-
Usage:
-
sauce filling machine
-
Feature:
-
bottling machine filling machine liquid
-
Filling range:
-
50-1000ml or 500-3000ml(5Lfilling two times)
-
Filling speed:
-
500-1000bottles/h
-
Air pressure:
-
0.5-0.7mpa
-
Air consumption:
-
20L/t
Quick Details
-
Machinery Capacity:
-
4000BPH, 2000BPH
-
Packaging Material:
-
Plastic, Metal, Glass
-
Filling Material:
-
Beer, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
±1%(>100ml)
-
Voltage:
-
220V 50-60HZ
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MEST
-
Dimension(L*W*H):
-
4000*1100*2100mm
-
Weight:
-
300 KG
-
Product name:
-
Liquid Filling Machine
-
Function:
-
filling and gluing machine line for liquid oil
-
Keywords:
-
yogurt filling machine
-
Usage:
-
sauce filling machine
-
Feature:
-
bottling machine filling machine liquid
-
Filling range:
-
50-1000ml or 500-3000ml(5Lfilling two times)
-
Filling speed:
-
500-1000bottles/h
-
Air pressure:
-
0.5-0.7mpa
-
Air consumption:
-
20L/t

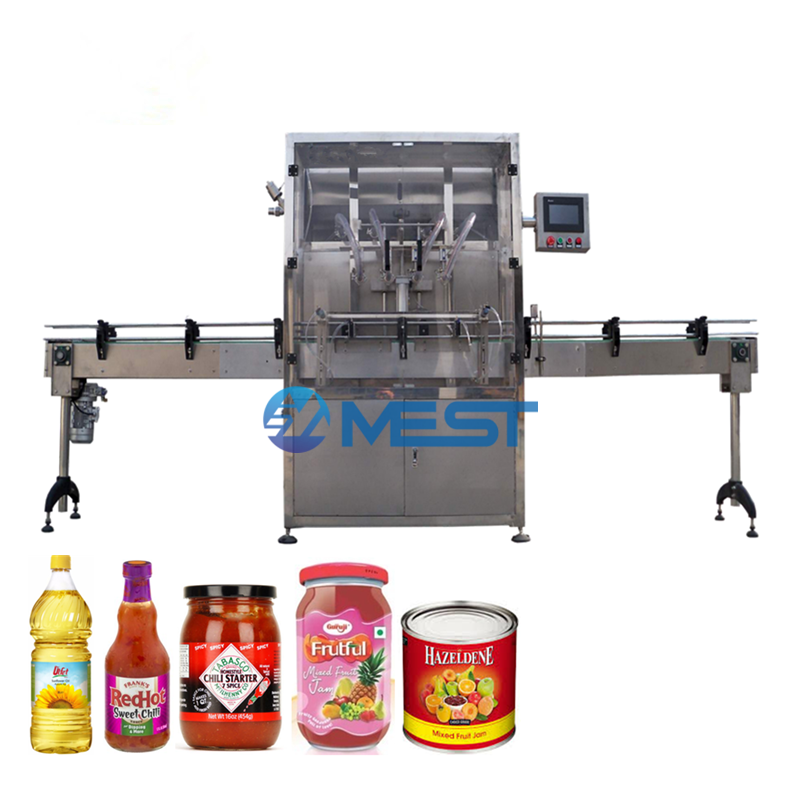

Automatic Servo Motor Piston Pump Yogurt Filling Machine Bottle Yogurt Milk Filling and Production Machine Line
Product Description
Machine Introduction:
This liquid filling machine is widely used in food, chemical industry, daily chemical industry, such as honey, ketchup, rice wine, seafood sauce, grease, lubricating oil, etc., The filling of a viscous liquid, such as detergent, laundry fluid, etc.. The contact parts are made of stainless steel, and the composite GMP standard.
Machine Characteristics:
1.Servo motor driven the piston to achieve accuracy filling.
2. A special three-way valve for each filling nozzle.
3. The filling volume is adjustable on LCD touch screen; simple and convenient.
4. The bottles are automatically enters, fills, and exits.
5. Skip or stop filling if without bottles.
6. The filling volumes are accurate and has a counting function.
7. Equipped with filling nozzle to prevent dripping and drawing.
8. Equipped with a diving filling system to ensure that the filling process does not foam and prevent the filling material from overflowing.
9. Sanitary valve piping. Quick installation connection, easy disassembly and installation.
Specification
|
Model
|
MEST-SFGZ-L4
|
MEST-SFGZ-L6
|
MEST-SFGZ-L8
|
MEST-SFGZ-L12
|
MEST-SFGZ-L16
|
||||
|
Filling head
|
4heads
|
6heads
|
8heads
|
12heads
|
16heads
|
||||
|
Filling range
|
50-1000ml or 500-3000ml（5Lfilling two times）
|
|
|
|
|
||||
|
Filling accuracy
|
±1%（＞100ml）
|
|
|
|
|
||||
|
Capacity （filling 500ml）
|
500-1000bottles/h
|
800-1600bottles/h
|
1000-2000bottles/h
|
1500-3000bottles/h
|
2000-4000bottles/h
|
||||
|
Air pressure
|
0.5-0.7mpa
|
|
|
|
|
||||
|
Air consumption
|
20L/t
|
30L/t
|
40L/t
|
60L/t
|
100L/t
|
||||
|
Power
|
2.0KW
|
2.0KW
|
2.0KW
|
2.5KW
|
2.5KW
|
||||
|
Weight
|
300kg
|
400kg
|
500kg
|
700kg
|
900kg
|
||||
|
Size (cm)
|
400*110*210
|
400*110*230
|
400*115*230
|
600*100*230
|
600*100*230
|
||||
Details Images
Suitable For
Packing & Delivery
Fumigation-free wooden case
Related Products
Certifications
FAQ
1. Q: Are you trading company or manufacturer ?
A: We are manufacturer since 1995. You can also check this from Alibaba Certified Business Types.
2. Q: What’s the guarantee of the machine?
A: We have 2 year’s guarantee of the machine. We would like to send you new one since we have two years warranty. You also can buy from your market if more convenient. And we will take videos and pictures to teach you how to replace it. Engineers available to service machinery overseas. (You need to pay tickets, food, hotel and salary), but anyway it's up to you. But according to my experience, there's nearly no wearing parts.
3. Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. Or it is 10-20 days if the goods are not in stock, it is according to
quantity.
4. Q: How to install the machine after we received the machine?
A: When you received the machine, just connect it with electric and air compressor then can run it. (It will cost a little more if you need our team to your place (you need to pay tickets, food, hotel and salary), but anyway it's up to you. We’ll test the machine and make sure the machine runs well before shipment. (We’ll send the testing video for your checking)
5. Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
