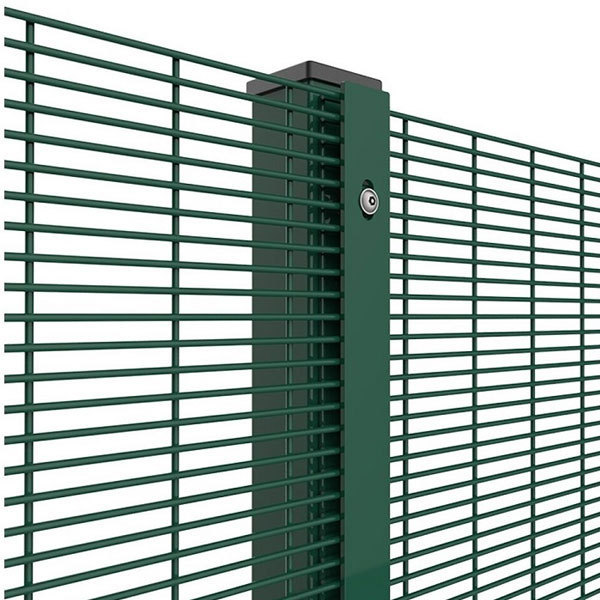

High Security Fence 358 Fence
|
|
|
|
Material
|
High quality carbon steel wire
|
|
|
Surface treatment
|
A. Hot dipped galvanized after welding (zinc coating can reach 300g/m2);
B. Electro galvanized after welding then powder coating
|
|
|
Wire diameter
|
8gauge (4mm)
|
|
|
Opening size
|
3inch x 0.5inch (76.2mmx12.7mm)
|
|
|
Color
|
dark green, grey, black, yellow, etc.
|
|
|
Panel size
|
Length: 2m, 2.5m, 3m
Height: 1.2m, 1.5m, 1.8m, 2m, 2.1m, 2.4m, 2.5m, 3m
|
|
|
Post size
|
Square post: 40*60mm 50*50mm 60*60mm
Thickness:1.2mm, 1.5mm, 1.8mm, 2mm, 2.2mm, 2.5mm
|
|
|
Type A - Flat panel without folds
|
|
|
|
|
||||
|
Mesh
|
Wire Diameter
|
Surface
Treatment |
Panel
Width |
Panel Height
|
||||
|
76.2x12.7mm
75.0x12.5mm |
Horizontal Wire: 3.0, 3.5, 4.0mm
Vertical Wire: 4.0mm |
Electric Galvanized + powder/PVC coated
or hot dipped galvanized |
2.2m or 2.5m
|
1800mm
2000mm 2100mm 2200mm 2400mm 2500mm 3000mm |
||||
|
Note: Welded Strength – 75% of the minimum tensile strength of the wire;
Tensile Range: 540-690N/m2 |
|
|
|
|
||||
|
Type B - Panel with Strength Folds
|
|
|
|
|
|
|||||
|
Mesh
|
Wire Diameter
|
Surface Treatment
|
Folds NO.
|
Panel Width
|
Panel Height
|
|||||
|
76.2x12.7mm
|
Horizontal Wire: 3.0, 3.5, 4.0mm
Vertical Wire: 4.0mm |
Electric Galvanized + powder/PVC coated
or hot dipped galvanized |
3
3 4 4 4 5 6 |
2.2m or 2.5m |
1800mm
2000mm 2100mm 2200mm 2400mm 2500mm 3000mm |
|||||
|
Note: Welded Strength – 75% of the minimum tensile strength of the wire;
Tensile Range: 540-690N/m2 |
|
|
|
|
|
|||||
