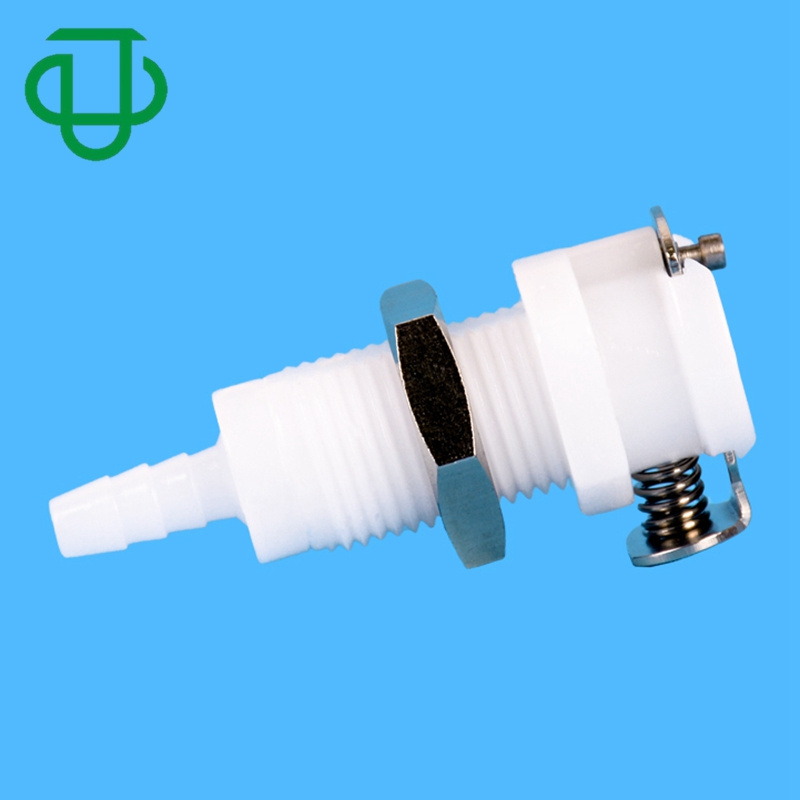

Small Orifice 1/8" Hose Barb Bulkhead Fitting Panel Mount Thread Connector Shut Off Valved Female Quick Disconnect Coupling Body

FOB Reference Price: Get Latest Price
≥25 Pieces
US $3
≥500 Pieces
US $2.8
≥1000 Pieces
US $2.5
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
JU Plasfitting
Model Number:
MFD1602/03/04
Product name:
1/8" Hose Barb Panel Mount Female Quick Disconnect Coupling Body
Application:
Analysis, medical, biochemical, industrial, lab,food processing etc
Certification:
RoHS Compliant
Material:
White POM(Acetal) or customized
Seal Ring Material:
Buna-N/FKM/EPDM/Silicone, depends on your usage
Valve Options:
Valved (Shut Off) or Non-Valved (Open Flow)
Barbed Tube ID:
1/8"(3.2mm), 3/16"(4.8mm), 1/4"(6.4mm)ID Tubing
Temperature Range:
32°F - 160°F (0°C - 71°C)
Pressure range:
Vacuum to 120 psi, 8.3 bar
Termination Options:
Panel Mount/Elbow/In-Line/NPT Threaded/Push-In type

Quick Details

Technics:
Plastic Injection Molding
Shape:
Panel Mount
Head Code:
Round
Place of Origin:
Guangdong, China
Brand Name:
JU Plasfitting
Model Number:
MFD1602/03/04
Product name:
1/8" Hose Barb Panel Mount Female Quick Disconnect Coupling Body
Application:
Analysis, medical, biochemical, industrial, lab,food processing etc
Certification:
RoHS Compliant
Material:
White POM(Acetal) or customized
Seal Ring Material:
Buna-N/FKM/EPDM/Silicone, depends on your usage
Valve Options:
Valved (Shut Off) or Non-Valved (Open Flow)
Barbed Tube ID:
1/8"(3.2mm), 3/16"(4.8mm), 1/4"(6.4mm)ID Tubing
Temperature Range:
32°F - 160°F (0°C - 71°C)
Pressure range:
Vacuum to 120 psi, 8.3 bar
Termination Options:
Panel Mount/Elbow/In-Line/NPT Threaded/Push-In type
Product Description
Small Orifice 1/8" Hose Barb Bulkhead Fitting Panel Mount Thread Connector Shut Off Valved Female Quick Disconnect Coupling Body
Usage
Standard flow quick-disconnect couplings require a body and an insert in the same flow size. Plug insert into body to connect fitting and easily disconnect the fitting by simply press the thumb latch.
Application
Medical devices, laboratory, life science, biopharmaceutical, biochemical analysis, bioengineering, circulating water cooling pipe system, water treatment and disinfection, food&beverage, packaging machinery, industrial and hundreds of other applications;
Material
White/Black POM Acetal Plastic, customization is welcomed;
Barbed Hose ID
1/16" Flow Small Series:
1/16" =1.6mmID Tube (01); 1/8"= 3.2mmID Tube (02);
1/8" Flow Medium Series:
1/16"=1.6mm (01); 1/8"=3.2mm (02); 3/16"=4.8mm (03); 1/4"=6.4mm(04);
1/8"NPT(02); 1/4"NPT(04); 1/8"BSPT(02BSPT);
1/4" Flow Large Series:
1/8"= 3.2mm (02); 1/4"=6.4mm (04); 5/16"=8mm (05); 3/8"=9.6mm (06);
1/4"NPT(04);
1/4" Flow All Plastic Series:
1/4"=6.4mmID Tube(04); 5/16"=8mmID Tube (05); 3/8"=9.6mmID Tube (06);
Seal Ring Material
Standard Buna-N O-ring;
FKM/EPDM/Silicone rubber can be customized;
Spring/Pin/Thumb latch
316 Stainless Steel
Temperature Range
32°F - 160°F (0°C - 71°C)
Pressure Range
Vacuum to 120 psi, 8.3 bar
Valve Option
Valved (shut off) or Non-Valved(open flow)
Termination Option
Panel Mount/In-line/Elbow/NPT Threaded/Push-in type/PTF etc;
Medium 1/8” Flow Quick Disconnect Coupling Body&Insert
1/8" Flow Valved Panel Mount Female Body:
MFD1602=1/8"(3.2mm) Hose Barb;
MFD1603=3/16"(4.8mm) Hose Barb;
MFD1604=1/4 "(6.4mm) Hose Barb;
1/8" Flow Non-Valved Panel Mount Female Body:
MFO1601=1/16"(1.6mm) Hose Barb;
MFO1602=1/8"(3.2mm) Hose Barb;
MFO1603=3/16"(4.8mm) Hose Barb;
MFO1604=1/4"(6.4mm) Hose Barb;
1/8" Flow Valved In-Line Female Body:
MFD1702=1/8"(3.2mm) Hose Barb;
MFD1703=3/16"(4.8mm) Hose Barb;
MFD1704=1/4 "(6.4mm) Hose Barb;
1/8" Flow Non-Valved In-Line Female Body:
MFO1702=1/8"(3.2mm) Hose Barb;
MFO1703=3/16"(4.8mm) Hose Barb;
MFO1704=1/4"(6.4mm) Hose Barb;
1/8" Flow Valved Threaded Female Body:
MFD1002=1/8"-27NPT Male Thread;
MFD1004=1/4"-18NPT Male Thread;
MFD1002BSPT=1/8"-28BSPT Male Thread;
1/8" Flow Non-valved Threaded Female Body:
MF1002=1/8"-27NPT Male Thread;
MF1004=1/4"-18NPT Male Thread;
MF1002BSPT=1/8"-28BSPT Male Thread;
1/8" Flow Valved Threaded Male Insert:
MMD2402=1/8"-27NPT Male Thread;
MFD2404=1/4"-18NPT Male Thread;
1 /8" Flow Non-valved Threaded Male Insert:
MM2402=1/8"-27NPT Male Thread;
MM2404=1/4"-18NPT Male Thread;
1/8" Flow Valved Straight Male Insert:
MMD2202=1/8"(3.2mm) Hose Barb;
MMD2203=3/16"(4.8mm) Hose Barb;
MMD2204=1/4"(6.4mm) Hose Barb;

1/8" Flow Non-valved Straight Male Insert:
MM2202=1/8"(3.2mm) Hose Barb;
MM2203=3/16"(4.8mm) Hose Barb;
MM2204=1/4"(6.4mm) Hose Barb;
1/8" Flow Valved Elbow Male Insert:
MMD2302=1/8"(3.2mm) Hose Barb;
MMD2303=3/16"(4.8mm) Hose Barb;
MMD2304=1/4"(6.4mm) Hose Barb;

1/8" Flow Non-valved Elbow Male Insert:
MM2302=1/8"(3.2mm) Hose Barb;
MM2303=3/16"(4.8mm) Hose Barb;
MM2304=1/4"(6.4mm) Hose Barb;
1/8" Flow Valved Panel Mount Male Insert:
MMD4202=1/8"(3.2mm) Hose Barb;
MMD4203=3/16"(4.8mm) Hose Barb;
MMD4204=1/4"(6.4mm) Hose Barb;
1/8" Flow Non-valved Panel Mount Male Insert:
MM4202=1/8"(3.2mm) Hose Barb;
MM4203=3/16"(4.8mm) Hose Barb;
MM4204=1/4"(6.4mm) Hose Barb;
1/8" Flow Non-valved Panel Mount Female Body:
MFO1601=1/16"(1.6mm) Hose Barb;
1/8" Flow Valved In-Line Male Insert:
MMD2201=1/16"(1.6mm) Hose Barb;

1/8" Flow Valved Panel Mount 5/32" PTF Female Body:
MFD2004=5/32"(4mm)IDx1/4"(6.4mm)OD Tube;
1/8" Flow Valved In-Line 5/32" PTF Female Body:
MFD1304=5/32"(4mm)IDx1/4"(6.4mm)OD Tube;
1/8" Flow Non-Valved 5/32" PTF Male Insert:
MM2004=5/32"(4mm)IDx1/4"(6.4mm)OD Tube;
1/8" Flow Valved 5/32" PTF Male Insert:
MMD2004=5/32"(4mm)IDx1/4"(6.4mm)OD Tube;

1/8" Flow Valved Panel Mount 5/32" PTF Male Insert:
MMD4004=5/32"(4mm)IDx1/4"(6.4mm)OD Tube;
1/8" Flow Non-Valved Panel Mount 5/32" PTF Male Insert:
MM4004=5/32"(4mm)IDx1/4"(6.4mm)OD Tube;
