Quick Details
-
Weight:
-
1000 KG
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training
-
Local Service Location:
-
tanzania
Quick Details
-
Dredging Depth:
-
15 m
-
Draught:
-
40 inch
-
Place of Origin:
-
China
-
Weight:
-
1000 KG
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training
-
Local Service Location:
-
tanzania
Product Description
Product Introduction

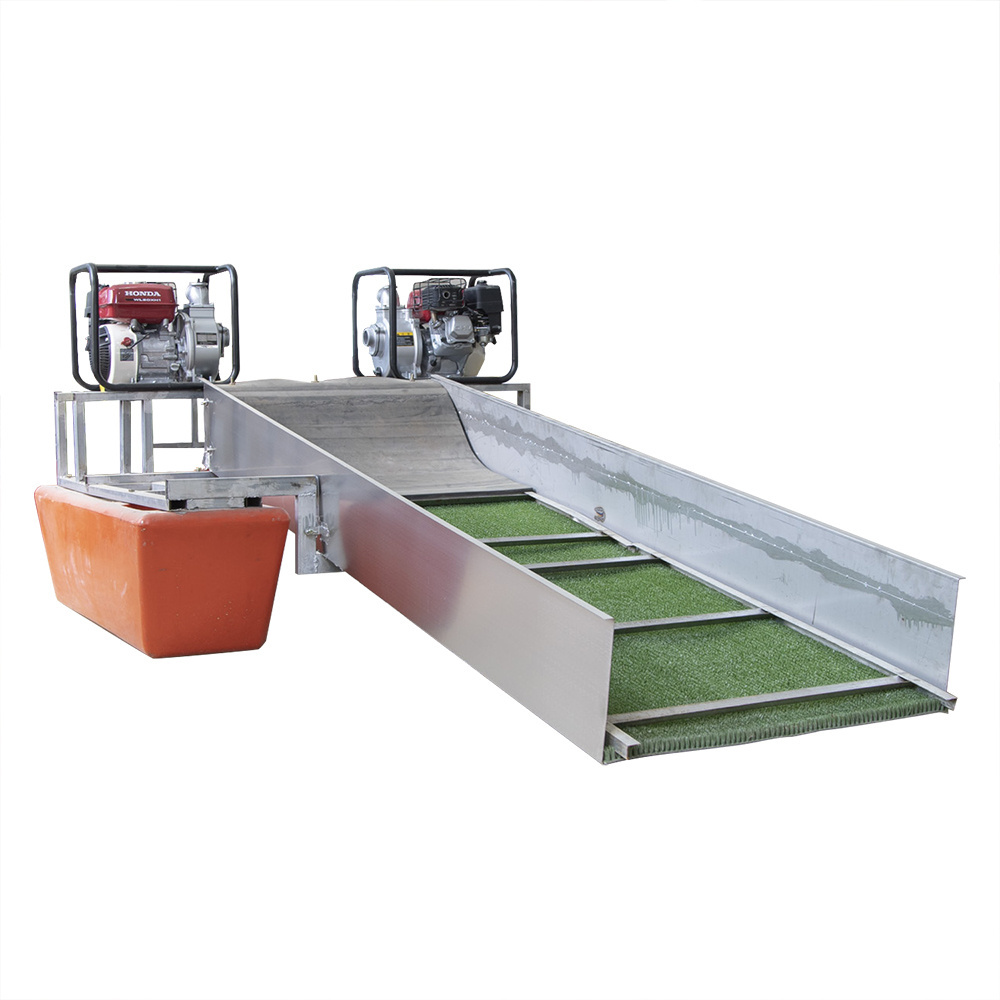

Small Gold Dredger is a professional portable gold mining machine which is specially designed according to the complex riverbed conditions and has passed the ISO9001:2008 standard. This gold mining equipment is flexible to most kinds of geologic structures and has a lot of obvious advantages.
During the portable gold mining equipment working process, on the water, the sand and mud can be suck up from the river bottom through the mud pump, and then be delivered into the chute, after the separation of the sorting sieve, large stones was flowed back to the river, the sand mud with gold grains was stuck in the gold carpet.
Product Show
Product Specifications
As an OEM & ODM in gold recovery equipment with rich experience and many Independent Intellectual Property Rights, WALKER Mine Machinery provide different models of mini gold dredge with different dimension sizes and capacity.
Here is a list of our most hottest models, if you want more specific parameters, you can directly contact us.
|
Portable Gold Mining Boat
|
|
|
|
|||
|
Model
|
QFT3-2
|
QFT4-3
|
QFT5-3
|
|||
|
Dimension
|
2300*1500*1000mm
|
2500*1500*1000mm
|
2500*1500*1000mm
|
|||
|
Diesel
|
|
|
|
|||
|
Model
|
RZ170F
|
RZ178F
|
RZ186FA
|
|||
|
Power
|
5hp
|
7hp
|
12hp
|
|||
|
Rotate speed
|
3600rpm
|
3600rpm
|
3600rpm
|
|||
|
Fuel consumption
|
≤284g/Kw·h
|
≤283g/Kw·h
|
≤280g/Kw·h
|
|||
|
Fuel capacity
|
2.65L
|
3.3L
|
5.5L
|
|||
|
Pump
|
1 set
|
1 set
|
2 sets
|
|||
|
Dimension(L*W*H)
|
550*450*450mm
|
550*470*450mm
|
550*500*480mm
|
|||
|
Pump diameter
|
50mm(2inch)
|
80mm(3inch)
|
100mm(4inch)
|
|||
|
Water flow
|
33m³/h
|
60m³/h
|
80m³/h
|
|||
|
Head
|
30m
|
30m
|
25m
|
|||
|
Dredging depth
|
0.5-0.8 m
|
0.5-0.8 m
|
1.5 m
|
|||
|
Work capacity
|
5m³/h
|
8m³/h
|
13m³/h
|
|||
|
Gold chute
|
|
|
|
|||
|
Dimension(L*W)
|
400*1500mm
|
500*1700mm
|
500*1700mm
|
|||
|
|
With gold felt
|
With gold felt
|
With gold felt
|
|||
|
Float
|
|
|
|
|||
|
Dimension(L*W*H)
|
1600*395*370
|
1600*395*370
|
1600*395*370
|
|||
|
Suction pipe
|
3inch
|
4inch
|
5inch
|
|||
Product Advantages
●
Portable, small in size:
easy to operate, maintain, transport and assemble, it is most ideal equipment for personal gold mining in mini river channel.
●
Hot sale all over the world:
Had been exported to more than 15 countries, such as Ghana, Philippines, Vienam, Russia, North Korea, Indonesia, Gabon, America and so on.
●
High efficiency:
It is equipped with a gold chute with gold carpet for high recovery rate.
●
Quick return, high profits:
It is highly efficient with low cost, a good gold mining machine.
●
Standard quality:
Diesel engine power system, float framework is made up of stainless steel structure, the floating body is made of high strength and light weight plastic, which means the main body of the machine is stong, durable and low failure rate.
●
Customization design:
According to the different geological condition, capacity requirement planning and the customers budget, provid the most ideal product for investor.
Packing & Delivery
●Ways Of Packing
1.Small parts packed in the wooden cases.
2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the container.
● Shiping by sea/air freight
or any way the customer requires.
Company Introduction
Jiangxi walker Machinery Co.,Ltd, are a professional manufacturer of complete set mining equipments, a sub-company of JXSC mine machinery factory in Jiangxi province.professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.
Our core advantages as below:
1.+30years history factory at mining machinery
2.Provide engineer team after sale service
3.Provide complete set mineral processing plant
4.Provide sample testing service in factory lab for free
5.Provide professional ming soolution consulting
1.+30years history factory at mining machinery
2.Provide engineer team after sale service
3.Provide complete set mineral processing plant
4.Provide sample testing service in factory lab for free
5.Provide professional ming soolution consulting
1.Inquiry and consulting support.
2.Ore sample testing support.
3.View our Factory.
4.Design Flowchart.
2.Ore sample testing support.
3.View our Factory.
4.Design Flowchart.
1.Training how to instal the machine, training how to use the machine.
2. 1 year warranty .
3.Engineers available to service machinery overseas.
2. 1 year warranty .
3.Engineers available to service machinery overseas.
FAQ
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,
building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,
building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
