Quick Details
-
Product name:
-

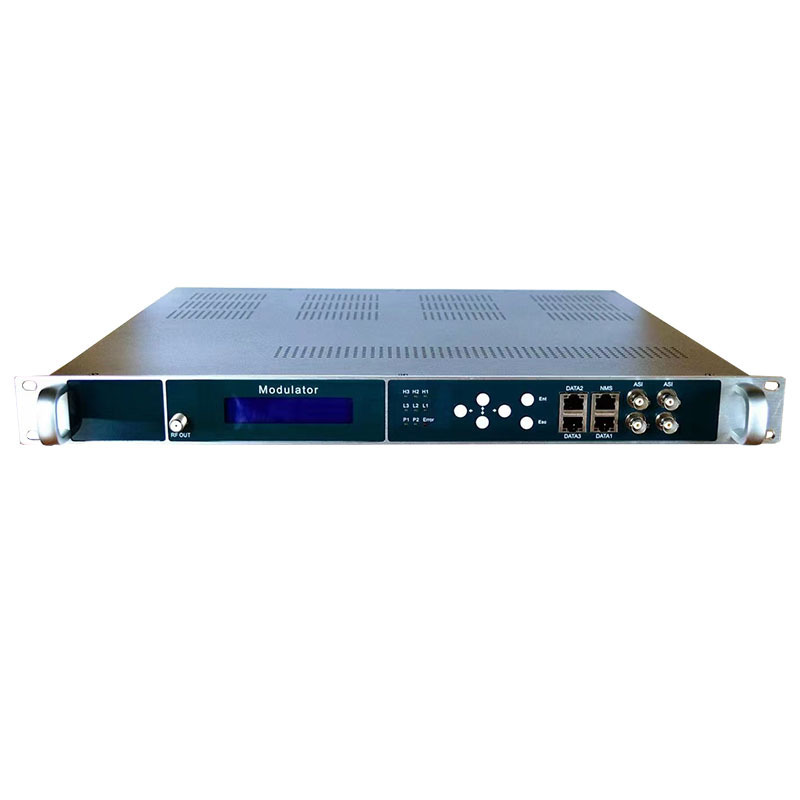

Multi-channel HD H.264 RF Encoder Modulator
-
Dual power:
-
support
-
Input:
-
4/8/12/16/20/24HD MI+2independent ASI+IP
-
Output:
-
24SPTS/1MPTS,2ASI, 8/16RF DVB-T/C/ATSC-T/ISDB-T/Tb
-
Video Encoding:
-
MPEG-4 AVC/H.264 Video Encoding
-
Audio Encoding:
-
MPEG-1 Layer 2
-
Application:
-
Various of DTV Broadcasting Systems
-
Management:
-
Front panel and browser via Ethernet interface/NMS
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dibviewolo
-
Model Number:
-
OTV-EM24P
-
Product name:
-
Multi-channel HD H.264 RF Encoder Modulator
-
Dual power:
-
support
-
Input:
-
4/8/12/16/20/24HD MI+2independent ASI+IP
-
Output:
-
24SPTS/1MPTS,2ASI, 8/16RF DVB-T/C/ATSC-T/ISDB-T/Tb
-
Video Encoding:
-
MPEG-4 AVC/H.264 Video Encoding
-
Audio Encoding:
-
MPEG-1 Layer 2
-
Application:
-
Various of DTV Broadcasting Systems
-
Management:
-
Front panel and browser via Ethernet interface/NMS
Products Description
Overview
OTV-EM24P is a professional high integration device which includes encoding, multiplexing, and modulation. It supports 4/8/12/16/20/24 HD MI input, 1000M IP ouput,4 number RF output(ATSC、ISDBT、DTMBT、DVB-C/-T)、8 MPTS output and 512 SPTS output.In conclusion, its high integrated and cost-effective design makes the device widely used in varieties of digital distribution
systems such as cable TV digital head-end, digital TV broadcasting etc.
systems such as cable TV digital head-end, digital TV broadcasting etc.
Main Features
4/8/12/16/20/24 HD MI input, MPEG-4 AVC/H.264 Video encoding 1000M IP output over UDP and RTP protocol (MPTS and SPTS) 8/16 RF
output ,(ATSC、ISDBT、DTMBT、DVB-C/-T) 2 ASI inputs 2 ASI Independent output (optional) as copy of 5MPTS
output ,(ATSC、ISDBT、DTMBT、DVB-C/-T) 2 ASI inputs 2 ASI Independent output (optional) as copy of 5MPTS
Support “Null PKT Filter” function Support PID Remapping/ PCR accurate adjusting PID pass Dual power supply LCD、key function
Control via web management, and easy updates via web
Control via web management, and easy updates via web
|
Specifications
|
|
|
|
|
||||
|
Input
|
|
|
|
|
||||
|
HD MI (4/8/12/16/20/24 HD MI)2 ASI inputs
|
|
|
|
|
||||
|
Output
|
|
|
|
|
||||
|
8/16 RF output（DVB-C/DVB-T/ATSC/ISDBT/DMBT） 2 ASI output
IP output（SPTS and MPTS）IP output over UDP and RTP protocol |
|
|
|
|
||||
|
Video
|
|
|
|
|
||||
|
Encoding:MPEG-4 AVC/H.264
Resolution:
Input:1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, Output:1920×1080_60/30P,1920×1080_50/25P, 1280×720_60/30P,1280×720_50/25P, 720x576_25P,720x480_30P Bit-rate:1Mbps~13Mbps（each channel) Rate Control:CBR |
|
|
|
|
||||
|
Audio
|
|
|
|
|
||||
|
Encoding:MPEG1 Layer2
Sampling rate:44.1KHz and 48Khz
Bit-rate:64kbps ,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps
Resolution:24-bit Audio Gain:0-255 Adjustable |
|
|
|
|
||||
|
Multiplexing
|
|
|
|
|
||||
|
Maximum PID Remapping:180 output pids per channel
Function:PID remapping (automatically or manually)
Accurate PCR adjusting |
|
|
|
|
||||
|
Modulator
|
|
|
|
|
||||
|
DVB-T RF number:4 DVB-T
Standard:EN300744 FFT mode:2K bandwidth:6M, 7M, 8M Constellation:QPSK, 16QAM, 64QAM Guard Interval:1/4,1/8, 1/16, 1/32 FEC:1/2, 2/3, 3/4, 5/6, 7/8 MER:≥38 dB RF frequency:50~960MHz, 1KHz step RF output level:-34~ -10 dBm, 0.1db step |
|
|
|
|
||||
|
DVB-C RF number:4 RF output
Standard:EN300 429/ITU-T J.83A/B/C MER:≥38db RF frequency:50~960MHz, 1KHz step RF output level:-34~-10dBm, 0.1dBm step Symbol Rate:5.0Msps~7.0Msps,1ksps step J.83A: Constellation:16/32/64/128/256QAM Bandwidth:8M J.83B/J.83C: Constellation:64/256 QAM Bandwidth:6M |
|
|
|
|
||||
|
ATSC RF number:4 RF output
Standard:ATSC A/53 Bandwidth:6M Constellation:8VSB FEC:RS(208 188)+Trellis MER:≥38dB RF frequency:50~960MHz, 1KHz step RF output level:-34~-10dBm, 0.1dBm step |
|
|
|
|
||||
|
ISDBTRF number:4 RF output
Standard:ARIB STD-B31 Bandwidth:6M Constellation:QPSK, 16QAM, 64QAM Guard Interval:1/32, 1/16, 1/8,1/4 Transmission Mode:2K Code rate: 1/2, 2/3, 3/4, 5/6, 7/8 MER:≥38dB RF frequency:50~960MHz, 1KHz step RF output level:-34~-10dBm, 0.1dBm step System function: Network management (WEB) Chinese and English language Ethernet software upgrade |
|
|
|
|
||||
|
Miscellaneous
|
|
|
|
|
||||
|
Dimension(W×L×H):550mm×515mm×140mm weight:9kg-10kg
Environment:0~40℃(work)；-20~80℃(storage) Power requirements:AC100~240V，50/60Hz |
|
|
|
|
||||
Key Diagram or Application
HDTV Distribution
Public Broadcasting
Home Entertainment
Lobby and Rest Room
Hotel and Hospital TV
Airport, Railway Station
Apartment, Private House
Campus TV and Live Sports
Public Broadcasting
Home Entertainment
Lobby and Rest Room
Hotel and Hospital TV
Airport, Railway Station
Apartment, Private House
Campus TV and Live Sports
Highway and Railway Mobile Device
Various of DTV Broadcasting Systems
Industrial Monitoring and HD Surveillance
Museum, Theater and Cinema, Gymnasium
IPTV System Restaurant, Yacht, Club and Resort
HDTV Distribution Advertisement in Square and so on
Various of DTV Broadcasting Systems
Industrial Monitoring and HD Surveillance
Museum, Theater and Cinema, Gymnasium
IPTV System Restaurant, Yacht, Club and Resort
HDTV Distribution Advertisement in Square and so on
