Quick Details
-
Filling Accuracy:
-
99.5%, 1%(liquid Level)
-
Voltage:
-
220V / 380V / 415V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fostream
-
Dimension(L*W*H):
-
2000*1400*1900mm
-
Weight:
-
1500 KG
-
Workshop Layout:
-
Free Design
-
Suitable for:
-
Drinks, Beer, Soda water
-
Production Capacity:
-
1000-8000bph
-
Can Diameter:
-
52.5-99mm
-
Can Height:
-
39-160mm
-
Filling Volume:
-
100ml-600ml
-
Control:
-
PLC(SIEMENS)
-
Material:
-
SS 304
-
Function:
-
Filling Sealing Date Printing
-
Certification:
-
ISO 9001:2008 , CE
Quick Details
-
Machinery Capacity:
-
2000BPH
-
Packaging Material:
-
Plastic, Metal
-
Filling Material:
-
Beer, Water, Juice
-
Filling Accuracy:
-
99.5%, 1%(liquid Level)
-
Voltage:
-
220V / 380V / 415V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fostream
-
Dimension(L*W*H):
-
2000*1400*1900mm
-
Weight:
-
1500 KG
-
Workshop Layout:
-
Free Design
-
Suitable for:
-
Drinks, Beer, Soda water
-
Production Capacity:
-
1000-8000bph
-
Can Diameter:
-
52.5-99mm
-
Can Height:
-
39-160mm
-
Filling Volume:
-
100ml-600ml
-
Control:
-
PLC(SIEMENS)
-
Material:
-
SS 304
-
Function:
-
Filling Sealing Date Printing
-
Certification:
-
ISO 9001:2008 , CE

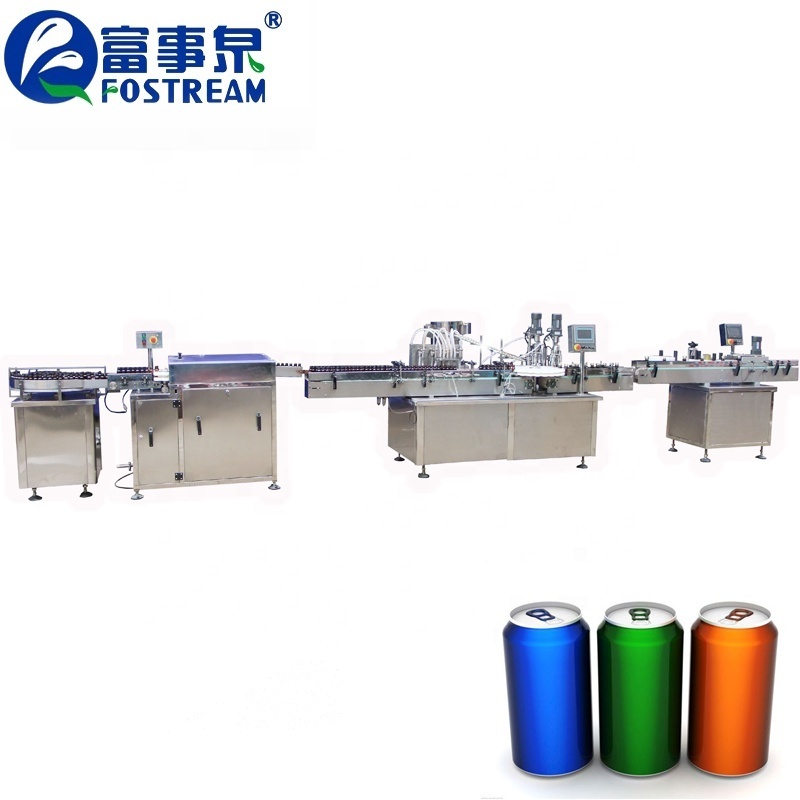

Automatic Beer Beverage Soda Water Can Filling Machine
Real Scene Shoots
Jiangmen First Drinking Water Equipment Co., Ltd.
NO.1 Water Production Line on Alibaba
16 Years Alibaba Gold Supplier
18 Years Professional Experience
12500 Square Meters Standard Factory
257000 USD Alibaba Trade Assurance
108000000 Yuan RMB Registered Capital
CE, SGS, BV Product Quality Certification
ISO 9001:2008 Quality Management System
Address: No. 141 (Factory), Lubian Industrial Zone, Chaolian Town, Pengjiang District, Jiangmen, Guangdong, China
Welcome to China! Welcome to our factory!
This kind of production line is mainly used for washing filling and capping for pop-top cans, aluminum cans and PET cans.It has functions of lifting the cans automatically, reverse automatically, washing automatically and filling capping. It can reach the big capacity. It is the ideal machines for producing the carbonated drink.like cola, beer.
Main Technical Parameters
| Model | F12-1 | F16-4 |
| Production capacity | 1000-2000b/h | 3000-8000b/h |
| The number of filling head | 12 | 16 |
| The number of sealing head | 1 | 4 |
| Can Diameter | 52.5-99mm | 52.5-99mm |
| Can Height | 39-160mm | 39-160mm |
| Filling accuracy | ±5 | ±5 |
| Power | 2.8kw | 5.5kw |
| Weight | 1500kg | 3100kg |
| Dimension | 2000*1400*1900mm | 2700*1400*1900mm |
The picture is for reference only:
1).Empty Can Washing Tunnel
Used to automatically wash the inner and outer side of the empty can. All the materials is Stainless Steel.
Main Technical Diameter:
•Production capacity: 0-100cans/min
•Water consumption: 300kg/h(up to the water pressure)
•Weight: 60kg
•Dimension: 1200*400*400mm
2).Can Filling Machine
•Filling heads: 12
•Production capacity: 1500 cans/hour
•Can diameter: Φ52.5-65.3mm
•Can height: 122-160mm(customized)
•Power: 1.5kw
•Weight:1800kg
Dimension: 1400*1200*1700mm
3). Can Sealing Machine
4). Laser Printer
It is mainly used for printing production date and number on pop can.
5). Convey system
Our products are sold well not only in domestic, but also in Chile,Venezuela,Egypt,Peru,Maldives,United States,Brunei Darussalam,Saudi Arabia,Kenya,Panama,Cambodia,Bhutan,Bolivia,Bulgaria,Nicaragua,Dominican Republic,Somalia,Australia,Switzerland,Mozambique and other countries.
| If you want to know more about our transaction history. Pls click |
VIEW MORE
>
|
8 professional sales engineers and technicians are waiting for your inquiry.
Q1.Are you a factory or trading company?
A1.We are a professional
water treatment and filling line machinery
manufacturing factory that set up for
18 years
.We always pay attention to the development of the industry !.We can give a discount according to the quantity of machine you purchase. (
16 years Alibaba Gold supplier
)
B1.At the same time,we take effective measures to control the production process for ensuring the quality of products.
Our products are certified.And we can supply
SGS, BV, TUV, ISO9001, ISO14001, OHSAS18001, CE certification.
C1,Website: www.fostream.com and www.fostream.com.cn
Website on alibaba: https://jmangel.en.alibaba.com
Q2.Where is your factory located? How can I visit there?
A2:Our factory is located in No.141 plant, Qingnian Road, Chaolian Town, Pengjiang District, Jiangmen, Guangdong, China, All our clients, from home or abroad, are warmly welcome to visit us!
Q3.What products does your company offer by yourself?
A3:We are specialized in water treatment machines , bottle filling machines, can filling machine and 5 gallon filling machines etc.
Q4: How can I know your machine works well?
A4: Before delivery, we will test the machine working condition for you. Welcome to our factory!
Q5:How can i install my machines when they arrives?
A5::We will send our engineer to your factory to help you installing the machines and also train you staff until they can operate the machine well.
