Quick Details
-
Dimensions:
-
500*270*420mm
-
Use:
-
welding
-
Voltage:
-
220V
-
Power:
-
3000W, 3000W
-
Weight (KG):
-
32 KG
-
Function:
-
TIG Welding/Cold welding
-
Power supply:
-
220V ±20% -50HZ
-
Maximum instantaneous power output:
-
> 70KW
-
Interval time:
-
10-999
-
Welding wire size range:
-
0.2--3.2mm
-
Argon time:
-
0.9S
-
Color:
-
White and blue
-
Machine size:
-
500*270*420
-
Weight:
-
38KG
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
XINDUN
-
Marketing Type:
-
New Product 2021
-
Dimensions:
-
500*270*420mm
-
Use:
-
welding
-
Voltage:
-
220V
-
Power:
-
3000W, 3000W
-
Weight (KG):
-
32 KG
-
Function:
-
TIG Welding/Cold welding
-
Power supply:
-
220V ±20% -50HZ
-
Maximum instantaneous power output:
-
> 70KW
-
Interval time:
-
10-999
-
Welding wire size range:
-
0.2--3.2mm
-
Argon time:
-
0.9S
-
Color:
-
White and blue
-
Machine size:
-
500*270*420
-
Weight:
-
38KG
Recommend Products
|
PARAMETERS
|
|
|
|

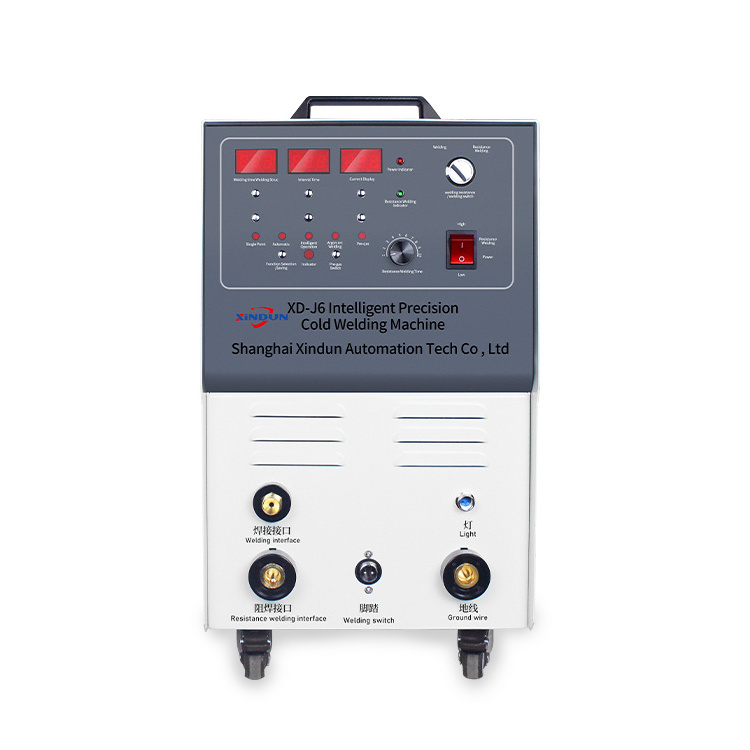

Model
|
XD-J6
|
|
|
Power supply
|
Single phase 220V±20%-50HZ
|
|
|
Rate of work
|
10-3500W
|
|
|
Instantaneous maximum output power
|
≥70KW
|
|
|
Arc welding output
|
Single point, automatic, intelligent operation, continuous arc welding,welding resistance output
|
|
|
Continuous arc welding
|
Welding wire0.2-3.0mm
|
|
|
Automatic output current
|
Output pulse current 5-200(adjustable)
|
|
|
Automatic welding time
|
Output welding time 5-999(adjustable)
|
|
|
Automatic interval
|
10-999(adjustable)
|
|
|
Continuous arc welding output current
|
5-200(adjustable)
|
|
|
Resistance welding output
|
high frequency1-10(adjustable) low frequency1-10 (adjustable)
|
|
|
Argon delay time
|
0.9S
|
|
|
Welding wire size range
|
0.2mm-3.2mm
|
|
|
Welding sheet thickness
|
0.2mm-6.0mm
|
|
|
Overlay welding thickness
|
Arbitrary
|
|
|
Cooling method
|
Forced air cooling by fan
|
|
|
Machine Size
|
L 500mm*W 270mm *H 420mm
|
|
|
Weight
|
38KG
|
|
