FRP grp fiberglass grating making equipment fiberglass grating moulds frp grating machinery supplier

FRP grp fiberglass grating making equipment fiberglass grating moulds frp grating machinery supplier

FOB Reference Price: Get Latest Price

≥1 Sets

US $12000

≥5 Sets

US $11500

≥10 Sets

US $11000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: GAINS

Surface Treatment:: Finished

Processing Service:: Molded

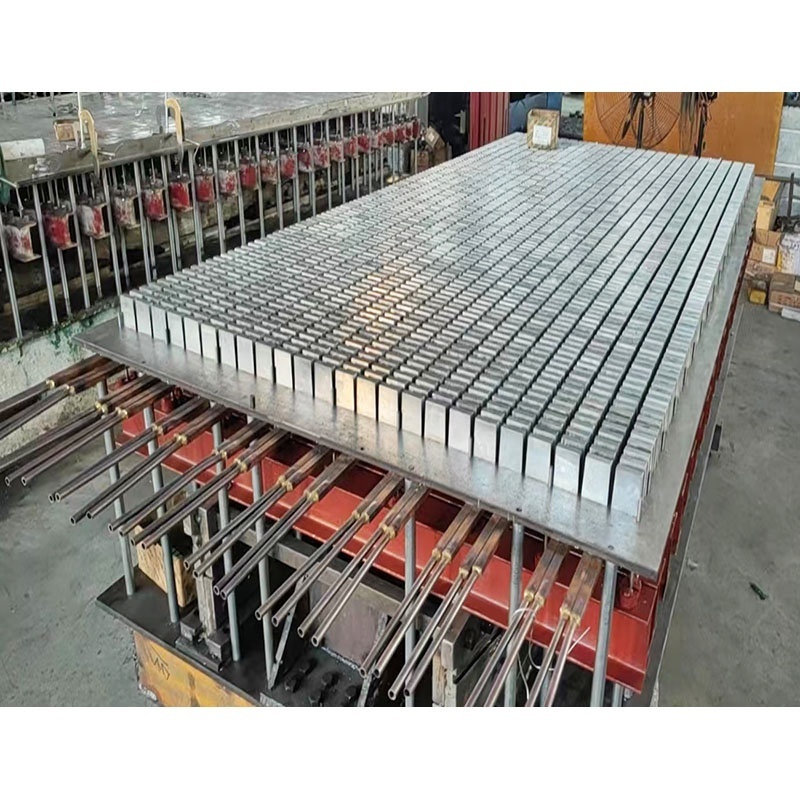

Product name:: FRP grating machine

Material:: Steel 45#

Voltage:: 380V 50HZ 3phase/ Customized

Production speed:: Piece/2 hours including curing time

Main power:: 4kw

Mold size (mm):: 3660*1220*38, customized

Mesh size (mm):: 38x38x38, 30x30x30, customized

Machine dimension (mm):: 4300*1300*900

Total weight:: 4 tons

Quick Details

Application:: FRP grating production, FRP grating production

Technique:: Molded

Place of Origin:: Hebei, China

Brand Name:: GAINS

Surface Treatment:: Finished

Processing Service:: Molded

Product name:: FRP grating machine

Material:: Steel 45#

Voltage:: 380V 50HZ 3phase/ Customized

Production speed:: Piece/2 hours including curing time

Main power:: 4kw

Mold size (mm):: 3660*1220*38, customized

Mesh size (mm):: 38x38x38, 30x30x30, customized

Machine dimension (mm):: 4300*1300*900

Total weight:: 4 tons

Product Description

Product Characteristics of FRP Grating Production Line

1. Ejector rod lifting device is two cylinder to parallel advance, smooth, no waving.

2. Stripp ing plate and stripping beam adopt elasticity connection, go up and down is parallel and steady.

3. The module using delicate 45# steel, grinding, polishing and the surface is plating. It has antiseptic function, smooth and easy to demould.

4. Ejector rod can go up and down along with lifting device,easy to change and easy maintenance.

Product Characteristics of FRP Grating Production Line

5. Ejector rod is made from steel parts grinding ,surface smooth,firmness and wear resistance.
6. Hydraulic station adopt hydraulic parts made by Sino-Japanese joint venture, it is long-life and durable.

7. Mould temperature rise and drop are achieved by rectangular copper pipe, which have large contact area with template, temperature rise and drop fast, and it can heat the mould top surface. In terms of the four borders of the mould, it is anti-corrosion and durable. Joint
adopt stainless soft joint,joint destuffing is convenience,anti-corrosion and durable.

8. Hot and cold water injection use high-powered water pump, pipe connections in parallel, so the heating and cooling speed are both fast.

9. there is protective equipment on the mould to avoid the resin leakage.

10. It is easy to adjust mould as it is locked up by screw on the bottom.

Auxiliary Equipments

FRP Molded Grating Machine, GRP Fiberglass Grating Machine, FRP Grating Production Line
Our FRP molded grating production line is made of following devices:
1) FRP Molded Grating Machine
2) Resin mixer

3) Storage tank
4) Hydraulic pump
5) Grinding machine
6) Water-circulating pump
7) SS hot water tank
8) Air source heating pump
9) Cooling tower
We provide full set of frp grating machines together with technology of producing if required.

Resin Mixer

Resin Mixing Bucket

Polishing / Grinding Machine

Hydraulic Pump

Boiler

Packing & Delivery
