Quick Details
-
Rated Voltage:
-
36KV
-
Tensile Strength:
-
70KN
-
Color:
-
Red or Grey
-
Structure Height:
-
580mm
-
Min Creepage Distance:
-
380mm
-
Insulating distance:
-
1250mm
-
Lightning impulse withstand voltage:
-
230KV
-
Diameter of shed:
-
88mm
-
Metal fitting:
-
Hot galvanizing steel
-
Sample:
-
Charge & Available
-
Applied for:
-
Overhead Power line
-
Housing material:
-
Silicone rubber
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Fuerte
-
Model Number:
-
FXBW-36/70
-
Rated Voltage:
-
36KV
-
Tensile Strength:
-
70KN
-
Color:
-
Red or Grey
-
Structure Height:
-
580mm
-
Min Creepage Distance:
-
380mm
-
Insulating distance:
-
1250mm
-
Lightning impulse withstand voltage:
-
230KV
-
Diameter of shed:
-
88mm
-
Metal fitting:
-
Hot galvanizing steel
-
Sample:
-
Charge & Available
-
Applied for:
-
Overhead Power line
-
Housing material:
-
Silicone rubber

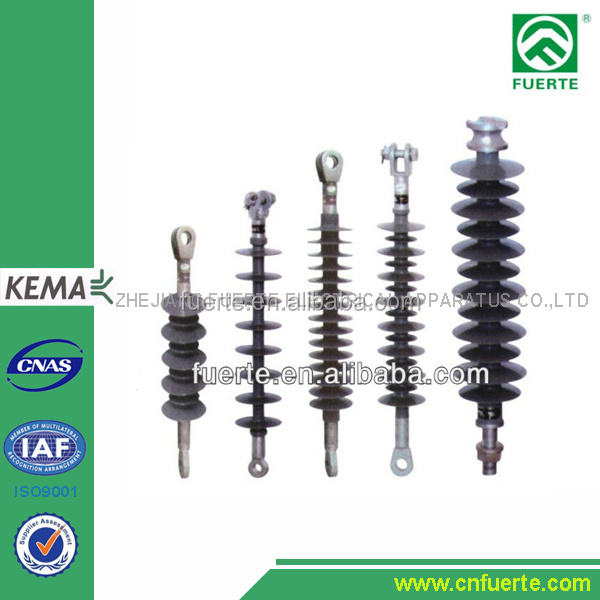

Bushing Insulator/polymer Pin Insualtor 36kv/70kN FXBW-36/70
Pin Insulator is special for badly polluted areas, high mechanical tension load, long span and compact power line.They have feature of light weight, small volume, unbreakable, anti-bend, high strength for anti-twist and strong explosion protection.
Components:
Core rod: made of FRP rod or ECR rod
Sheds: made from high quality HTV silicone rubber, through high pressure injection moulding techniques to create a smooth surface
End fittings: various pin end fittings made of hot dip galvanized cast steel
Properties & Advantages (the reason to buy !):
1. superior bending and tensile strength
2. electric corrosion resistance
3. excellent corona resistance
4. high pollution resistance
5. superior hydrophobicity/anti-water performance
6. aging resistance
7. anti-leakage trace
8. anti-ipulse property
9. shaking-proof
10. Good brittleness-proof property
11. light weight, convenient installation.
Technical parameter:
|
FXBW-36/70 |
Numerical value |
Unit |
|
Rated voltage |
36 |
KV |
|
Rated mechanical bending load(KN) |
70 |
KN |
|
Structure Height H |
580 |
mm |
|
Minimum creepage distance Power |
380 |
mm |
|
insulating distance Li. |
1250 |
mm |
|
Diameter of shed D |
88 |
mm |
|
Lightning impulse withstand voltage(peak) |
230 |
KV |
|
P.F frequency Wet withstand voltage(virtual value) |
95 |
KV |
