Quick Details
-
Worktable Length:
-
5600mm
-
Worktable Width:
-
2200 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Vico
-
Model Number:
-
VF5500
-
Warranty:
-
3 Years
-
Using range:
-
Workshop/4s Station/garge Store
-
Lifting method:
-
Tilt lift bench
-
Down-pull attachment:
-
Included
-
Power system by:
-
Foot air pump
-
Pulling tower working range:
-
360° around platform
-
OEM:
-
Size,color,control system,length,width,clamps are arailable
-
Usage:
-
Auto body shop or auto service stores
-
Chain size:
-
12 mm diameter
-
Measuring system:
-
Optional 3D electronic measuring system or 2D measuring system
-
Hydraulic cylinder:
-
10-ton capacity
Quick Details
-
Weight:
-
2900 kgs
-
Bench Height:
-
120mm~320mm~1200mm
-
Max. Lifting Capacity:
-
4000kgs
-
Worktable Length:
-
5600mm
-
Worktable Width:
-
2200 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Vico
-
Model Number:
-
VF5500
-
Warranty:
-
3 Years
-
Using range:
-
Workshop/4s Station/garge Store
-
Lifting method:
-
Tilt lift bench
-
Down-pull attachment:
-
Included
-
Power system by:
-
Foot air pump
-
Pulling tower working range:
-
360° around platform
-
OEM:
-
Size,color,control system,length,width,clamps are arailable
-
Usage:
-
Auto body shop or auto service stores
-
Chain size:
-
12 mm diameter
-
Measuring system:
-
Optional 3D electronic measuring system or 2D measuring system
-
Hydraulic cylinder:
-
10-ton capacity
Product Description

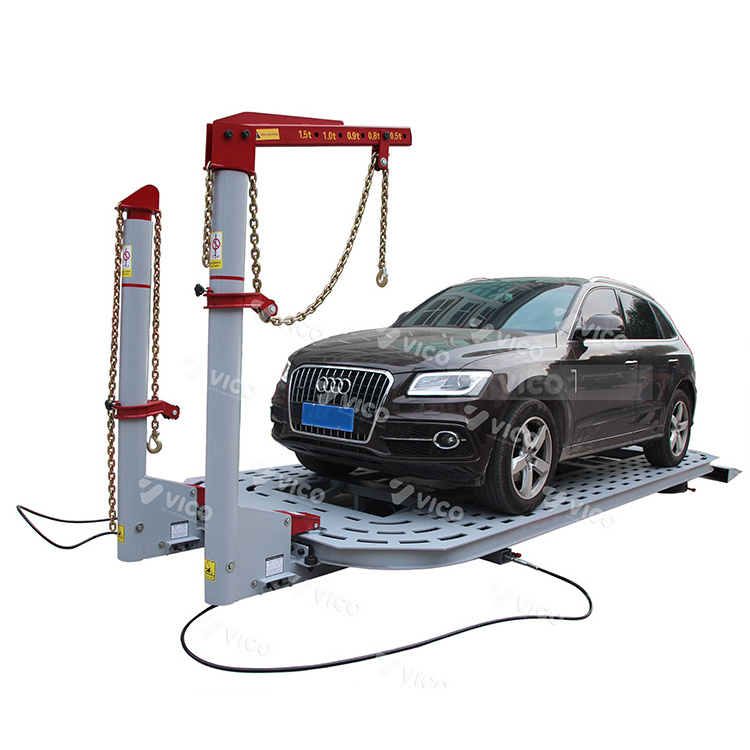

Vico Auto body frame machine Collision car straightening machine Car frame machine VF5500
Whole plate frame machine for sale Tilt lifting frame machine for 4S store
Features
(1) Manganese plate entirety lifting platform, high strength reinforcement plate, lifting smoothly and operating safely.
(2) Four outputs oil system makes lifting, unlocking, dropping and locking possible through a key. Full automation,
technological innovation, humanized design, practical working philosophy. Remote control: A key in hand, manipulate
freely.
(3) Double cylinder self-locking hydraulic parallel lifting platform, with tilt lifting function, convenient for car to drive on
and off. The height is adjustable among 120mm-320mm-1200mm according to the repairing need. The lifting device with
double safety of hydraulic and mechanical self-locking, more secure.
(4) Double-cylinder hydraulic vertical lifting platform makes the accidental vehicle loaded and unloaded more convenient.
Lifting frame has double security of hydraulic and mechanism. The lifting range is 120mm-320mm-1200mm in which can
be adjusted.
(5) Two pulling towers can be rotated 360 degrees along the platform which is operated more convenient. Unique wheel
rotation design, so that the pulling towers move more stable, flexible.
(6) Universal clamps are forged and heat-treated, high strength and long life, fix the auto quickly and accurately, also the
extension height and angle can be adjustable.
(7) Hydraulic system with good design has powerful driving force, long life and low failure rate.
(8) Control box’s four oil lines are connected with oil cylinder of the basement and two oil lines of the platform respectively,
it makes the two pulling towers pull and hydraulic lock separately, no influence each other, instead of the traditional tower
bolt locking. A gas pipe is connected with the air cylinder of the safety lock teeth, ensuring the security of the platform up
and down operation.
(2) Four outputs oil system makes lifting, unlocking, dropping and locking possible through a key. Full automation,
technological innovation, humanized design, practical working philosophy. Remote control: A key in hand, manipulate
freely.
(3) Double cylinder self-locking hydraulic parallel lifting platform, with tilt lifting function, convenient for car to drive on
and off. The height is adjustable among 120mm-320mm-1200mm according to the repairing need. The lifting device with
double safety of hydraulic and mechanical self-locking, more secure.
(4) Double-cylinder hydraulic vertical lifting platform makes the accidental vehicle loaded and unloaded more convenient.
Lifting frame has double security of hydraulic and mechanism. The lifting range is 120mm-320mm-1200mm in which can
be adjusted.
(5) Two pulling towers can be rotated 360 degrees along the platform which is operated more convenient. Unique wheel
rotation design, so that the pulling towers move more stable, flexible.
(6) Universal clamps are forged and heat-treated, high strength and long life, fix the auto quickly and accurately, also the
extension height and angle can be adjustable.
(7) Hydraulic system with good design has powerful driving force, long life and low failure rate.
(8) Control box’s four oil lines are connected with oil cylinder of the basement and two oil lines of the platform respectively,
it makes the two pulling towers pull and hydraulic lock separately, no influence each other, instead of the traditional tower
bolt locking. A gas pipe is connected with the air cylinder of the safety lock teeth, ensuring the security of the platform up
and down operation.
Specification
|
Platform Length
|
5600mm
|
|
Platform width
|
2200mm
|
|
Platform height
|
120mm~320mm~1200mm
|
|
Post Max. tension
|
98KN
|
|
Pneumatic pressure range
|
0.8Mpa
|
|
Post working range
|
360° full around
|
|
Cylinder capacity
|
10T
|
|
Maximum lift capacity
|
4000KGS
|
|
Packing size
|
5600*2130*350mm+750*750*1000+2150*1360*750mm/6cbm
|
|
Weight
|
2900kgs
|
Details Images
Customer Photos
Packing & Delivery
Package of tilt lifting auto body frame machine:
1.Accessories are in seaworthy wooden box;
2.Car benches are covered with carton and plastic material.
