Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RHINO
-
Dimension(L*W*H):
-
95x63x41cm
-
Weight (KG):
-
28 KG
-
Product name:
-

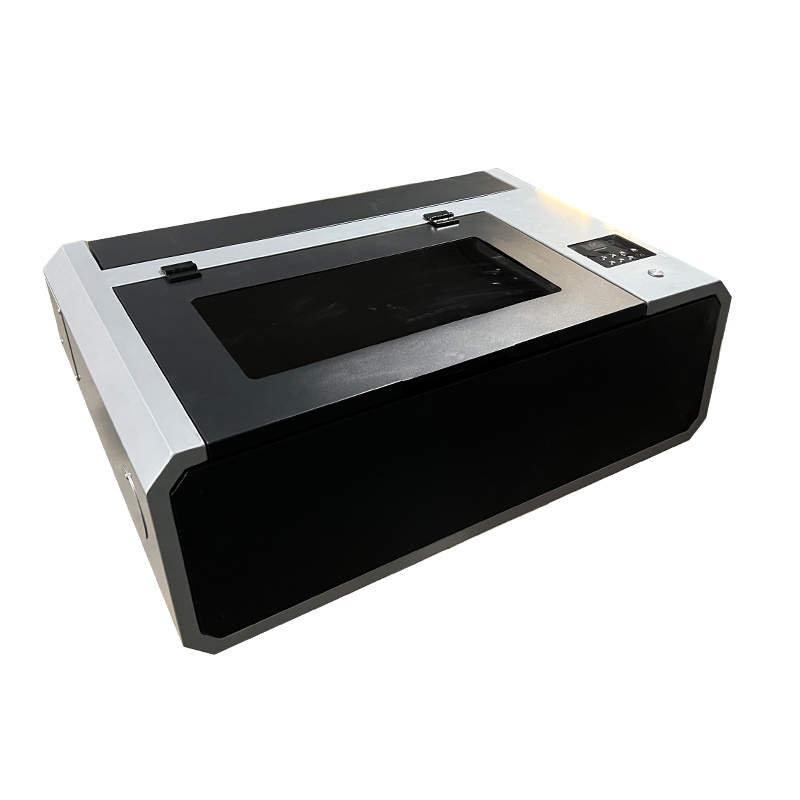

40W CO2 Laser cutting Machine
-
Keywords:
-
CO2 Laser cutting Machine
-
MOQ:
-
1
-
Function:
-
cutting non metal materials
-
Laser power:
-
40W
-
Motherboard:
-
M2
-
Software support:
-
Support Windows XP/7/8/10
-
Support material:
-
non metal
-
Laser wavelength:
-
1064nm
Quick Details
-
Engraving Area:
-
360*200mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-35mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RHINO
-
Dimension(L*W*H):
-
95x63x41cm
-
Weight (KG):
-
28 KG
-
Product name:
-
40W CO2 Laser cutting Machine
-
Keywords:
-
CO2 Laser cutting Machine
-
MOQ:
-
1
-
Function:
-
cutting non metal materials
-
Laser power:
-
40W
-
Motherboard:
-
M2
-
Software support:
-
Support Windows XP/7/8/10
-
Support material:
-
non metal
-
Laser wavelength:
-
1064nm
Product Description
Application Industry
Seal industry,art gift,shoe making,bamboo and wood pendant,garment,caps,leather bag industry etc.
Application Material
Rubber,acrylic,wood,cloth,leather,glass,crystal,jade and other non-metal materials.
Specification
|
Model
|
ITS-3020A
|
|
Laser type
|
CO2 laser
|
|
Laser power
|
40W/50W
|
|
Working area
|
300x200mm
|
|
Positioning accuracy
|
0.01mm
|
|
Mainboard
|
M2
|
|
Control Software
|
Corellaser+Laserdraw
|
|
Platform
|
Fixed platform/Aluminum platform/Cellular platform
|
|
Red-light position
|
No
|
|
Air-blowing
|
No
|
|
Up-down worktable
|
No
|
|
Water protection
|
No
|
|
Engraving speed
|
1-500mm/s
|
|
Cutting speed
|
1-30mm/s
|
|
System environment
|
WINDOWS XP/7/8/10
|
|
Supported Image format
|
JPG,TIFF,PSD,PNG,PDF..and other all the format supported
by CorelDRAW |
|
Guarantee
|
Machine 1 year (laser tube and mirrors 3 months)
|
|
Power supply
|
AC220±10% 50Hz/AC110±10% 60Hz
|
|
40W Machine dimension
|
80*50*26cm
|
|
40W Package dimension
|
95*66*41cm
|
|
50W Machine dimension
|
90*50*26cm
|
|
50W Package dimension
|
105*66*41cm
|
|
Packing weight
|
37kg
|
Product Details
RDworks Interface
Samples
Accessories Package
Packing&Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Workshop
Certification
FAQ
Q1. If we don't know how to use this machine, can you teach us?
A1: Yes, English instructions and videos will go with the machine.
Q2. How to operate?
A2: We'll send you the video. After watching the video, you can set up the machine yourself.
Q3. What are the terms of payment?
A3: You may send it by T/T, l/C, Western Union or confirmation.
A1: Yes, English instructions and videos will go with the machine.
Q2. How to operate?
A2: We'll send you the video. After watching the video, you can set up the machine yourself.
Q3. What are the terms of payment?
A3: You may send it by T/T, l/C, Western Union or confirmation.
