Quick Details
-
Model Number:
-
JSBAC075/100
-
Brand Name:
-
Jiasheng
-
Standard or Nonstandard:
-
Standard
-
Thread:
-
NPT, BSPP, BSPT
-
Guide and poppet:
-
POM
-
Protective sleeve:
-
PA66
-
Max. Pull:
-
3/4" for 250LBS±0.5%, 1" for 300LBS±0.5%
-
Flow rate:
-
3/4" for 60L/min, 1" for 90L/min
-
Certification:
-
GS
-
Name:
-
3/4 inch Breakaway Valve for Fuels Emergency Shut Off Valve
Quick Details
-
Port Size:
-
3/4", 1"
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
JSBAC075/100
-
Brand Name:
-
Jiasheng
-
Standard or Nonstandard:
-
Standard
-
Thread:
-
NPT, BSPP, BSPT
-
Guide and poppet:
-
POM
-
Protective sleeve:
-
PA66
-
Max. Pull:
-
3/4" for 250LBS±0.5%, 1" for 300LBS±0.5%
-
Flow rate:
-
3/4" for 60L/min, 1" for 90L/min
-
Certification:
-
GS
-
Name:
-
3/4 inch Breakaway Valve for Fuels Emergency Shut Off Valve
Choose us as your business partner,you will enjoy:
High quality,competitive price and prompt delivery
Experienced staff and professional service
Matched accessories can also be supplied
OEM&OEM Is acceptable
Main p roduc t s
Fuel transportation parts Quick coupling
Tank truck components V apor recovery parts
Flanges Ball valve Filters Manhole cover
API Adaptor W atering cart parts

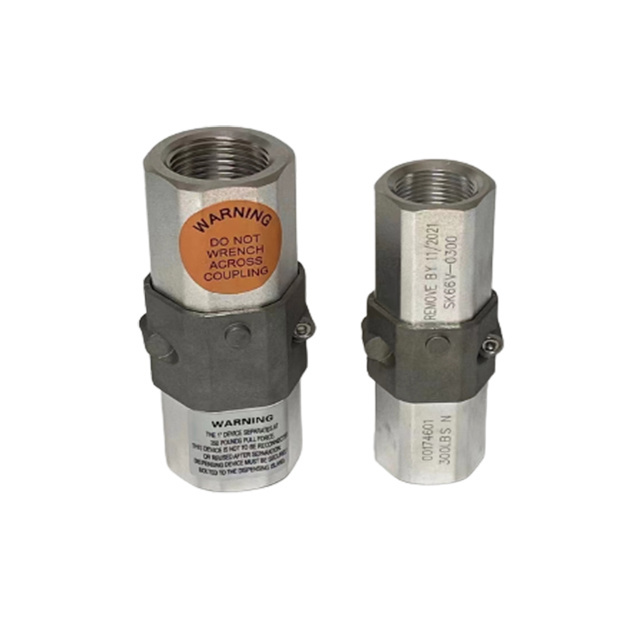

3/4 inch Breakaway Valve for Fuels Emergency Shut Off Valve
Emergency Breakaway Valve for Fuel Dispenser built with check valve are used for connecting the hose and the fuel dispenser. When the pull is too strong, the br eakaway will be broken and closed automatically
to avoid the fuel overflowing.
Feathers
1.Emergency break away valve is installed in the pipe of sending the fuel oil. When it is pulled
with force, it will divide.
2.The two valves come back to its position, and cut off the flow of the fuel oil in order to limit
the leakage of the oil and protect the machine.
3. Under the normal operation , 3/4" break away valve must be installed on the pipe, which its
stretchness is not less than 9 inch, 1" break away valve must be installed on the pipe, which its
stretchness is not less than 12 inch.
Technical Specification
| Product Name | 3/4 inch Breakaway Valve for Fuels Emergency Shut Off Valve |
|
Spring
Material
|
Stainless Steel
|
| Body Material | die cast zinc |
|
Guide and poppet
|
POM
|
|
Protective sleeve
|
PA66
|
|
Main seals
|
Viton
|
| Technics | Casting |
| Nominal Diameter | 3/4" , 1 " |
| Max. Pull | 3/4" for 250LBS±0.5%, 1" for 300LBS±0.5% |
| Flow rate | 3/4" for 60L/min, 1" for 90L/min |
| Medium | gasoline,kerosene,diesel,etc |
1).Factory direct price,more competitive,all kinds of mould available,matched accessories offered.
2).With our own factory,Strict control for every step of production,better control the quality and the delivery time
3).Mature technique,high quality,less defect product during production.
4).OEM &ODM accepted.
5).We can make new mould as your request.
6).After-sale service is guaranteed.
