Quick Details
-
Specification:
-
14.5-20mm
-
Length:
-
According to the customer request
-
Thickness:
-
5mm-7mm
-
Standard:
-
ISO9001:2008
-
Product name:
-
High pressure orange Flexible LPG / PVC gas hose/Gas Cooking Hose
-
Color:
-
Black,Red,,Yellow,Green and so on.
-
Application:
-
Conveying oil,gas under normal working conditions in the family.
-
Packing:
-
Non Woven Fabric,PE film.
-
Characteristics:
-
Flexible,durable,long lasting,and resistant to high pressure .
-
Working pressure:
-
0.3-0.8MPa
-
Bursting pressure:
-
0.6-1.8MPa
-
Working temperature:
-
-10-70℃
-
Shipment:
-
15 working days after receipt of order
-
Certification:
-
ISO9001-2008,CE,REACH
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YL
-
Model Number:
-
8mm
-
Specification:
-
14.5-20mm
-
Length:
-
According to the customer request
-
Thickness:
-
5mm-7mm
-
Standard:
-
ISO9001:2008
-
Product name:
-
High pressure orange Flexible LPG / PVC gas hose/Gas Cooking Hose
-
Color:
-
Black,Red,,Yellow,Green and so on.
-
Application:
-
Conveying oil,gas under normal working conditions in the family.
-
Packing:
-
Non Woven Fabric,PE film.
-
Characteristics:
-
Flexible,durable,long lasting,and resistant to high pressure .
-
Working pressure:
-
0.3-0.8MPa
-
Bursting pressure:
-
0.6-1.8MPa
-
Working temperature:
-
-10-70℃
-
Shipment:
-
15 working days after receipt of order
-
Certification:
-
ISO9001-2008,CE,REACH
product description

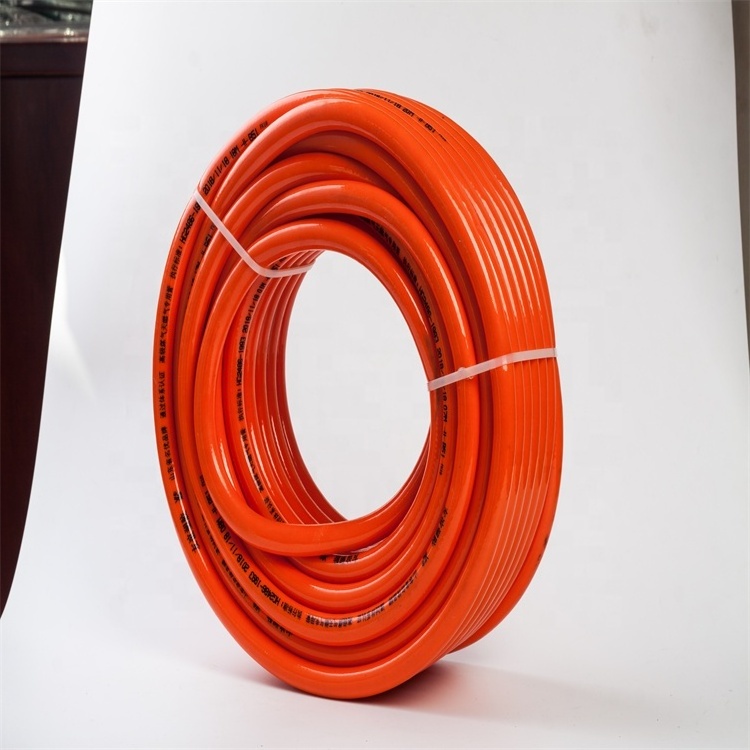

High pressure orange Flexible LPG / PVC gas hose/Gas Cooking Hose
| SPECIFICATIONS OF PVC GAS HOSE | ||||
|
Hose Beitish
Measurement |
Hose Metric Measurement | W.P. | B.P. | |
| I.D. | O.D. | |||
| Inch | mm | MPa | MPa | |
| 3/8 | 9 | 14.5 | 0.7 | 1.8 |
| 3/8 | 9 | 15 | 0.9 | 1.8 |
| 1/2 | 13 | 20 | 0.3 | 0.6 |
| SPECIFICATION OF HIGH PRESSURE GAS HOSE | ||||||
|
Hose British
Measurement |
Metric Measurement | W.P. | B.P. | Weight | ||
| I.D. | O.D. | Length | ||||
| Inch | mm | m | MPa | MPa | kg/roll | |
| 1/2 | 12 | 18 | 105 | 2.5 | 5.5 | 20 |
| 13 | 19 | 98 | 2.5 | 5.5 | 20 | |
| 5/8 | 16 | 22 | 83 | 2 | 4.5 | 20 |
| 3/4 | 19 | 25 | 70 | 2 | 4 | 20 |
| 20 | 26 | 68 | 2 | 4 | 20 | |
| 20 | 27 | 57 | 2 | 4.5 | 20 | |
| 1 | 25 | 33 | 41 | 1.5 | 4 | 20 |
♦ The high quality safety PVC gas hose can customize product according to customer requirements .
Product details
♦ The high quality safety PVC gas hose is made of superior PVC and rubber materials.
