Quick Details
-
Place of Origin:
-
Fujian, China
-
Frequency Range:
-
400-470MHz
-
Gain:
-
9dBi
-
Connector:
-
SO239
-
Polarization:
-
Vertical
-
Color:
-
Silver
-
VSWR:
-
1.5 Base Station Antenna
-
Material:
-
Aluminum Alloy
-
Antenna type:
-
High Gain Outdoor Antenna
-
Max power:
-
100w Car Antenna
-
Maximum input power (W):
-
100W Yagi Antenna
Quick Details
-
Type:
-

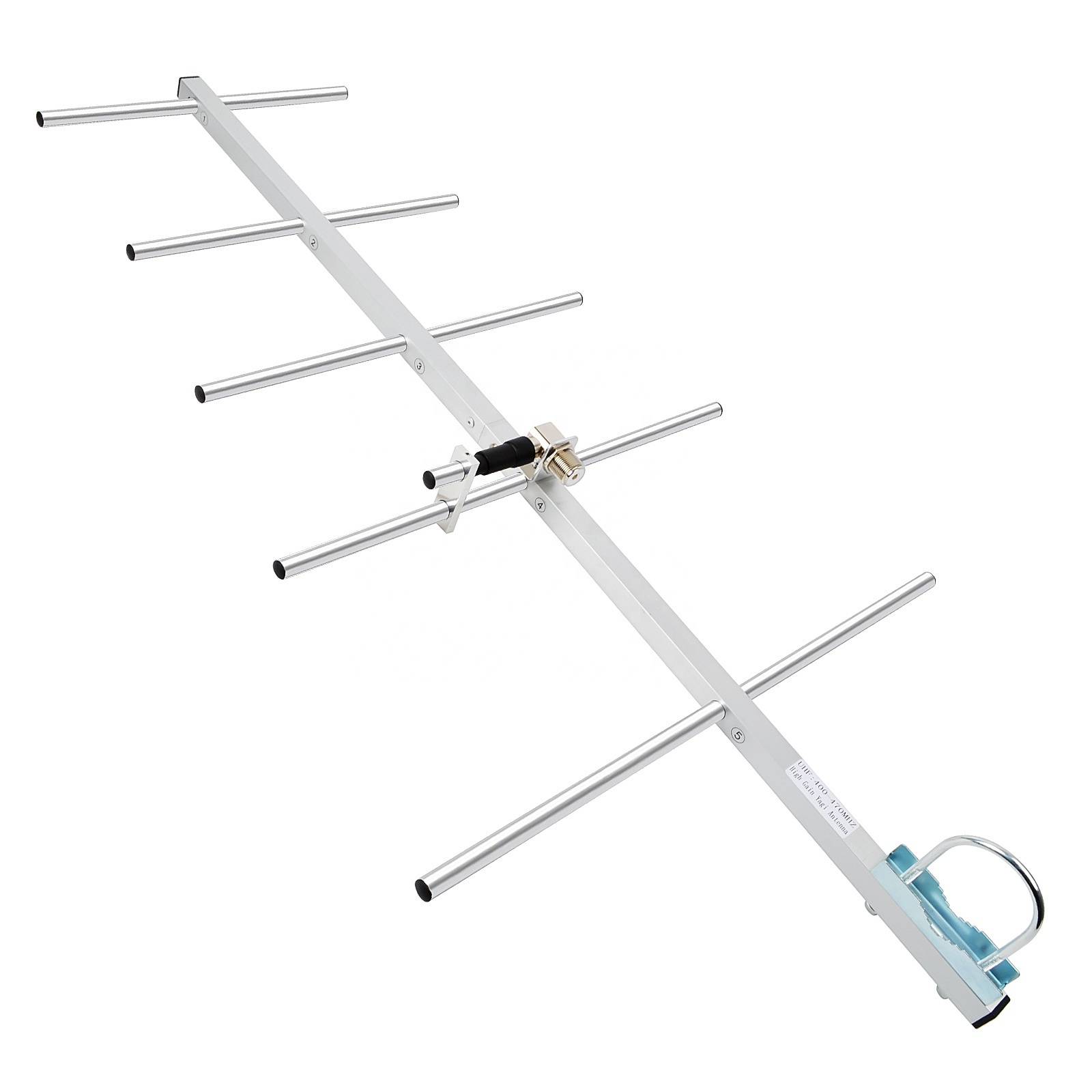

Yagi Antenna
-
Brand Name:
-
HYS
-
Model Number:
-
TC-YG05
-
Place of Origin:
-
Fujian, China
-
Frequency Range:
-
400-470MHz
-
Gain:
-
9dBi
-
Connector:
-
SO239
-
Polarization:
-
Vertical
-
Color:
-
Silver
-
VSWR:
-
1.5 Base Station Antenna
-
Material:
-
Aluminum Alloy
-
Antenna type:
-
High Gain Outdoor Antenna
-
Max power:
-
100w Car Antenna
-
Maximum input power (W):
-
100W Yagi Antenna
Frequency Range : 400~470 MHz
Bandwidth : 20MHz
Impedance : 50Ω
VSWR :
Gain : 9 dBi
Polarization : Vertical
Horizontal 3dB Beam Width : 58°
Vertical 3dB Beam Width : 40°
Front To Back Ratio : >15 dB
Maximum Power Input-watts : 100 W
Lighting Protection : Direct Ground
Connector : SL16.K (UHF FEMALE)
MECHANICAL SPECIFICATIONS
Length : 850 x 380x 48mm
Mounting hardware : Ø30~ Ø40 mm
Rated Wind Velocity : 60 m/s
Weight : 0.4Kg
