Quick Details
-
Customized support:
-
Yes
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kaige
-
Model Number:
-
KGS-B20-1
-
Operating Temperature:
-
-20~70 ℃
-
Type:
-
Private Model
-
Warranty:
-
3 Years
-
Frequency:
-
433MHz 315MHz Optional
-
Sensitivity:
-
-105dB
-
Rated Load:
-
<270V AC
-
Load Power:
-
≤50W
-
Control Distance:
-
1000M
-
Encoding Type:
-
Learning Code
-
Receiver Size:
-
40*48*23mm
-
Transmitter Size:
-
90*40*15mm
Quick Details
-
Max. Current:
-
5A
-
Max. Voltage:
-
12V DC
-
Network:
-
RF
-
Customized support:
-
Yes
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kaige
-
Model Number:
-
KGS-B20-1
-
Operating Temperature:
-
-20~70 ℃
-
Type:
-
Private Model
-
Warranty:
-
3 Years
-
Frequency:
-
433MHz 315MHz Optional
-
Sensitivity:
-
-105dB
-
Rated Load:
-
<270V AC
-
Load Power:
-
≤50W
-
Control Distance:
-
1000M
-
Encoding Type:
-
Learning Code
-
Receiver Size:
-
40*48*23mm
-
Transmitter Size:
-
90*40*15mm
Products Description

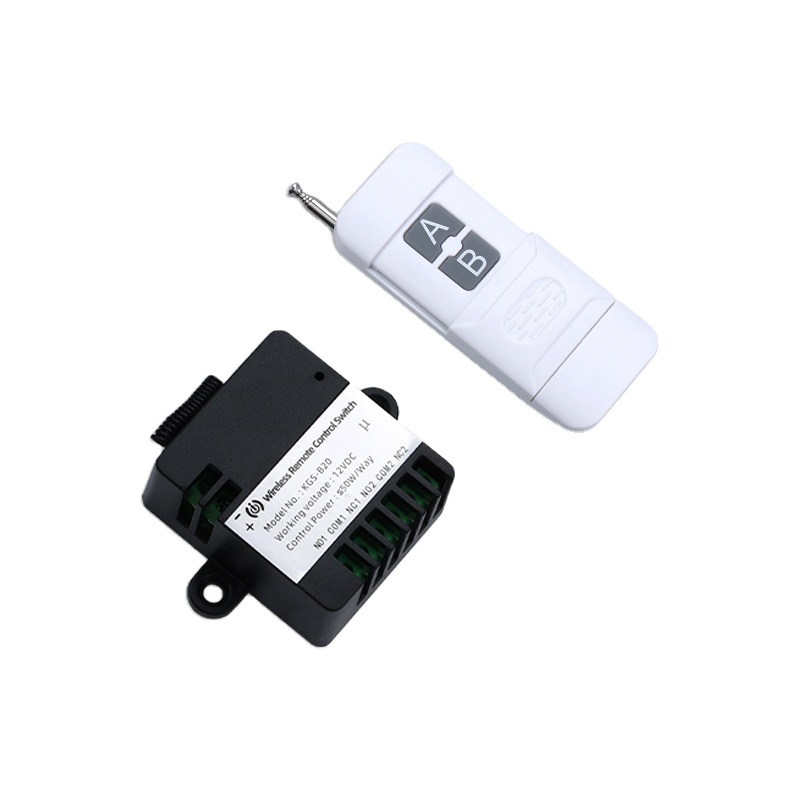

KGS-B20-1 Wireless Control Switch：
|
Model
|
KGS-B20-1
|
|
Working Voltage
|
12VDC
|
|
Load Power
|
≤50W
|
|
Encoding Type
|
Learning
|
|
Control Distance
|
1000M
|
|
Sensitivity
|
> -105dB
|
|
Contact Capacity
|
≤10A/125VAC; 10A/28VDC
|
|
Package
|
Receiver*1 and Transmitter*1. Manual*1
|
|
Weight
|
0.1KG
|
