Quick Details
-
Brand Name:
-
Goworld
-
Model Number:
-
CTS-2009
-
Description:
-
TOFD detector
-
Usage:
-
Ultrasonic testing
-
Theory:
-
Ultrasonic
-
MOQ:
-
1pc
-
Power supply:
-
Electronic
-
Multi-channel:
-
3+4+1
-
TOFD scan length:
-
40m
-
Application:
-
WS of Rail
-
Inspection:
-
A/B, TOFD
Quick Details
-
Warranty:
-
18 months
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China, Shantou, Guangdong
-
Brand Name:
-
Goworld
-
Model Number:
-
CTS-2009
-
Description:
-
TOFD detector
-
Usage:
-
Ultrasonic testing
-
Theory:
-
Ultrasonic
-
MOQ:
-
1pc
-
Power supply:
-
Electronic
-
Multi-channel:
-
3+4+1
-
TOFD scan length:
-
40m
-
Application:
-
WS of Rail
-
Inspection:
-
A/B, TOFD
Product Overview

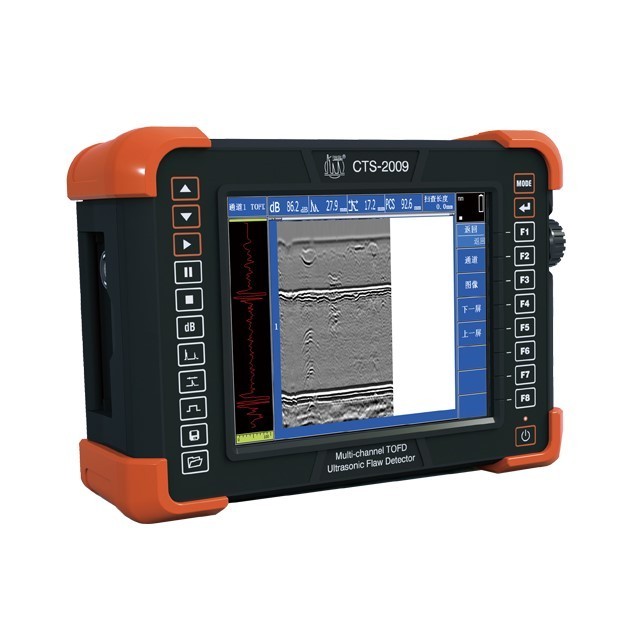

Model CTS-2009 is a multi-channel ultrasonic TOFD-speciallized detector.
Apart from capability to cover of 200mm-thick welds in one-time scan, it could visualized the flaws with SAFT.
Square wave drive technique enables it to be applied on high-atenuating materials.
Apart from capability to cover of 200mm-thick welds in one-time scan, it could visualized the flaws with SAFT.
Square wave drive technique enables it to be applied on high-atenuating materials.
Feature
* “3+4+1” Multi-channel Design; 3 TOFD channels can cover 200mm-thick welding seams in lieu of the traditional RT; 4 PE channel can cover surface deadzone and bottom deadzone of the seams; 3 TOFD channels and 4 PE channels all initiates from one cable. 1 spare channel is for single-channel TOFD scan and PE scan review.(Optional: 2 TOFD channels or 3 TOFD channels)
* Square Wave Drive, Hi-Fi & low noise preamplification, fine flaw recognition.
* Unique tech of noise-withholding from one channel to another, solution to the crosstalk problem of domestic multi-channel instruments.
* Compatible with EN12668-1.
* 11 inch Ind-level TFT Display (800×600), all-touch panel, effort-saving.
* 400MHz A/D Sampling Frequency, high sampling level.
* One-time TOFD scan length up to 40m.
* Multiple scan modes like A-scan, B-scan, and TOFD scan, etc.
* Varied data interfaces like double-USB, LAN network interface, and HDMI.
* Various kinds of scanners available as well as customized scanners.SCQtofd-3 is the configured scan.
* Avi-level cable, low signal loss, and flexible.
* loaded with all kinds of calibration modes: depth calibration according to direct-through wave and bottom echo wave; zeroing calibration according to direct-through wave; thick scale line calibration according to bottom echo wave; calibrations fit to various conditions.
* Integrated with multiple image-processing modes: SAFT, flatten-up, difference, contrast, zoom.
* Integrated with multiple flaw-marking modes: rectangle, length, height, arbitrary.
* Scanned Images can be copied to paste board, and transferred to the reports.
* Preset process parameter Cal-tools for camber scan and plate scan, for user's reference on process design.
* Off-line analyzing software fit for both CTS-1008plus and CTS-2009.
* Storage up to 16G (outsourced to MAX 32G), Data-length up to 5000mm (hightest precision); all-day long data recording.
* Square Wave Drive, Hi-Fi & low noise preamplification, fine flaw recognition.
* Unique tech of noise-withholding from one channel to another, solution to the crosstalk problem of domestic multi-channel instruments.
* Compatible with EN12668-1.
* 11 inch Ind-level TFT Display (800×600), all-touch panel, effort-saving.
* 400MHz A/D Sampling Frequency, high sampling level.
* One-time TOFD scan length up to 40m.
* Multiple scan modes like A-scan, B-scan, and TOFD scan, etc.
* Varied data interfaces like double-USB, LAN network interface, and HDMI.
* Various kinds of scanners available as well as customized scanners.SCQtofd-3 is the configured scan.
* Avi-level cable, low signal loss, and flexible.
* loaded with all kinds of calibration modes: depth calibration according to direct-through wave and bottom echo wave; zeroing calibration according to direct-through wave; thick scale line calibration according to bottom echo wave; calibrations fit to various conditions.
* Integrated with multiple image-processing modes: SAFT, flatten-up, difference, contrast, zoom.
* Integrated with multiple flaw-marking modes: rectangle, length, height, arbitrary.
* Scanned Images can be copied to paste board, and transferred to the reports.
* Preset process parameter Cal-tools for camber scan and plate scan, for user's reference on process design.
* Off-line analyzing software fit for both CTS-1008plus and CTS-2009.
* Storage up to 16G (outsourced to MAX 32G), Data-length up to 5000mm (hightest precision); all-day long data recording.
PRODUCT SPECIFICATIONS
|
Attenuator
|
Every 12dB ± 1dB
|
|
Equivalent Input Noise
|
<40×10-9 V/√HZ
|
|
Transmission Pulse
|
Negative square wave
Width 30~1000ns |
|
Test Modes
|
Single/Dual
|
|
Damping
|
400,80Ω
|
|
Frequency
|
0.5~22.5MHz
|
|
Gain
|
0.0~110.0dB
|
|
Velocity
|
1000~15000m/s
|
|
Coverage
|
0.0~10000mm
|
|
Rectification
|
Positive, Negative, full-play and RF
|
|
Threshold and Alarm
|
Triple thresholds/gates with optional hardware drive real-time alarm conditions
|
|
|
progressive wave, regressive wave and DAC figure; acoustic alarm signaling
|
|
|
Measure mode: peak, front edge
|
|
Display
|
Industrial-level TFT 8.4' WVGA color LCD, resolution 800×600
|
|
Pulse Shift
|
-7.5~3000μs
|
|
Probe Zeroing
|
0~999.9μs
|
|
Pulse Repetition Frequency
|
25~1000Hz, auto or manual
|
|
Vertical Linearity Error
|
≤4%
|
|
Horizontal Linearity Error
|
≤0.4%
|
|
Surplus Sensitivity
|
≥60dB
|
|
Resolution
|
≥34dB (5P14)
|
|
Dynamic Range
|
≥30dB
|
|
Reject
|
(0~90)%, without any cost of the linearity or gain
|
|
Noise Level
|
<10%
|
|
Port
|
C6,TOFD specializer,Encode
|
|
|
USB Host,LAN (RJ45) net,HDMI
|
|
|
Power Supply
|
|
Power Supply
|
Large capacity Li Batter with 4 hours life in uninterrupted service (service also to the display and brightness of the screen)
|
|
|
DC:12V adapter
|
|
Ultrasonic Standards
|
JB/T 10061-1999
|
|
|
EN12668-1
|
|
|
NB/T47013.10,DL/T330,GB/T 23902
|
|
Inner Storage
|
8G (could be extended to 32G)
|
|
Scan Reach
|
0~50000mm anto scroll, longest record of 200m
|
|
Record Mode
|
Raw Data
|
|
Sampling Depth
|
2048
|
Application
