Quick Details
Quick Details
-
Car Fitment:
-
Universal
-
Place of Origin:
-
Shanghai, China
-
Warranty:
-
1 Years
Products Description

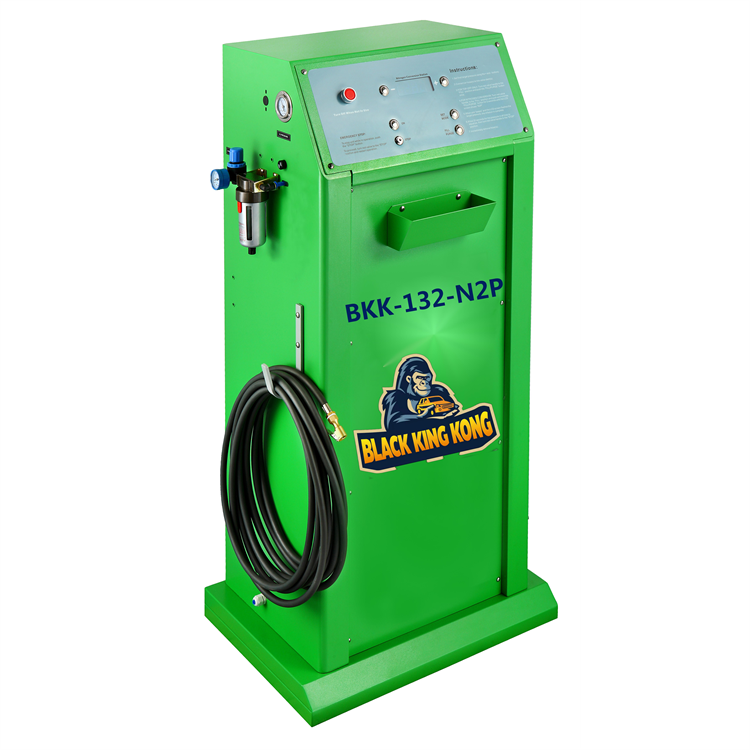

BKK-132-N2P
|
|
|
Nitrogen Generator and Conversion
|
|
|
System for Single Tyre Application
|
|
|
(Indoor)
|
|
|
Technical Data Summary
|
|
|
Dimensions (Height*Width*Depth)
|
1255mm*720mm*435mm
|
|
Net Weight
|
86kg/189.6lbs
|
|
Gross Weight
|
103kg/227.1lbs
|
|
Packing Size (Height*Width*Depth)
|
1380mm*730mm*510mm
|
|
Power Requirement
|
100-240Vac 50/60HZ
|
|
Power Consumption
|
40VA
|
|
Operating Temperature Range
|
-200C/-4°Fto 700C/158°F
|
|
Compressed Air Input Range
|
87-123PSI/6-8.5bar/600-850kPa
|
|
Compressed Air Input Flow
|
250L/min (8.0cfm)
|
|
Nitrogen Purity
|
95-99+%
|
|
Nitrogen Output
|
42L/min (1.5cfm) @116PSI/8bar/800kPa
|
|
|
Absorption pressure
|
|
Maximum Nitrogen Pressure in Tank
|
109PSI/7.5bar/750kPa
|
|
Operating Range
|
5-90PSI/0.3-6.2bar/35-620kPa
|
|
Resolution
|
1PSI/0.1bar/5kPa
|
|
Units of Measurement
|
PSI/bar/kPa
|
|
Main feature
|
|
|
■ Converts the tyre to Nitrogen at the touch of a button **
|
|
|
■ Auto-Start Inflation *
|
|
|
■ Over Pressure Setting (OPS)
|
|
|
■ Single Tyre Application
|
|
|
■ Suit for: Motorcycle, Car
|
|
|
Specifications
|
|
|
1. Generates nitrogen from your compressed air
|
|
|
2. Pre-Filter
|
|
|
3. 50L/13.2gal (us) internal nitrogen storage tank
|
|
|
4. Auto-start inflation
|
|
|
5. Automatic zero drift adjustment
|
|
|
6. Remain at last setting
|
|
|
7. Audible and visual end of the cycle signal indicators
|
|
|
8. Self-diagnostic features
|
|
|
9. Vandal resistant mechanical switches
|
|
|
10. Large backlight LCD display
|
|
|
11.1 Nos.*10M/32.8ft standard hose with single clip-on open type chuck
|
|
|
12. Comprehensive diagnostics and error reporting
|
|
|
13. Nitrogen purge and fill cycle (N2P)
|
|
|
14. Nitrogen purity test port
|
|
|
15. Adjustable over pressure setting (OPS)
|
|
|
16. Adjustable number of cycles
|
|
|
17. Adjustable lower purge pressure limit
|
|
|
18. Auto Shut-Off
|
|
|
19. 1 Nos. Nitrogen Outlet to connect the unit and your tyre inflation gun
|
|
BKK-135-N2P
|
|
|
Nitrogen Generator and Conversion
|
|
|
System for Single Tyre Application
|
|
|
(Indoor)
|
|
|
Technical Data Summary
|
|
|
Dimensions (Height*Width*Depth)
|
1255mm*720mm*435mm
|
|
Net Weight
|
90kg/198lbs
|
|
Gross Weight
|
108kg/238lbs
|
|
Packing Size (Height*Width*Depth)
|
1380mm*730mm*510mm
|
|
Power Requirement
|
100-240Vac 50/60HZ
|
|
Power Consumption
|
40VA
|
|
Operating Temperature Range
|
-200C/-4°Fto 700C/158°F
|
|
Compressed Air Input Range
|
87-123PSI/6-8.5bar/600-850kPa
|
|
Compressed Air Input Flow
|
250L/min (8.0cfm)
|
|
Nitrogen Purity
|
95-99+%
|
|
Nitrogen Output
|
50L/min (1.8cfm) @116PSI/8bar/800kPa
|
|
|
Absorption pressure
|
|
Maximum Nitrogen Pressure in Tank
|
109PSI/7.5bar/750kPa
|
|
Operating Range
|
5-90PSI/0.3-6.2bar/35-620kPa
|
|
Resolution
|
1PSI/0.1bar/5kPa
|
|
Units of Measurement
|
PSI/bar/kPa
|
|
Main feature
|
|
|
■ Converts the tyre to Nitrogen at the touch of a button **
|
|
|
■ Auto-Start Inflation *
|
|
|
■ Over Pressure Setting (OPS)
|
|
|
■ Single Tyre Application
|
|
|
■ Suit for: Motorcycle, Car, Light Truck
|
|
|
Specifications
|
|
|
1. Generates nitrogen from your compressed air
|
|
|
2. Pre-Filter
|
|
|
3. 50L/13.2gal (us) internal nitrogen storage tank
|
|
|
4. Auto-start inflation
|
|
|
5. Automatic zero drift adjustment
|
|
|
6. Remain at last setting
|
|
|
7. Audible and visual end of the cycle signal indicators
|
|
|
8. Self-diagnostic features
|
|
|
9. Vandal resistant mechanical switches
|
|
|
10. Large backlight LCD display
|
|
|
11.1 Nos.*10M/32.8ft standard hose with single clip-on open type chuck
|
|
|
12. Comprehensive diagnostics and error reporting
|
|
|
13. Nitrogen purge and fill cycle (N2P)
|
|
|
14. Nitrogen purity test port
|
|
|
15. Adjustable over pressure setting (OPS)
|
|
|
16. Adjustable number of cycles
|
|
|
17. Adjustable lower purge pressure limit
|
|
|
18. Auto Shut-Off
|
|
|
19. 1 Nos. Nitrogen Outlet to connect the unit and your tyre inflation gun
|
|
BKK-150-N2P
|
|
|
Nitrogen Generator and Conversion
|
|
|
System for 2-4 Tyres Simultaneous Inflation
|
|
|
(Indoor)
|
|
|
Technical Data Summary
|
|
|
Dimensions (Height*Width*Depth)
|
1310mm*720mm*620mm
|
|
Net Weight
|
111kg/245lbs
|
|
Gross Weight
|
137kg/302lbs
|
|
Packing Size (Height*Width*Depth)
|
1450mm*730mm*670mm
|
|
Power Requirement
|
100-240Vac 50/60HZ
|
|
Power Consumption
|
40VA
|
|
Operating Temperature Range
|
-200C/-4°Fto 700C/158°F
|
|
Compressed Air Input Range
|
87-123PSI/6-8.5bar/600-850kPa
|
|
Compressed Air Input Flow
|
280L/min(10.0cfm)
|
|
Nitrogen Purity
|
95-99+%
|
|
Nitrogen Output
|
57L/min (2.1cfm) @ 116PSI/8bar/800kPa
|
|
|
Absorption pressure
|
|
Maximum Nitrogen Pressure
|
109PSI/7.5bar/750kPa
|
|
Operating Range
|
5-90PSI/0.3-6.2bar/35-620kPa
|
|
Over Pressure Setting Range
|
0-29PSI/0-2.0bar/0-200kPa
|
|
Nitrogen Purges
|
0-9
|
|
Inflator Accuracy
|
±1PSI/0.07bar/7kPa
|
|
Resolution
|
1PSI/0.1bar/5kPa
|
|
Units of Measurement
|
PSI/bar/kPa
|
|
Main feature
|
|
|
■ Converts up to 2 tyres to Nitrogen simultaneously at the touch of a button **
|
|
|
■ Save 20% time than single tyre inflation **
|
|
|
■ Fully automated, fully programmable, micro-processor controlled conversion system
|
|
|
■ Suit for: Motorcycle, Car, Light Truck
|
|
|
Specifications
|
|
|
1. Generates nitrogen from your compressed air
|
|
|
2. Pre-Filter
|
|
|
3. 50L/13.2gal (us) internal nitrogen storage tank
|
|
|
4. Auto-start inflation
|
|
|
5. Automatic zero drift adjustment
|
|
|
6. Remain at last setting
|
|
|
7. Audible and visual end of the cycle signal indicators
|
|
|
8. Self-diagnostic features
|
|
|
9. Vandal resistant mechanical switches
|
|
|
10. Large backlight LCD display
|
|
|
11.2 Nos.*8M/26ft standard hoses with single clip-on closed chuck
|
|
|
12. Comprehensive diagnostics and error reporting
|
|
|
13. Nitrogen purge and fill cycle (N2P)
|
|
|
14. Nitrogen purity test port
|
|
|
15. Adjustable over pressure setting (OPS)
|
|
|
16. Adjustable number of cycles
|
|
|
17. Adjustable lower purge pressure limit
|
|
|
18. 4 air outlets allow simultaneous inflation of up to 4 tyres
|
|
|
19. Auto Shut-Off
|
|
|
20.1 Nos Nitrogen Outlet to connect the unit and your tyre inflation gun
|
|
BKK-160-N2P
|
|
|
Nitrogen Generator and Conversion
|
|
|
System for 4 Tyres Simultaneous Inflation
|
|
|
(Indoor)
|
|
|
Technical Data Summary
|
|
|
Dimensions (Height*Width*Depth)
|
1310mm*720mm*620mm
|
|
Net Weight
|
121kg/267lbs
|
|
Gross Weight
|
147kg/324lbs
|
|
Packing Size (Height*Width*Depth)
|
1450mm*730mm*670mm
|
|
Power Requirement
|
100-240Vac 50/60HZ
|
|
Power Consumption
|
40VA
|
|
Operating Temperature Range
|
-20°C/-4°Fto 70°C/158°F
|
|
Compressed Air Input Range
|
87-123PSI/6-8.5bar /600-850kPa
|
|
Compressed Air Input Flow
|
380L/min (13.0cfm)
|
|
Nitrogen Purity
|
95-99+%
|
|
Nitrogen Output
|
87L/min(3.1cfm)@ 116PSI/8bar/800kPa
|
|
|
Absorption pressure
|
|
Maximum Nitrogen Pressure in Tank
|
109PSI/7.5bar/750kPa
|
|
Operating Range
|
5-90PSI/0.3-6.2bar/35-620kPa
|
|
Over Pressure Setting Range
|
0-29PSI/0-2.0bar/0-200kPa
|
|
Nitrogen Purges
|
0-9
|
|
Inflator Accuracy
|
±1PSI/0.07bar/7kPa
|
|
Resolution
|
1PSI/0.1bar/5kPa
|
|
Units of Measurement
|
PSI/bar/kPa
|
|
Main feature
|
|
|
■ Converts up to 4 tyres to Nitrogen simultaneously at the touch of a button **
|
|
|
■ Save 30% time than single tyre inflation **
|
|
|
■ Fully automated, fully programmable, micro-processor controlled conversion system
|
|
|
■ Suit for: Motorcycle, Car, Light Truck
|
|
|
Specifications
|
|
|
1. Generates nitrogen from your compressed air
|
|
|
2. Pre-Filter
|
|
|
3. 50L/13.2gal (us) internal nitrogen storage tank
|
|
|
4. Auto-start inflation
|
|
|
5. Automatic zero drift adjustment
|
|
|
6. Remain at last setting
|
|
|
7. Audible and visual end of the cycle signal indicators
|
|
|
8. Self-diagnostic features
|
|
|
9. Vandal resistant mechanical switches
|
|
|
10. Large backlight LCD display
|
|
|
11.4 Nos.*8M/26ft standard hoses with single clip-on closed chuck
|
|
|
12. Comprehensive diagnostics and error reporting
|
|
|
13. Nitrogen purge and fill cycle (N2P)
|
|
|
14. Nitrogen purity test port
|
|
|
15. Adjustable over pressure setting (OPS)
|
|
|
16. Adjustable number of cycles
|
|
|
17. Adjustable lower purge pressure limit
|
|
|
18. 4 air outlets allow simultaneous inflation of up to 4 tyres
|
|
|
19. Auto Shut-Off
|
|
|
20.1 Nos Nitrogen Outlet to connect the unit and your tyre inflation gun
|
|
BKK-S170
|
|
|
||
High Pressure Nitrogen
|
|
|
||
Generator
|
|
|
||
(Indoor)
|
|
|
||
Technical Data Summary
|
|
|
||
Dimensions/Weight
|
Main Body
|
Tank
|
||
Height
|
1310mm/51.6"
|
1100mm/43.3"
|
||
Width
|
730mm/28.7"
|
400mm/15.7"
|
||
Depth
|
620mm/24.4"
|
400mm/15.7"
|
||
Net Weight
|
166kg/366lbs
|
38kg/83.8lbs
|
||
Gross Weight
|
202kg/446lbs
|
42kg/92.6lbs
|
||
Packing Size
|
Main Body
|
Tank
|
||
Height
|
1450mm/57.1"
|
1180mm/46.5"
|
||
Width
|
730mm/28.7"
|
440mm/17.3"
|
||
Depth
|
670mm/26.4"
|
440mm/17.3"
|
||
Power Requirement
|
|
100Vac/240Vac 50/60HZ,
|
||
Power Consumption
|
|
45VA
|
||
Operating Temperature Range
|
|
-20°C/-4°F to 70°C/158°F
|
||
Compressed Air Input Range
|
|
145-217PSI/10-15bar/1000-1500kPa
|
||
Compressed Air Input Flow
|
|
1300L/min (46cfm)
|
||
Nitrogen Purity
|
|
95-99+%
|
||
Nitrogen Output
|
|
232L/min (8.2cfm) @116PSI/8bar/800kPa
|
||
|
|
Absorption pressure
|
||
Maximum Nitrogen Pressure in Tank
|
|
145-174PSI/10-12bar/1000-1200kPa Adjustable
|
BKK-S170-N2P
|
|
|
||
High Pressure Nitrogen
|
|
|
||
Generator and Conversion System
|
|
|
||
(Indoor)
|
|
|
||
Technical Data Summary
|
|
|
||
Dimensions/Weight
|
Main Body
|
Tank
|
||
Height
|
1310mm/51.6"
|
1100mm/43.3"
|
||
Width
|
730mm/28.7"
|
400mm/15.7"
|
||
Depth
|
620mm/24.4"
|
400mm/15.7"
|
||
Net Weight
|
166kg/366lbs
|
38kg/83.8lbs
|
||
Gross Weight
|
202kg/446lbs
|
42kg/92.6lbs
|
||
Packing Size
|
Main Body
|
Tank
|
||
Height
|
1450mm/57.1"
|
1180mm/46.5"
|
||
Width
|
730mm/28.7"
|
440mm/17.3"
|
||
Depth
|
670mm/26.4"
|
440mm/17.3"
|
||
Power Requirement
|
100 Vac/240Vac50/60HZ,
|
|
||
Power Consumption
|
100VA
|
|
||
Operating Temperature Range
|
-20°C/-4°Fto 70°C/158°F
|
|
||
Compressed Air Input Range
|
145-217PSI/10-15bar/1000-1500kPa
|
|
||
Compressed Air Input Flow
|
1100L/min (39.0cfm)
|
|
||
Nitrogen Purity
|
95-99+%
|
|
||
Nitrogen Output
|
232L/min (8.2cfm)@ 116PSI/8bar/800kPa
|
|
||
|
Absorption pressure
|
|
||
Maximum Nitrogen Pressure in Tank
|
145-174PSI/10-12bar/1000-1200kPa,
|
|
||
Operating Range
|
5-162PSI/0.3-11.2bar/35-1120kPa
|
|
||
Over Pressure Setting Range
|
0-29PSI/0-2.0bar/0-200kPa
|
|
||
Nitrogen Purges
|
0-9
|
|
||
Inflator Accuracy
|
±1PSI/+0.07bar/7kPa
|
|
||
Resolution
|
1PSI/0.1bar/5kPa
|
|
||
Units of Measurement
|
PSI/bar/kPa
|
|
||
Main feature
|
|
|
||
■ 145PSI/10bar High nitrogen pressure make the unit a fit for almost any size automotive service facility **
|
|
|
||
■ Converts up to 6 tyres to Nitrogen simultaneously at the touch of a button **
|
|
|
||
■ Fully automated, fully programmable, micro-processor controlled conversion system
|
|
|
||
■ Suit for: Car, Light Truck, Bus
|
|
|
||
Specifications
|
|
|
||
1. Generates nitrogen from your compressed air
|
|
|
||
2. Pre-Filter
|
|
|
||
3.118L/31.1gal (us) external nitrogen storage tank
|
|
|
||
4. Auto-start inflation
|
|
|
||
5. Automatic zero drift adjustment
|
|
|
||
6. Remain at last setting
|
|
|
||
7. Audible and visual end of the cycle signal indicators
|
|
|
||
8. Self-diagnostic features
|
|
|
||
9. Vandal resistant mechanical switches
|
|
|
||
10. Large backlight LCD display
|
|
|
||
11.4 Nos.*8M/26ft standard hoses with single clip-on closed chuck
|
|
|
||
12. Comprehensive diagnostics and error reporting
|
|
|
||
13. Nitrogen purge and fill cycle (N2P)
|
|
|
||
14. Nitrogen purity test port
|
|
|
||
Adjustable! 5. Adjustable over pressure setting (OPS)
|
|
|
||
16. Adjustable number of cycles
|
|
|
||
17. Adjustable lower purge pressure limit
|
|
|
||
18. 6 air outlets allow simultaneous inflation of up to 6 tyres
|
|
|
||
19. Auto Shut-Off
|
|
|
||
20. 1 Nos Nitrogen Outlet to connect the unit and your tyre inflation gun
|
|
|
BKK-S-175
|
|
|
||
High Output Nitrogen Generator
|
|
|
||
(Indoor)
|
|
|
||
Technical Data Summary
|
|
|
||
Dimensions/Weight
|
Main Body
|
Tank
|
||
Height
|
1310mm/51.6"
|
1100mm/43.3"
|
||
Width
|
730mm/28.7"
|
400mm/15.7"
|
||
Depth
|
1000mm/39.4"
|
400mm/15.7"
|
||
Net Weight
|
323kg/712.5lbs
|
38kg/83.8lbs
|
||
Gross Weight
|
362kg/798.5lbs
|
42kg/92.6lbs
|
||
Packing Size
|
Main Body
|
Tank
|
||
Height
|
1450mm/57.1"
|
1180mm/46.5"
|
||
Width
|
730mm/28.7"
|
440mm/17.3"
|
||
Depth
|
1050mm/42.9"
|
440mm/17.3"
|
||
Power Requirement
|
100Vac/240Vac 50/60HZ,
|
|
||
Power Consumption
|
100VA
|
|
||
Operating Temperature Range
|
-20°C/-4°F to 70°C/158°F
|
|
||
Compressed Air Input Range
|
145-217PSI/10-15bar/1000-1500kPa
|
|
||
Compressed Air Input Flow
|
2200L/min (76. 3cfm)
|
|
||
Nitrogen Purity
|
95-99+%
|
|
||
Nitrogen Output
|
520L/min (18.3cfm) @ 116PSI/8bar/800kPa
|
|
||
|
Absorption pressure
|
|
||
Maximum Nitrogen Pressure in Tank
|
145-174PSI/10-12bar/1000-1200kPa Adjustable
|
|
||
Main feature
|
|
|
||
■ High Output, BKK-S-175 can inflate a 12.00R22.5
|
|
|
||
tyre from zero to 120PSI/8.2bar in only 2.9 minutes
|
|
|
||
■ Suit for: Motorcycle, Car, Light Truck, Bus
|
|
|
||
■ Suit for: Painting *
|
|
|
||
Specifications
|
|
|
||
1. Generates nitrogen from your compressed air
|
|
|
||
2. Auto Shut-Off
|
|
|
||
3. Pre-Filter
|
|
|
||
4. 118L/31.1gal (us) external nitrogen storage tank
|
|
|
||
5. 1 Nos.*10M/32.8ft standard hose with 2 quick couplers to
|
|
|
||
connect the unit and your tyre inflation gun
|
|
|
||
6. Nitrogen purity test port
|
|
|
BKK-175-N2P
|
|
|
||
High Output Nitrogen Generator and
|
|
|
||
Conversion System
|
|
|
||
(Indoor)
|
|
|
||
Technical Data Summary
|
|
|
||
Dimensions/Weight
|
Main Body
|
Tank
|
||
Height
|
1310mm/51.6"
|
1100mm/43.3"
|
||
Width
|
730mm/28.7"
|
400mm/15.7"
|
||
Depth
|
1000mm/39.4"
|
400mm/15.7"
|
||
Net Weight
|
323kg/712.5lbs
|
38kg/83.8lbs
|
||
Gross Weight
|
362kg/798.5lbs
|
42kg/92.6lbs
|
||
PackingSize
|
Main Body
|
Tank
|
||
Height
|
1450mm/57.1"
|
1180mm/46.5"
|
||
Width
|
730mm/28.7"
|
440mm/17.3"
|
||
Depth
|
1050mm/42.9"
|
440mm/17.3"
|
||
Power Requirement
|
100Vac/240Vac50/60HZ
|
|
||
Power Consumption
|
130VA
|
|
||
OperatingTemperatureRange
|
-20°C/-4°Fto 70°C/158°F
|
|
||
Max Inlet Compressed Air Supply
|
145-217PSI/10-15bar/1000-1500kPa
|
|
||
CompressedAir Input Flow
|
2200L/min (76. 3cfm)
|
|
||
Nitrogen Purity
|
95-99+%
|
|
||
NitrogenOutput
|
520L/min(18.3cfm) @116PSI/8bar/800kPa
|
|
||
|
Absorption pressure
|
|
||
Maximum Nitrogen Pressure in Tank
|
145-174PSI/10-12bar/1000-1200kPa Adjustable
|
|
||
Operating Range
|
5-162PSI/0.3-11.2bar/35-1120kPa
|
|
||
Over PressureSetting Range
|
0-29PSI/0-2.0bar/0-200kPa
|
|
||
NitrogenPurges
|
0-9
|
|
||
InflatorAccuracy
|
±1PSI/0.07bar/7kPa
|
|
||
Resolution
|
1PSI/0.1bar/5kPa
|
|
||
Units of Measurement
|
PSI/bar/kPa
|
|
||
Main feature
|
|
|
||
■ High Output, can inflate a 12.00R22.5 tyre from zero to 120PSI/8.2bar/820kPa in only 2.9 minutes
|
|
|
||
■ Converts up to 6 tyres to Nitrogen simultaneously at the touch of a button **
|
|
|
||
■ Fully automated, fully programmable, micro-processor controlled conversion system
|
|
|
||
■ Suit for: Car, Light Truck, Bus
|
|
|
||
Specifications
|
|
|
||
1. Generates nitrogen from your compressed air
|
|
|
||
2. Pre-Filter
|
|
|
||
3.118L/31.1gal (us) external nitrogen storage tank
|
|
|
||
4. Auto-start inflation
|
|
|
||
5. Automatic zero drift adjustment
|
|
|
||
6. Remain at last setting
|
|
|
||
7. Audible and visual end of the cycle signal indicators
|
|
|
||
8. Self-diagnostic features
|
|
|
||
9. Vandal resistant mechanical switches
|
|
|
||
10. Large backlight LCD display
|
|
|
||
11.4 Nos.*8M/26ft standard hoses with single clip-on closed chuck
|
|
|
||
12. Comprehensive diagnostics and error reporting
|
|
|
||
13. Nitrogen purge and fill cycle (N2P)
|
|
|
||
14. Nitrogen purity test port
|
|
|
||
15. Adjustable over pressure setting (OPS)
|
|
|
||
16. Adjustable number of cycles
|
|
|
||
17. Adjustable lower purge pressure limit
|
|
|
||
18. 6 air outlets allow simultaneous inflation of up to 6 tyres
|
|
|
||
19. Auto Shut-Off
|
|
|
||
20.1 Nos. Nitrogen Outlet to connect the unit and your tyre inflation gun/your spray gun
|
|
|
Related Products
Hot Searches
