Xincode Industrial Fixed Embedded 2D 1D QR Barcode Scanner Module Wall Mounted 1.3 MP Bar Code Reader Engine

Xincode Industrial Fixed Embedded 2D 1D QR Barcode Scanner Module Wall Mounted 1.3 MP Bar Code Reader Engine

FOB Reference Price: Get Latest Price

≥2 Pieces

US $110

≥101 Pieces

US $105

≥501 Pieces

US $100

≥1001 Pieces

US $95

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Optical Resolution:: 5mil

Scan Speed:: 300 Scans/sec

Brand Name:: Xincode

Place of Origin:: Guangdong, China

Nam:: 2D Industrial module

Max. frame rate:: 60 fps

Max. reading speed:: 30 codes/sec

Sensor size:: 1/4"

Interface:: 1280 X 1024

Data interface:: USB2.0 RS-232

Ingress protection:: IP54

Certification:: CE, RoHS, KC

Gain:: 1 dB to 15 dB

Communication protocol:: SmartSDK,USB, Serial

Quick Details

Type:: Barcode Scanner

Scan Element Type:: CMOS

Max Paper Size:: 30CM*30CM

Optical Resolution:: 5mil

Scan Speed:: 300 Scans/sec

Brand Name:: Xincode

Place of Origin:: Guangdong, China

Nam:: 2D Industrial module

Max. frame rate:: 60 fps

Max. reading speed:: 30 codes/sec

Sensor size:: 1/4"

Interface:: 1280 X 1024

Data interface:: USB2.0 RS-232

Ingress protection:: IP54

Certification:: CE, RoHS, KC

Gain:: 1 dB to 15 dB

Communication protocol:: SmartSDK,USB, Serial

HOT SALES

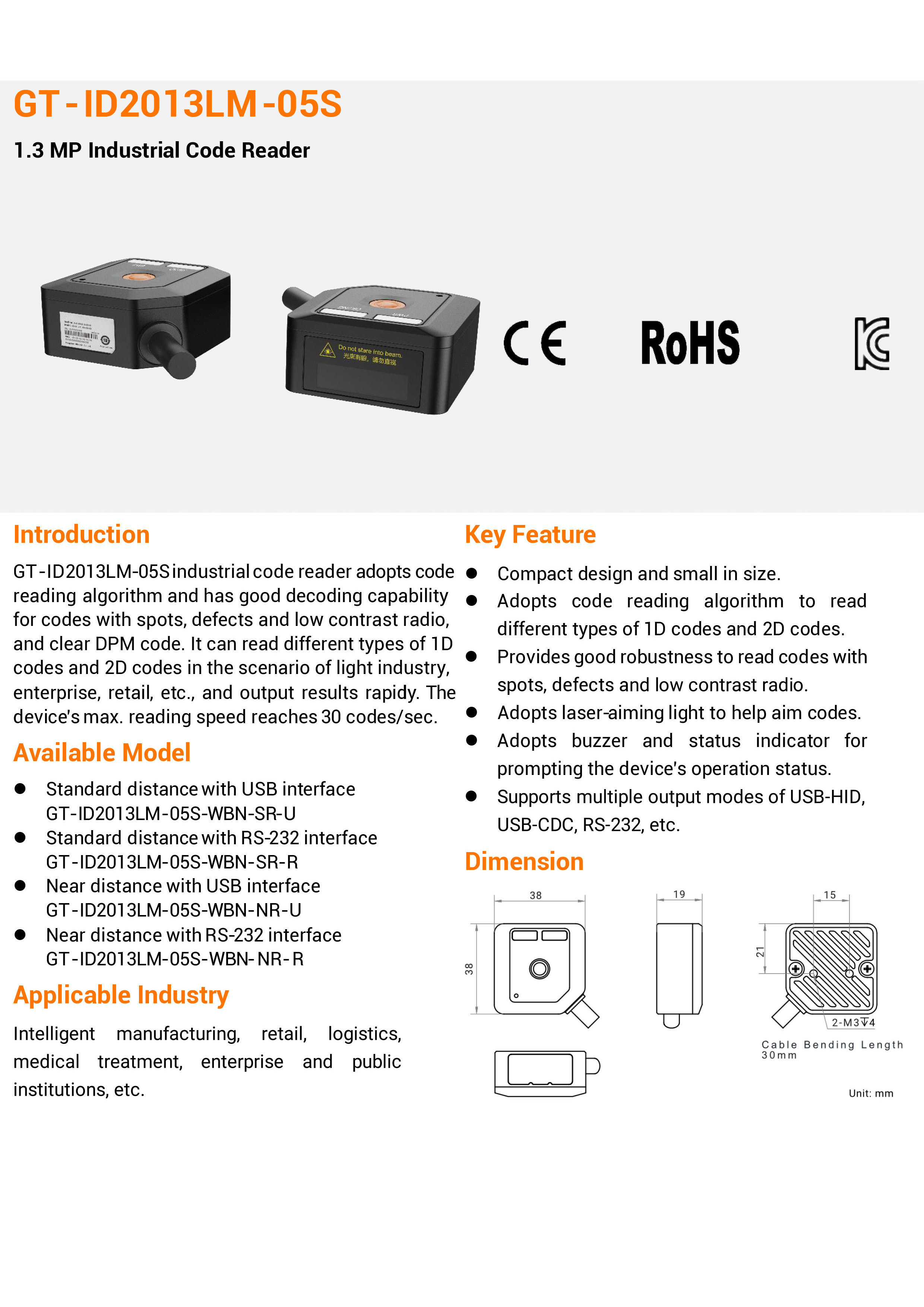

Model:

GT-ID2013LM-05S

1.3 MP Industrial Code Reader

Introduction

GT-ID2013LM-05Sindustrialcode reader adopts code

reading algorithm and has good decoding capability

for codes with spots, defects and low contrast radio,

and clear DPM code. It can read different types of 1D

codes and 2D codes in the scenario of light industry,

enterprise, retail, etc., and output results rapid

ly. The

device’s max. reading speed reaches 30 codes/sec.

Available Model

* Standard distance with USB interface

GT-ID2013LM-05S-WBN-SR-U

* Standard distance with RS-232 interface

GT-ID2013LM-05S-WBN-SR-R

* Near distance with USB interface

GT-ID2013LM-05S-WBN-NR-U

* Near distance withRS-232 interface

GT-ID2013LM-05S-WBN-NR-R

Technical Parameters

Production Flow

FAQ

1. How about the quality?

Professional QC team and testing machine(Engine age testing,wire bending machine,

switch life testing,shock resistance testing). All the products pass CE,FCC,ROSH,FDAetc.

2. Why so competitive?

With almost 10 years experience,we owned a large domestic market in China.

We are the best seller in China. So large quantity will reduce our raw material cost directly.

What's more,we have mature technology to save cost.

3. How to control the performance stable?

We take the flow line production in the whole processing.

Every product will test 4 times at least before it delivery.

4. Is OEM or ODM available?

Yes.We are the factory directly. We can make it as your requirement.

5. Why customer choose us?

ISO9001&ISO14001 factory with strictly quality control system. Prompt after-sales service.

6 . How about the factory?

We have more than 200 workers with advanced dust-free plant. We are approved the new high-tech

enterprise by the government. Owned many technical and design patents in different professional fields.

Packing Details

Carton Size (CM)	G.W.(KG)	PCS/CTN	Box Size(CM)	Item No.
49X31.5X46CM	9.6~13.8	40	14X11.4X8.3	GT-799/GT-770/GT-725
50x26.5x45CM	8.8~12.6	20	21X12.5X9.2	X-1200/X-1901B/X-6301C/X-1901C/x-6301B/GT-9208
54.5X30X59CM	12.55	30	17.5X14X11.3	GT-790
60x45x38.5CM	14.2~17.5	50	18X11.5X8.5	M-3100/X-530/X-760B/X-9700/X-9701/X-9201/GT-1900/X-600/X-660/X-620
60x45x38.5CM	14.2~19.4	100	15X9X5	X-9700M/X-7200/GT-780
