1.本产品仅限室内使用，禁止在室外和雨水淋到的地方使用； 2.接电前请确认电压是否符合参数范围内，非标值电压可能会损坏灯具。 3.初步预算所需光源数量，然后根据单光源的额定功率计算出总功耗，进而进行配电方案设计。
4.在拆开包装使用前，请确认灯具有没有在运输过程中出现损坏，若有，请立即通知你的供货商进行更换。 5.安装前确保安装位置可以承受10倍于该产品的重量；安装于无震动，无摇摆，无火灾隐患的平坦地方。
6.灯具为半导体照明产品，对环境温度特别敏感，工作环境温度高于55℃时其使用寿命会大大缩短，故应让灯具远离发热源，保持工作环境的通风透气； 注意：所有信息如有改动恕不另作通知，如有疑问，请联系供货商。
- Product Details
- {{item.text}}
Quick Details
-
Color Temperature(CCT):
-
3000k-6500k
-
Product Weight（kg）:
-
0.2
-
CRI (Ra>):
-
80
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
BY-JH-12
-
Brand Name:
-
BOYU
-
Input Voltage(V):
-
AC 100-277V 50-60Hz
-
Working Lifetime(Hour):
-
50000
-
Lamp Luminous Flux(lm):
-
100Lm/W
-
Item Type:
-
Tube Lights
-
Lamp Body Material:
-
aluminum
-
power:
-
18W/36W/45W/54W
-
Length:
-
600mm/1200mm/1500mm/1800m'm
-
Installation method:
-
surface mounted
-
Power Factor:
-
0.95
-
driver:
-
iso-lated driver
-
material:
-
Aluminum Alloy+PC Shell
-
Application:
-
home , office , surpermarket, school
-
model:
-
BY-ZH
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
IP Rating:
-
ip44
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
3000k-6500k
-
Product Weight（kg）:
-
0.2
-
CRI (Ra>):
-
80
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
BY-JH-12
-
Brand Name:
-
BOYU
-
Input Voltage(V):
-
AC 100-277V 50-60Hz
-
Working Lifetime(Hour):
-
50000
-
Lamp Luminous Flux(lm):
-
100Lm/W
-
Item Type:
-
Tube Lights
-
Lamp Body Material:
-
aluminum
-
power:
-
18W/36W/45W/54W
-
Length:
-
600mm/1200mm/1500mm/1800m'm
-
Installation method:
-
surface mounted
-
Power Factor:
-
0.95
-
driver:
-
iso-lated driver
-
material:
-
Aluminum Alloy+PC Shell
-
Application:
-
home , office , surpermarket, school
-
model:
-
BY-ZH
Product Description
Installation Instructions
Project installation
installed in the supermarket，parking lot，office，factory，warehouse，school，channels
Product Paramenters
|
General
|
General
|

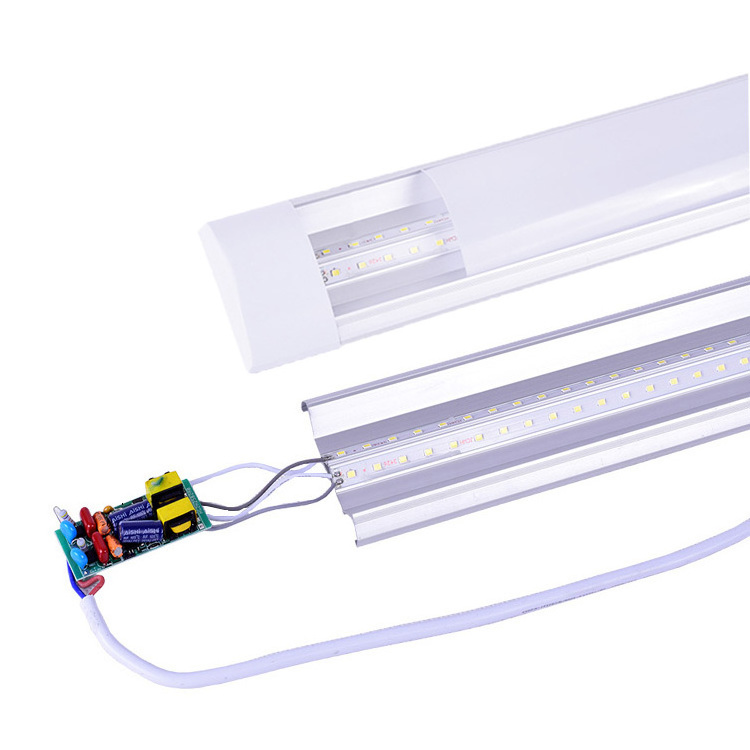

LED linear light&LED tube light
|
|
|
|
|||
|
Information
|
Model No.
|
BY-ZH-18W
|
BY-ZH-36W
|
BY-ZH-45W
|
BY-ZH-54W
|
|||
|
Electrical Information
|
Chip
|
SMD 2835 0.2w
|
|
|
|
|||
|
|
Warranty
|
3 years
|
|
|
|
|||
|
|
Power(W)
|
18W/36W/45W/54W
|
|
|
|
|||
|
|
Voltage
|
AC100-265V 50-60Hz
|
|
|
|
|||
|
|
Surge protection
|
2.5KV
|
|
|
|
|||
|
|
Driver efficiency
|
>90%
|
|
|
|
|||
|
|
Power factor
|
0.95
|
|
|
|
|||
|
Optical Information
|
Luminous
efficacy(Lm/w)
|
120Lm/W
|
120
|
120
|
120
|
|||
|
|
CRI
|
80
|
|
|
|
|||
|
|
Color temperature
|
3000k/4000k/6500k
|
|
|
|
|||
|
|
Chip (PCS)
|
20
|
30
|
60
|
120
|
|||
|
|
Beam angle
|
120°
|
|
|
|
|||
|
Mechanical Information
|
Housing material
|
Aluminum+Optical PC
|
|
|
|
|||
|
|
Working
temperature
|
—40℃~50℃
|
|
|
|
|||
|
|
IP Rating
|
IP44
|
|
|
|
|||
|
Packaging Information
|
Product size(MM)
|
600*72*25
|
1200*72*25
|
1500*72*25
|
1800*72*25
|
|||
|
|
Packing size(MM)
|
625*28*18
|
1240*28*18
|
1540*28*18
|
1840*28*18
|
|||
