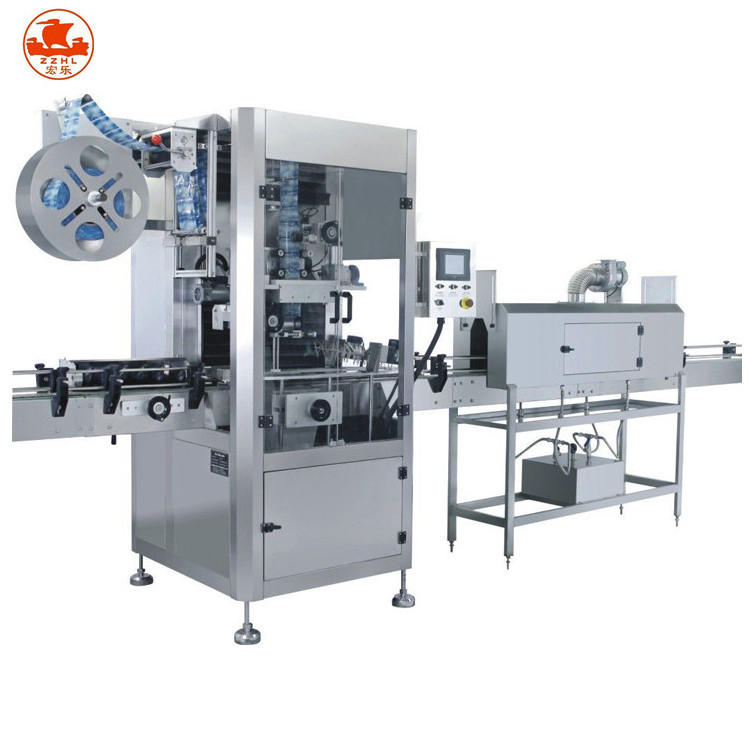

Automatic pvc heating bottle shrink sleeve Labeling Machine /Shrink sleeve applicator with steam tunnel

Automatic pvc heating bottle shrink sleeve Labeling Machine /Shrink sleeve applicator with steam tunnel

FOB Reference Price: Get Latest Price

≥1 Sets

US $4900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220V/50HZ

Place of Origin:: China

Brand Name:: HL

Dimension(L*W*H):: 1950mm*1200mm*1530mm

Weight:: 200 KG

Name:: bottles labeling machine

Product name:: china plastic drink jar labeling machine

Bottle type:: Round Bottle Jars Cans

Advantage:: all kinds of bottle

Speed:: 25~50p/min

Labeling accurate:: ±1mm

Product scope:: Diameter 25mm~100mm,height25mm~300mm

Usage:: Bottle Sleeve Labeling Machine

Function:: Horizontal Sleeve Labeling Machine

Keyword:: shrink labeling machine pvc heat shrink machine

Quick Details

Application:: Food, Beverage, Commodity, Chemical

Packaging Type:: Bottles

Packaging Material:: Glass, Metal, Plastic

Voltage:: 220V/50HZ

Place of Origin:: China

Brand Name:: HL

Dimension(L*W*H):: 1950mm*1200mm*1530mm

Weight:: 200 KG

Name:: bottles labeling machine

Product name:: china plastic drink jar labeling machine

Bottle type:: Round Bottle Jars Cans

Advantage:: all kinds of bottle

Speed:: 25~50p/min

Labeling accurate:: ±1mm

Product scope:: Diameter 25mm~100mm,height25mm~300mm

Usage:: Bottle Sleeve Labeling Machine

Function:: Horizontal Sleeve Labeling Machine

Keyword:: shrink labeling machine pvc heat shrink machine

Automatic heating bottle shrink sleeve Labeling Machine /Shrink sleeve applicator with steam tunnel

Product Description

The machine widely applicable industries, products, mainly is suitable for all kinds of containers, shrink film packaging of various shapes and materials (such as: food and beverage, cleaning supplies, cosmetic and so on all kinds of plastic bottles,

glass bottles, PVC, PET, PS, tin and other containers), can be fully wired with production line operation and single operation, empty bottles or can packaging use after filling, automatic fast packaging, save a lot of artificial cost, at the same time greatly improve product packaging effect.

Product feature:

1.Body is all covered stainless steel: water proof and no rustiness

2.Adjustable knife plan: original creation, double side edge of knife, long service time

3.Single fixed position center shaft, label transferring more stability

4.Stepper unscramble, label transferring more stability

5.label brush: sleeve more accurate and correction

6.Frame of label control electric eye: original creation tail wing connect with electric eye, improve accuracy of film cutting

7.Key type control box, more humanity

8.Material supplying frame: can select frame position freely

9.electric configuration description

10.Adopt PLC programable controller, imported servo motor, servo drive, frequency and sensor, also the fixed position frame to sure

labeling accurate,fast and stability .

11.Suitable product’s type

All kinds of bottle, for example: round bottle,square bottle,flat bottle,curved bottle,cup and so on.

Name	Specification	Qty .
1. Automatic sleeve labeling machine ( label sleeve and steam shrinkable oven )	Labeling speed About 60-150pcs/min( as per size of product and label ) Labeling accurate ±1mm ( no mistake of product and label ) Product scope Diameterφ28mm -φ125mm, Height30mm - 280mm Label scope Length30~ 250mm(perimeter ) Dimension : Mainframe:L2000mmW1100mm H2000mm oven:L1500mmW600mmH1500 220V single phase 3KW	1SET
2.steam generator	(Customers can buy by themselves in local or from us ) 380V 3phase 18KW	1SET
3.Mould	Customized according to client ’ s cans dimension .	1 SET
