Quick Details
-
Model Number:
-
GL2400-24
-
Dimension (L x W x H):
-
817 x 15 x 63.5cm
-
Type:
-
24 channel Live Mixer Mixing Console
-
Application:
-
Live Show
-
Color:
-
Blue
-
Material:
-
Plastic and Iron
-
Mic/Line Inputs:
-
24
-
AUX Sends:
-
6
-
BUS (Group) Outputs:
-
4 Groups output
-
Phantom Power:
-
+48 Volt Phantom Power (all mono channels)
-
Production time:
-
15 Days
-
Certificate:
-
CCC
Quick Details
-
Power:
-
110V or 220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
GL2400-24
-
Dimension (L x W x H):
-
817 x 15 x 63.5cm
-
Type:
-
24 channel Live Mixer Mixing Console
-
Application:
-
Live Show
-
Color:
-
Blue
-
Material:
-
Plastic and Iron
-
Mic/Line Inputs:
-
24
-
AUX Sends:
-
6
-
BUS (Group) Outputs:
-
4 Groups output
-
Phantom Power:
-
+48 Volt Phantom Power (all mono channels)
-
Production time:
-
15 Days
-
Certificate:
-
CCC
Product Description

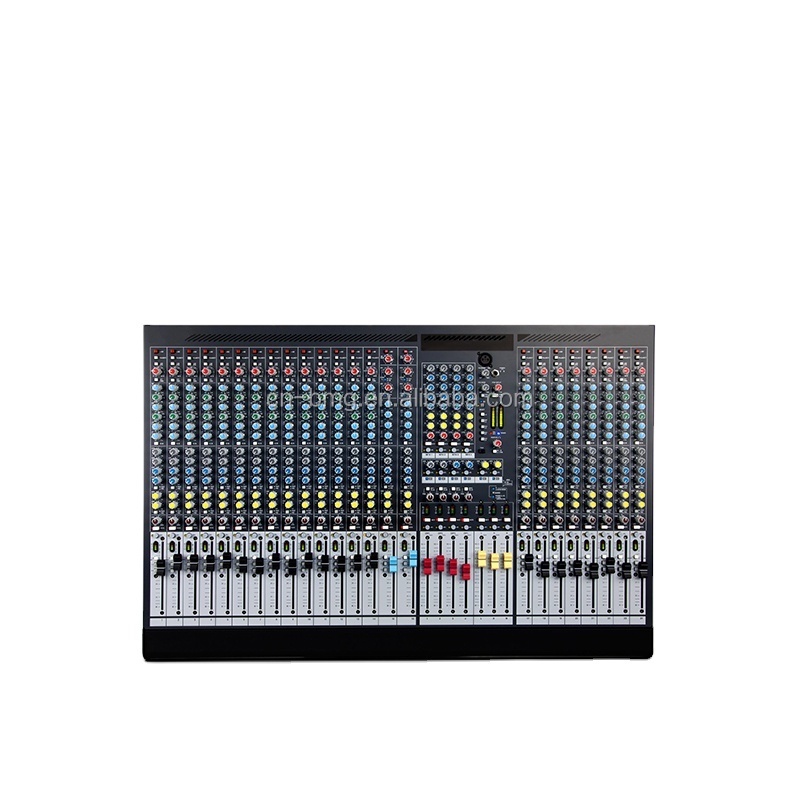

Allen Heath GL2400-24 24-Input, 4-Buss Live Sound Reinforcement Analog Mixing Console
Key Features:
1. Outstanding Performance
2. 7 X 4 Matrix Routing
3. 6 Auxiliary Sends
4. 4-Sub Group Outputs
5. Dual 4-pin male Gooseneck Lamp connections
Applications:
1. Live club performance
| Model | GL2400-24 |
| MIC/Line Input Channels | 24 |
| Stereo Output Channels | 4 |
| Microphone Interface Phantom Power | +48V |
| Frequency Response | -20Hz~20KHz ±1dB |
| Total Harmonic Distortion | <-0.005% |
| Signal to noise ratio(S/N) | >78dB @ 1KHz 0dB |
| Channel Crosstalk | ≥80dB @ 1KHz |
| Gain Control | Mono -51dB~0dB; Stereo -26dB~0dB |
| Earphone output | 12dB±1.5dB @ 1KHz 32Ω |
| Aux Maximum Unbalanced Output | 19dB±1.5dB |
| Gain Difference between each Channel | ≤2dB |
| Effector | 16 kinds of dsp effectors |
| Channel Clipping Indicator | 3dB clipping level ahead instruction |
| Power Supply | 110~240 V |
| Power Output | NO |
| Product Dimension | 817 x 15 x 63.5cm |
| Net Weight | 21.0 KG |
| MP3/USB/SD Card | No |
| Bluetooth Player | No |
| Audio Recording | YES |
