Quick Details
-
Fork Length:
-
1070
-
Fork Width:
-
125
-
Overall Dimensions:
-
1070*125*50
-
Weight (KG):
-
5900 kg
-
Type:
-
Forklift
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LONKING
-
Fork Length:
-
1070
-
Fork Width:
-
125
-
Overall Dimensions:
-
1070*125*50
-
Weight (KG):
-
5900 kg
-
Type:
-
Forklift
Exhibition
ABOVE
You can just
click
what you are interested.
If you need any informaition, welcome to contact me.
Please leave a message at the bottom of the details page.
Products Description
Logistics Equipment

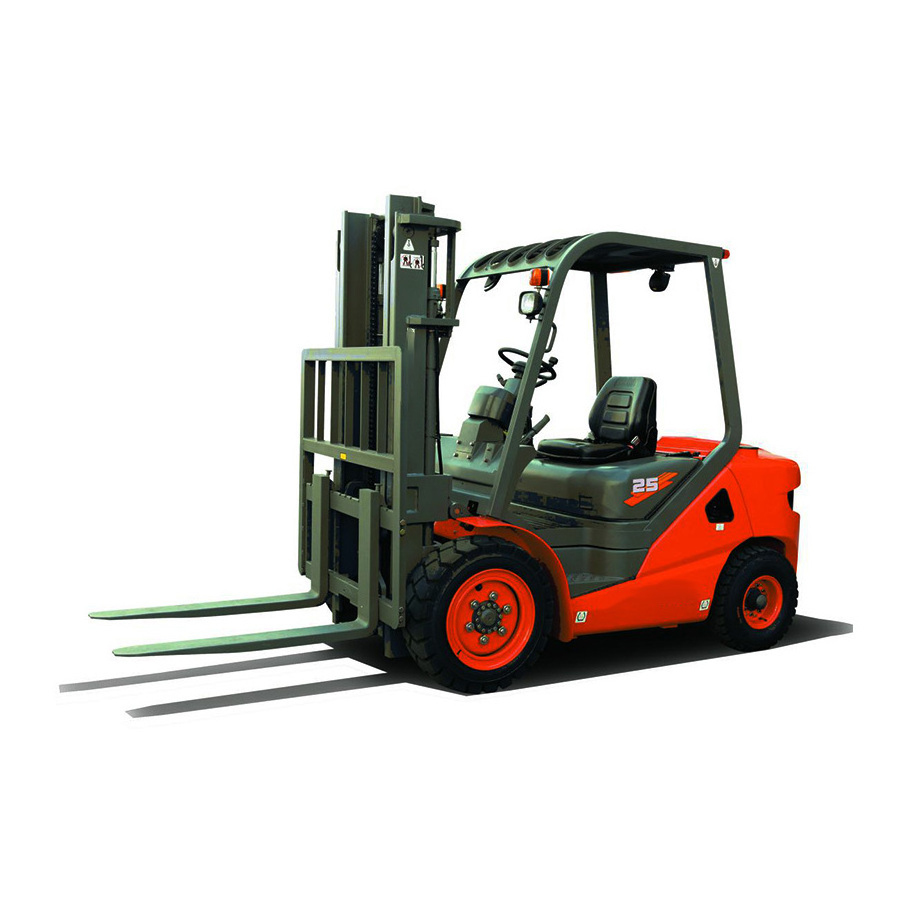

LPG forklift
LG35GLT
Logistics Equipment LG35GLT features:
Liquefied Petroleum Gas Forklift
The 3rd Generation Forklift Appearance
Equipped with Nissan/Guangqin Engine
Advanced Ergonomical Design
Large Capacity Radiator
Wide View Mast
Double Suspended Structure
Liquefied Petroleum Gas Forklift
The 3rd Generation Forklift Appearance
Equipped with Nissan/Guangqin Engine
Advanced Ergonomical Design
Large Capacity Radiator
Wide View Mast
Double Suspended Structure
|
MODEL
|
|
|
LG35GLT
|
|
|
Power type
|
|
|
Gasoline/LPG
|
|
|
Rated capacity
|
|
kg
|
3500
|
|
|
J Load center
|
|
mm
|
500
|
|
|
H1 STD Max. lifting height
|
|
mm
|
3000
|
|
|
H3 Free lifting height
|
|
mm
|
170
|
|
|
L5×W×T STD Fork size
|
|
mm
|
1070×125×50
|
|
|
Mast tilt angle
|
|
deg
|
6/12
|
|
|
L3 Front overhang
|
|
mm
|
498
|
|
|
L4 Rear overhang
|
|
mm
|
550
|
|
|
Overall dimension |
L Overall length(with fork)
|
mm
|
3898
|
|
|
|
W1 Overall width
|
mm
|
1250
|
|
|
|
H2 STD Mast lowered height
|
mm
|
2180
|
|
|
|
H4 Overhead guard height
|
mm
|
2150
|
|
|
R1 Min. turning radius
|
|
mm
|
2530
|
|
|
Min. intersecting aisle
|
|
mm
|
4225
|
|
|
Max. traveling speed, load/unload
|
|
km/h
|
18.5/20
|
|
|
Max. lifting speed, load/unload
|
|
mm/s
|
400/420
|
|
|
Max. gradient
|
|
%
|
20
|
|
|
Self weight
|
|
kg
|
4635
|
|
|
S/P Tread, front/rear
|
|
mm
|
1030/980
|
|
|
L2 Axle distance
|
|
mm
|
1750
|
|
|
Min. ground clearance
|
M1 Frame
|
mm
|
130
|
|
|
|
M2 Mast
|
mm
|
165
|
|
|
STD Engine
|
|
|
NISSAN K25
|
|
|
Rated power
|
|
kw
|
35.6
|
|
