Quick Details
-
Brand Name:
-
RC
-
Liquid Flow Rate:
-
4mmbtu/h
-
Maximum Working Pressure:
-
Based
-
Weight:
-
2000 KG
-
Dimension(L*W*H):
-
7.4m*2.1m*2.4m
-
Working Temperature Range:
-
200℃
-
Description:
-

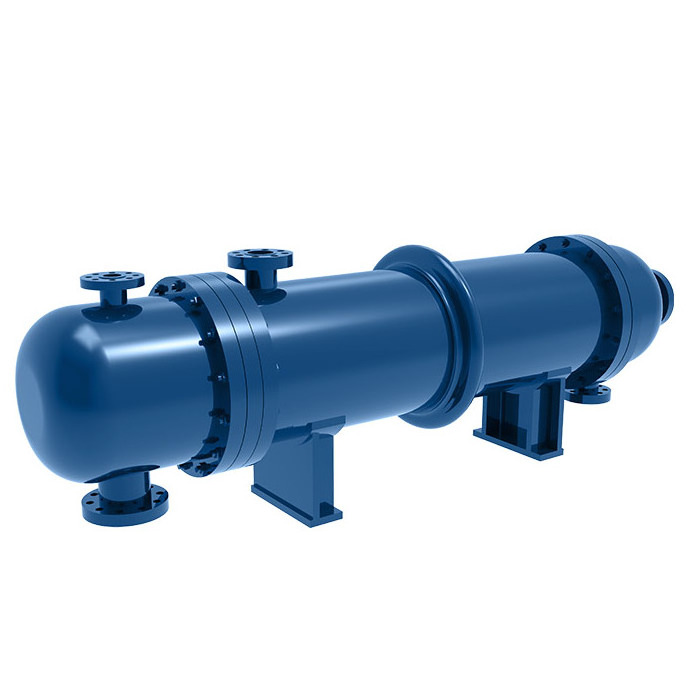

Stainless steel shell and tube heat exchanger
-
CODES&SPECIFICATIONS:
-
GB/T150-2011.GB/T151-2014
-
EFF.SURFACE AREA:
-
258 M2
-
Design temperature:
-
200℃
-
Work pressure:
-
0.5MPa
-
Design pressure:
-
1.6MPa
-
Corrosion allowance:
-
3.0mm
-
Equipment mass:
-
19200kg
-
Proof press test:
-
2.07MPa
-
Outside surface area:
-
35M3
Quick Details
-
Structure:
-
Tube Heat Exchanger
-
Voltage:
-
Customized
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
RC
-
Liquid Flow Rate:
-
4mmbtu/h
-
Maximum Working Pressure:
-
Based
-
Weight:
-
2000 KG
-
Dimension(L*W*H):
-
7.4m*2.1m*2.4m
-
Working Temperature Range:
-
200℃
-
Description:
-
Stainless steel shell and tube heat exchanger
-
CODES&SPECIFICATIONS:
-
GB/T150-2011.GB/T151-2014
-
EFF.SURFACE AREA:
-
258 M2
-
Design temperature:
-
200℃
-
Work pressure:
-
0.5MPa
-
Design pressure:
-
1.6MPa
-
Corrosion allowance:
-
3.0mm
-
Equipment mass:
-
19200kg
-
Proof press test:
-
2.07MPa
-
Outside surface area:
-
35M3
Product Description
What is a shell and tube heat exchanger
A shell and tube heat exchanger is a class of heat exchanger designs. It is the most common type of heat exchanger in oil refineries and other large chemical processes, and is suited for higher-pressure applications. As its name implies, this type of heat exchanger consists of a shell (a large pressure vessel) with a bundle of tubes inside it. One fluid runs through the tubes, and another fluid flows over the tubes (through the shell) to transfer heat between the two fluids. The set of tubes is called a tube bundle, and may be composed of several types of tubes: plain, longitudinally finned, etc.
Parameters of our shell and tube heat exchanger is as below, if you are interested in our products, please do not hesitate to contact us, our engineers will design for you.
|
Heat exchanging capacity
|
4mmbtu/h or based
|
|
Design temperature(coil)
|
200℃
|
|
Design temperature(Shell)
|
200℃
|
|
Design pressure
|
1.6MPa
|
|
Working pressure(shell side)
|
0.5MPa
|
|
Working pressure(tube side)
|
0.4MPa
|
|
OPER.TEMP.(IN/OUT)(shell side)
|
25/32℃
|
|
OPER.TEMP.(IN/OUT)(tube side)
|
100.6/50℃
|
|
Tube side material
|
Q345R
|
|
Shell side
|
Q345R
|
|
Weight
|
About 19,000kg
|
|
Seismic intensity
|
7 grade
|
|
Number of passes(shell side)
|
1
|
|
Number of passes(tube side)
|
4
|
|
Tube sheet
|
16MnIII
|
Sample technical drawing of our shell and tube heat exchanger we design for our customer.We have ASME CERTIFICATION, and could design perfectly based on client needs.
Workshop
Our factory located in Luoyang city, Henan province, China. We have professional design team for shell and tube heat exchanger, we design and manufacturer totally based on customers' demand. Welcome to visit our factory at any time and we are pleased to cooperate with your honour company.
