Once the closure sleeve has been installed, the composite design of the SuperSleeve sealing gel material provides superior mechanical protection from forces such as impact, abrasion, UV light, and atmospheric contamination.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
XAGA
-
Product Name:
-
Heat Shrinkable Closure
-
Certificate:
-
CE/ROHS/ISO9001/ANATEL
-
Joint Type:
-
straight joint, branch joint
-
Cable Pairs:
-
From 100-2400 pairs telecom cables
-
Applicable temperature range:
-
-30~70℃
-
Color:
-
Black
-
Keyword:
-
heat shrinkable sleeve
-
Brand name:
-
SURELINK
Quick Details
-
Material:
-
PE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SURELINK
-
Model Number:
-
XAGA
-
Product Name:
-
Heat Shrinkable Closure
-
Certificate:
-
CE/ROHS/ISO9001/ANATEL
-
Joint Type:
-
straight joint, branch joint
-
Cable Pairs:
-
From 100-2400 pairs telecom cables
-
Applicable temperature range:
-
-30~70℃
-
Color:
-
Black
-
Keyword:
-
heat shrinkable sleeve
-
Brand name:
-
SURELINK

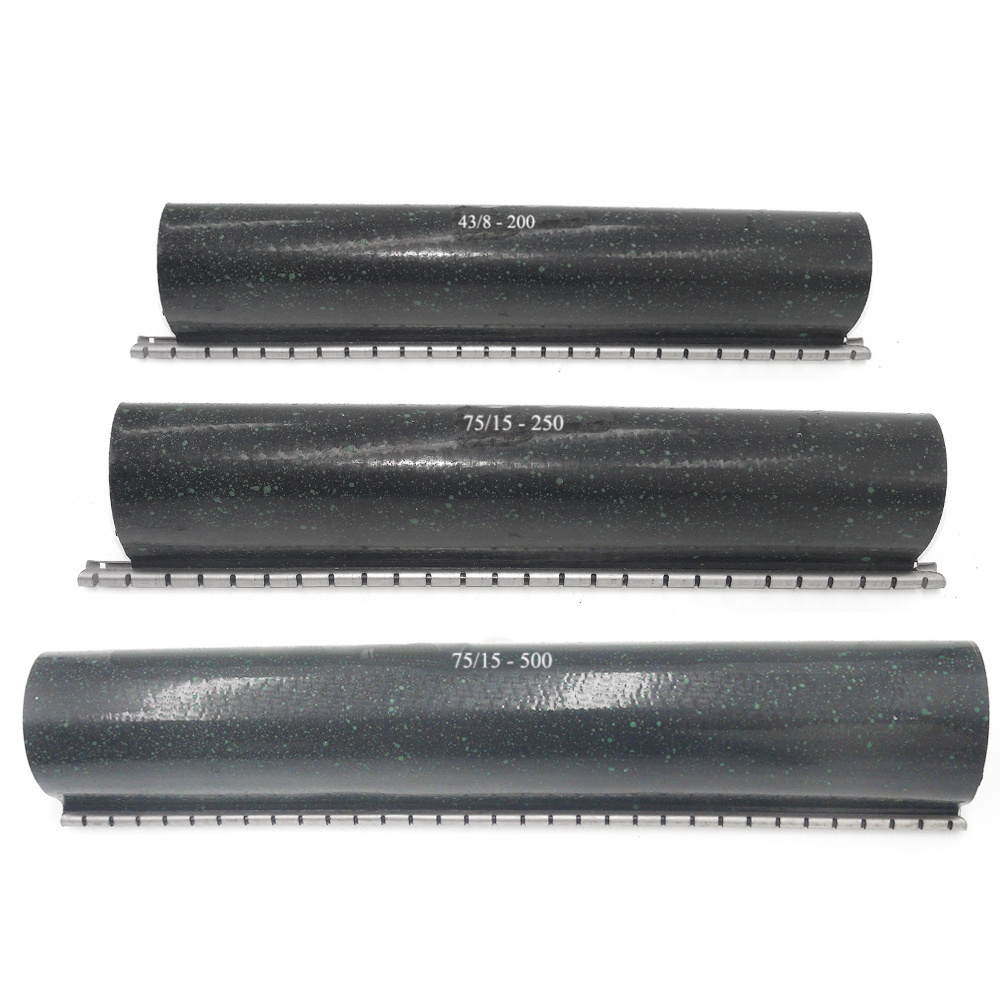

Heat Shrinkable Cable Joint Closure reinforced XAGA 500/550 heat shrink branch sleeve heat shrinkable tubing kit
Super sleeve sealing gel material is composed of several layers of specially blended polymers, adhesives and fiber-reinforcing layer. The fiber-reinforcing layer provides excellent mechanical strength and eliminates the propagation of localized damage that can result from overheating or other errors in installation.
PRODUCT SPECIFICATIONS
1.Heat Shrinkable
Closure Size(Dimensions: mm)
|
Specification Straight(branch)
|
Max. Splice Dia.(mm)
|
Min. Cable Dia.(mm)
|
Opening length(mm)
|
|
43/8-100
|
43
|
8
|
100
|
|
43/8-150
|
43
|
8
|
150
|
|
43/8-180
|
43
|
8
|
180
|
|
43/8-200
|
43
|
8
|
200
|
|
43/8-300
|
43
|
8
|
300
|
|
43/8-350
|
43
|
8
|
350
|
|
43/8-500
|
43
|
8
|
500
|
|
75/15-250
|
75
|
15
|
250
|
|
75/15-500
|
75
|
15
|
500
|
|
75/15-650
|
75
|
15
|
650
|
|
92/25-300
|
92
|
25
|
300
|
|
92/25-500
|
92
|
25
|
500
|
|
92/25-650
|
92
|
25
|
650
|
|
122/30-300
|
122
|
30
|
300
|
|
122/30-500
|
122
|
30
|
500
|
|
122/30-650
|
122
|
30
|
650
|
|
160/42-500
|
160
|
42
|
500
|
|
160/42-720
|
160
|
42
|
720
|
|
200/50-500
|
200
|
50
|
500
|
|
200/50-720
|
200
|
50
|
720
|
2.Environmental performance requirements
Straight Joint Enclosure System Kit Contents
1.Heat Shrinkable Closure / Heat Shrinkable Sleeve
2.Flexible Channel
3.Cardboard Liner
4.Insulation Paper(optional upon special requirement)
5.Shield Continuity Kit
6.Cleaning Tissues
7.Adhesive Backed Aluminum Tape(Cable Protection)
8.Black tape/PVC Tape
9.Abrasion Strip
10.Measuring Aid / Bond Gauge
11.Desiccant / Silica Gel
12.Installation Instructions
1.Heat Shrinkable Closure / Heat Shrinkable Sleeve
2.Flexible Channel
3.Cardboard Liner
4.Insulation Paper(optional upon special requirement)
5.Shield Continuity Kit
6.Cleaning Tissues
7.Adhesive Backed Aluminum Tape(Cable Protection)
8.Black tape/PVC Tape
9.Abrasion Strip
10.Measuring Aid / Bond Gauge
11.Desiccant / Silica Gel
12.Installation Instructions
Branch Off Kit for Branch Joint Contents
1.Branch-off clip(1 NO)
2.Shield Continuity Branch Assembly With Shield Continuity Clip(1 Set)
3.Connector for continuity wire branching(1 NO)
4.Adhesive Backed Aluminum Cable Tape / Aluminum Foil(1 NO)
5.Cleaning Tissue(1 PKG)
6.Abrasive Strip(1 NO)
7.Tie Wrap(1 NO)
2.Shield Continuity Branch Assembly With Shield Continuity Clip(1 Set)
3.Connector for continuity wire branching(1 NO)
4.Adhesive Backed Aluminum Cable Tape / Aluminum Foil(1 NO)
5.Cleaning Tissue(1 PKG)
6.Abrasive Strip(1 NO)
7.Tie Wrap(1 NO)
D:Maximum joint diameter
d:Minimum cable diameter
L:Maximum joint opening
d:Minimum cable diameter
L:Maximum joint opening
