Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FINEWORKCNC
-
Single Pulse Energy:
-
300J
-
Pulse Width:
-
0.5~10ms
-
Wavelength:
-
1080NM
-
Focal Spot Diameter:
-
0.2 ~ 2.0 mm
-
Dimensions:
-
950x970x1520MM
-
Weight (KG):
-
120 KG
-
Marketing Type:
-
New Product
-
Product name:
-
Fineworkcnc Dual-Use Tube&AmpSheet Cutting For Sale 1000W 1500W 2000W
-
Application:
-
Metal Stainless Steel Laser Welder
-
Laser type:
-
Fiber Laser Source
-
Keywords:
-
Fiber Laser Welding Equipment
-
Laser power:
-
1000W 2000W 3000W (optional)
-
Advantage:
-
Welding Precision
-
Cooling System:
-
Water Cooling System
-
Color:
-
Customized Color
-
Operating system:
-
QiLin Operation System
-
Voltage:
-
AC 220/380V-50Hz
Quick Details
-
Max. Output Power:
-
3000W
-
Usage:
-
Matel Welding
-
Laser Source Brand:
-
RAYCUS
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FINEWORKCNC
-
Single Pulse Energy:
-
300J
-
Pulse Width:
-
0.5~10ms
-
Wavelength:
-
1080NM
-
Focal Spot Diameter:
-
0.2 ~ 2.0 mm
-
Dimensions:
-
950x970x1520MM
-
Weight (KG):
-
120 KG
-
Marketing Type:
-
New Product
-
Product name:
-
Fineworkcnc Dual-Use Tube&AmpSheet Cutting For Sale 1000W 1500W 2000W
-
Application:
-
Metal Stainless Steel Laser Welder
-
Laser type:
-
Fiber Laser Source
-
Keywords:
-
Fiber Laser Welding Equipment
-
Laser power:
-
1000W 2000W 3000W (optional)
-
Advantage:
-
Welding Precision
-
Cooling System:
-
Water Cooling System
-
Color:
-
Customized Color
-
Operating system:
-
QiLin Operation System
-
Voltage:
-
AC 220/380V-50Hz

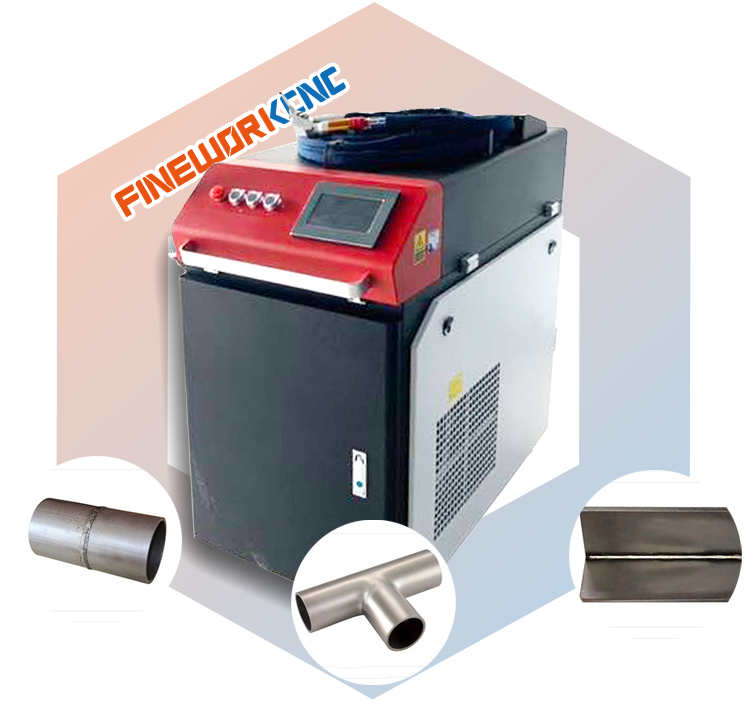

Application Sample
This machine is based on the 3-in-1, and the function of welding seam cleaning is newly added. One machine has four functions.Humanized design,No need to buy several laser machines for these different laser process jobs. Our laser system is very suitable for stainless steel & aluminum alloy welding, also can do welding on carbon steel, titanium alloy and etc. Also it can be used for rusty removal and handheld metal cutting.
1. Multifunction fiber laser machine, can weld, clean and cut metallic materials;
2. Handheld type with longer holder cable length;
3. Welding function conversion cleaning function, just replace the focusing lens and laser head;
4. Small machine body,can move easily. It is very convenient.
Specification
|
Machine Model
|
FW-1000W
|
FW-1500W
|
FW-2000W
|
|
Laser Power
|
1000W
|
1500W
|
2000W
|
|
Laser Wavelength
|
1064-1080nm
|
1064-1080nm
|
1064-1080nm
|
|
Welding Depth
|
2mm
|
4mm
|
7mm
|
|
Fiber Optic
|
50μm,10m
|
50μm,10m
|
50μm,10m
|
|
Modulation Frequency
|
20-20kHz
|
20-20kHz
|
20-20kHz
|
|
Blowing Protection
|
Argon/Nitrogen
|
Argon/Nitrogen
|
Argon/Nitrogen
|
|
Welding Method
|
Swinging Head in Hand
|
Swinging Head in Hand
|
Swinging Head in Hand
|
|
Electricity Bemand
|
AC 110V/60Hz AC 220V/50Hz
|
AC 110V/60Hz AC 220V/50Hz
|
AC 110V/60Hz AC 220V/50Hz
|
|
Power
|
5.6KW
|
7.1KW
|
9.1KW
|
|
Cooling System
|
Water
|
Water
|
Water
|
|
Dimension
|
1130x590x1200mm
|
1130x590x1200mm
|
1130x590x1200mm
|
|
Weight
|
230KG
|
230KG
|
230KG
|
|
|
|
|
|
Product Description
Welding Craft
