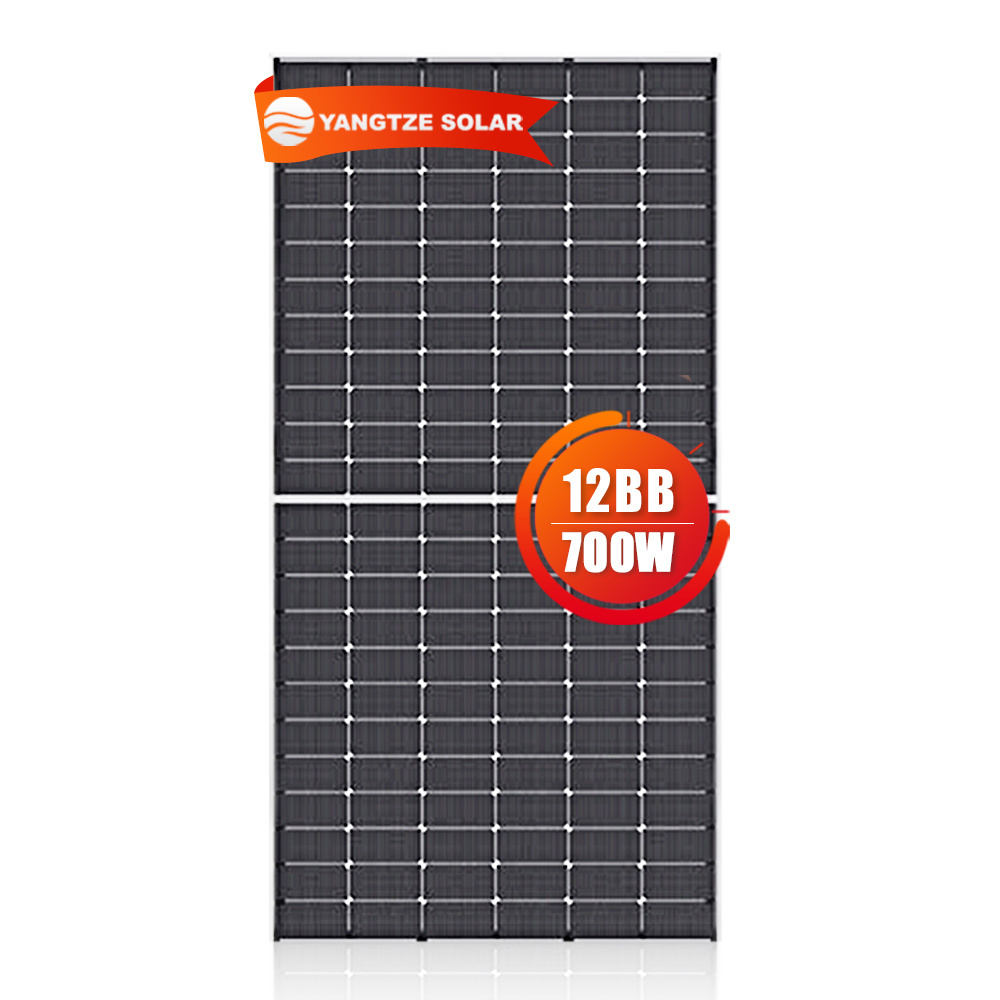

Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
Yangtze
-
Model Number:
-
YS700M-132
-
Place of Origin:
-
China
-
Panel Dimensions:
-
2384*1303*35 mm
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP68 Waterproof
-
Solar cell:
-
Mono 210mm*105mm
-
Front cover:
-
3.2mm High Transmission Low Iron Tempered Glass
-
Connector:
-
MC 4 Compatible Connector
-
Application:
-
Solar System
-
Frame color:
-
Silvery or Black
-
Backing Color:
-
White or Black or Transparent
-
OEM Order:
-
Acceptable
-
Certificate:
-
TUV , CE, ISO
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black
-
Panel Efficiency:
-
22.3%
-
Warranty:
-
25 years
-
Brand Name:
-
Yangtze
-
Model Number:
-
YS700M-132
-
Place of Origin:
-
China
-
Panel Dimensions:
-
2384*1303*35 mm
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP68 Waterproof
-
Solar cell:
-
Mono 210mm*105mm
-
Front cover:
-
3.2mm High Transmission Low Iron Tempered Glass
-
Connector:
-
MC 4 Compatible Connector
-
Application:
-
Solar System
-
Frame color:
-
Silvery or Black
-
Backing Color:
-
White or Black or Transparent
-
OEM Order:
-
Acceptable
-
Certificate:
-
TUV , CE, ISO
Product Description&Specification
|
Model Type
|
YS660M-132
|
YS670M-132
|
YS680M-132
|
YS690M-132
|
YS700M-132
|
|||||
|
Rated Maximum Power at STC
|
660W
|
670W
|
680W
|
690W
|
700W
|
|||||
|
Maximum Power Voltage (Vmp)
|
38.38V
|
38.68V
|
38.98V
|
39.28V
|
39.58V
|
|||||
|
Maximum Power Current (Imp)
|
17.20A
|
17.33A
|
17.45A
|
17.57A
|
17.69A
|
|||||
|
Open Circuit Voltage ( Voc)
|
45.55V
|
45.85V
|
46.15V
|
46.45V
|
46.75V
|
|||||
|
Short Circuit Current (Isc)
|
18.45A
|
18.54A
|
18.66A
|
18.79A
|
18.92A
|
|||||
|
Module Efficiency
|
21.1%
|
21.4%
|
21.7%
|
22.0%
|
22.3%
|
|||||
|
Working Conditions&Working Conditions
|
|
|
|
|
|
|||||
|
Operating Temperature
|
|
-40°c~+85°c
|
|
|
|
|||||
|
Maximum System Voltage
|
|
DC 1000V(IEC) / 1500V(IEC)
|
|
|
|
|||||
|
Maximum Series Fuse
|
|
25A
|
|
|
|
|||||
|
Power Tolerance
|
|
0~+5W
|
|
|
|
|||||
|
Temperature Coefficient of Pmax
|
|
-0.35%/°c
|
|
|
|
|||||
|
Temperature Coefficient of Voc
|
|
-0.29%/°c
|
|
|
|
|||||
|
Temperature Coefficient of Isc
|
|
+0.048%/°c
|
|
|
|
|||||
|
STC
(Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25 'C, Spectra at AMl.5
|
|
|
|
|
|
|||||
|
NOCT
(Nominal Operating Cell Temperature): lrradiance 800W/m2 , Ambient Temperature 20 'C, Spectra at AMl.5, Wind at l m/S
|
|
|
|
|
|
|||||
Manufacturing Technique
Our Factory&Packaging
Factory Details:
♦ Founded in 1994 , 300MW solar panel production capacity , millions of battery, charge controller and inverter production
capacity
♦ Three factories , solar panel factory , battery factory , solar charge controller and inverter factory
♦ Products are exported to more than 150 countries
♦ Products are certified by TUV(Germany) ,CE
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects ♦ Founded in 1994 , 300MW solar panel production capacity , millions of battery, charge controller and inverter production
capacity
♦ Three factories , solar panel factory , battery factory , solar charge controller and inverter factory
♦ Products are exported to more than 150 countries
♦ Products are certified by TUV(Germany) ,CE
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects
capacity
♦ Three factories , solar panel factory , battery factory , solar charge controller and inverter factory
♦ Products are exported to more than 150 countries
♦ Products are certified by TUV(Germany) ,CE
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects ♦ Founded in 1994 , 300MW solar panel production capacity , millions of battery, charge controller and inverter production
capacity
♦ Three factories , solar panel factory , battery factory , solar charge controller and inverter factory
♦ Products are exported to more than 150 countries
♦ Products are certified by TUV(Germany) ,CE
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects
