Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SINYA
-
Model Number:
-
SK6R Reducing Union
-
Size:
-
1/16inch~1inch, 3mm~25mm
-
Customization:
-
Available
-
Working Temperature:
-
-325℉~800℉ (-198℃~426℃)
-
Thread End Working Pressure:
-
6000 Psig (413 bar)
-
OEM service:
-
Available
-
Certificate:
-
ISO 9001, CE
-
Thread:
-
BSPP BSPT NPT
-
Packing:
-
Standard Packing
-
MOQ:
-
3 pieces
-
Body material:
-
316 S.S
Quick Details
-
Technics:
-
Forged
-
Shape:
-
Equal
-
Head Code:
-
Hexagon
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SINYA
-
Model Number:
-
SK6R Reducing Union
-
Size:
-
1/16inch~1inch, 3mm~25mm
-
Customization:
-
Available
-
Working Temperature:
-
-325℉~800℉ (-198℃~426℃)
-
Thread End Working Pressure:
-
6000 Psig (413 bar)
-
OEM service:
-
Available
-
Certificate:
-
ISO 9001, CE
-
Thread:
-
BSPP BSPT NPT
-
Packing:
-
Standard Packing
-
MOQ:
-
3 pieces
-
Body material:
-
316 S.S
Product Description
|
1.Available in size: 1/16" to 1", and 2mm to 25mm.
|
|
|
|
|||
|
2.Working temperature:-325℉~800℉ (-198℃~426℃).
|
|
|
|
|||
|
3.Material grades: SS 304, SS 316, Brass, Special Alloys.
|
|
|
|
|||
|
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
|
|
|
|
|||
|
5.Zero leakage even under tough working conditions.
|
|
|
|
|||
|
6.High quality silver plated threads on nuts to ensure no galling on the body threads.
|
|
|
|
|||
|
7.Simple to operate and save time and cost because of the usage of elastic seal.
|
|
|
|
|||
|
8.Available in wide variety of configurations.
|
|
|
|
|||
|
9.It can be reused.
|
|
|
|
|||
|

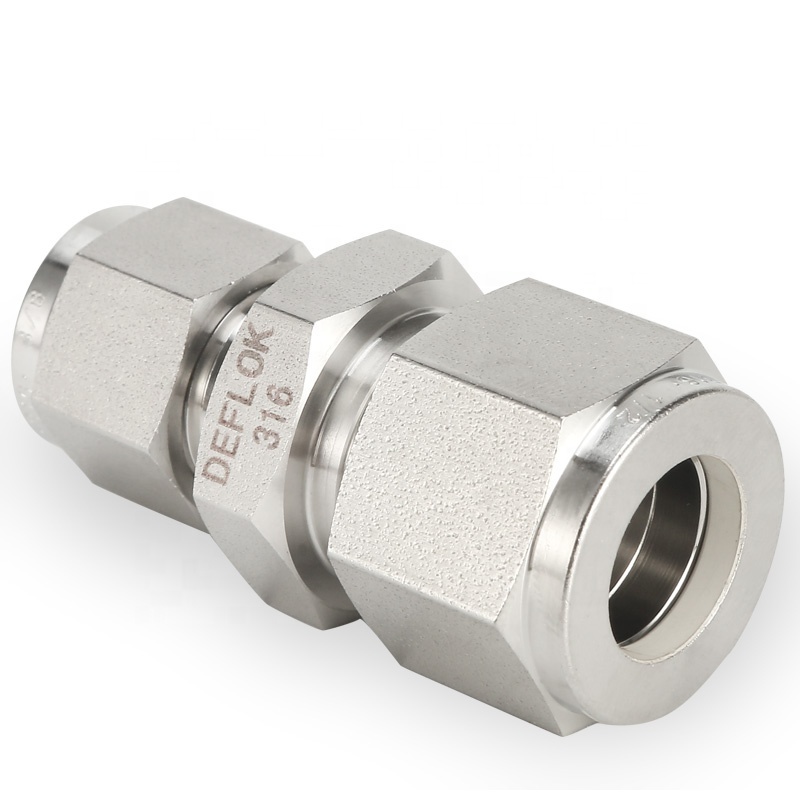

-SK6R Reducing Union（in/ in）
|
|
|
|
|
|
|
|
|
||||||||
|
Order information
|
A
|
|
A1
|
|
D
|
W
|
|
L
|
||||||||
|
|
in
|
mm
|
in
|
mm
|
mm
|
in
|
mm
|
mm
|
||||||||
|
-SK6R-2-1
|
1/8
|
3.17
|
1/16
|
1.58
|
1.27
|
7/16
|
11.11
|
30.98
|
||||||||
|
-SK6R-3-1
|
3/16
|
4.76
|
1/16
|
1.58
|
1.27
|
7/16
|
11.11
|
32.26
|
||||||||
|
-SK6R-3-2
|
3/16
|
4.76
|
1/8
|
3.17
|
2.28
|
7/16
|
11.11
|
36.57
|
||||||||
|
-SK6R-4-1
|
1/4
|
6.35
|
1/16
|
1.58
|
1.27
|
1/2
|
12.70
|
34.29
|
||||||||
|
-SK6R-4-2
|
1/4
|
6.35
|
1/8
|
3.17
|
2.28
|
1/2
|
12.70
|
38.60
|
||||||||
|
-SK6R-4-3
|
1/4
|
6.35
|
3/16
|
4.76
|
3.04
|
1/2
|
12.70
|
37.37
|
||||||||
|
-SK6R-5-2
|
5/16
|
7.93
|
1/8
|
3.17
|
2.28
|
9/16
|
14.28
|
39.88
|
||||||||
|
-SK6R-5-4
|
5/16
|
7.93
|
1/4
|
6.35
|
4.82
|
9/16
|
14.28
|
42.16
|
||||||||
|
-SK6R-6-1
|
3/8
|
9.52
|
1/16
|
1.58
|
1.27
|
5/8
|
15.87
|
36.58
|
||||||||
|
-SK6R-6-2
|
3/8
|
9.52
|
1/8
|
3.17
|
2.28
|
5/8
|
15.87
|
40.89
|
||||||||
|
-SK6R-6-4
|
3/8
|
9.52
|
1/4
|
6.35
|
4.82
|
5/8
|
15.87
|
43.18
|
||||||||
|
-SK6R-6-5
|
3/8
|
9.52
|
5/16
|
7.93
|
6.35
|
5/8
|
15.87
|
44.19
|
||||||||
|
-SK6R-8-2
|
1/2
|
12.70
|
1/8
|
3.17
|
2.28
|
13/16
|
20.63
|
45.21
|
||||||||
|
-SK6R-8-4
|
1/2
|
12.70
|
1/4
|
6.35
|
4.82
|
13/16
|
20.63
|
46.99
|
||||||||
|
-SK6R-8-6
|
1/2
|
12.70
|
3/8
|
9.52
|
7.11
|
13/16
|
20.63
|
48.51
|
||||||||
|
-SK6R-10-6
|
5/8
|
15.87
|
3/8
|
9.52
|
7.11
|
15/16
|
23.81
|
49.27
|
||||||||
|
-SK6R-10-8
|
5/8
|
15.87
|
1/2
|
12.70
|
10.41
|
15/16
|
23.81
|
52.07
|
||||||||
|
-SK6R-12-4
|
3/4
|
19.05
|
1/4
|
6.35
|
4.82
|
11/16
|
26.98
|
49.28
|
||||||||
|
-SK6R-12-6
|
3/4
|
19.05
|
3/8
|
9.52
|
7.11
|
11/16
|
26.98
|
50.80
|
||||||||
|
-SK6R-12-8
|
3/4
|
19.05
|
1/2
|
12.70
|
10.41
|
11/16
|
26.98
|
53.59
|
||||||||
|
-SK6R-12-10
|
3/4
|
19.05
|
5/8
|
15.87
|
12.70
|
11/16
|
26.98
|
53.59
|
||||||||
|
-SK6R-16-8
|
1
|
25.40
|
1/2
|
12.70
|
10.41
|
13/8
|
34.92
|
60.45
|
||||||||
|
-SK6R-16-12
|
1
|
25.40
|
3/4
|
19.05
|
15.75
|
13/8
|
34.92
|
60.45
|
||||||||
|
-SK6R Reducing Union（mm/mm）
|
|
|
|
|
|
|||||
|
Order information
|
A
|
A1
|
D
|
W
|
L
|
|||||
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
|||||
|
-SK6R-3mm-2mm
|
3
|
2
|
1.7
|
12
|
35.3
|
|||||
|
-SK6R-6mm-2mm
|
6
|
2
|
1.7
|
14
|
38.6
|
|||||
|
-SK6R-6mm-3mm
|
6
|
3
|
2.4
|
14
|
38.6
|
|||||
|
-SK6R-6mm-4mm
|
6
|
4
|
2.4
|
14
|
39.4
|
|||||
|
-SK6R-8mm-6mm
|
8
|
6
|
4.8
|
15
|
42.3
|
|||||
|
-SK6R-10mm-6mm
|
10
|
6
|
4.8
|
18
|
44.5
|
|||||
|
-SK6R-10mm-8mm
|
10
|
8
|
6.4
|
18
|
45.1
|
|||||
|
-SK6R-12mm-6mm
|
12
|
6
|
4.8
|
22
|
47.0
|
|||||
|
-SK6R-12mm-8mm
|
12
|
8
|
6.4
|
22
|
47.8
|
|||||
|
-SK6R-12mm-10mm
|
12
|
10
|
7.9
|
22
|
48.7
|
|||||
|
-SK6R-16mm-10mm
|
16
|
10
|
7.9
|
24
|
49.5
|
|||||
|
-SK6R-16mm-12mm
|
16
|
12
|
9.5
|
24
|
52.0
|
|||||
|
-SK6R-18mm-12mm
|
18
|
12
|
9.5
|
27
|
53.5
|
|||||
|
-SK6R-25mm-18mm
|
25
|
18
|
15.1
|
35
|
61.0
|
|||||
|
-SK6R-25mm-20mm
|
25
|
20
|
15.9
|
35
|
62.3
|
|||||
Our Services
|
Sinya tries to get the satisfaction of all users by providing Premium Quality products and services in the field of Instrumentation tube fitting & valves ,and also providing an appropriate combination of price, quality, satisfying services and fast delivery.
Its products are provided based on three fundamental factors: 1) Quality 2) Variety 3) Reliability
|
|
|
|
|||
|
1.Custom design, CAD drawing
|
|
|
|
|||
|
2.P&ID
|
|
|
|
|||
|
3.Component selection
|
|
|
|
|||
|
4.Bill of material
|
|
|
|
|||
|
5.Professional services such as bending and welding
|
|
|
|
|||
|
6.Testing to guarantee the system
|
|
|
|
|||
|
7.Professional packaging and delivery
|
|
|
|
|||
Products Display
|
Contact us to get more information :
|
|
|
|
|
||||
|
tube fittings
|
check valves
|
manifolds valves
|
T-type fliters
|
thermowells
|
||||
|
pipe fittings
|
relief valves
|
distribution manifolds
|
in-line filters
|
syphons
|
||||
|
needle valves
|
bleed & purge valves
|
instrumentation tubing
|
sample cylinders
|
|
||||
|
ball valves
|
gauge valves
|
air headers
|
pots and vessels
|
|
||||
Packing & Delivery
|
Mode of packing: Export standard package or as your detail request.
|
|
|
|
|||
|
Delivery time: 2 weeks after receipt of payment
|
|
|
|
|||
|
Mode of shipment: By Express like DHL,Fedex,TNT Ups.
|
|
|
|
|||
Our Company
|
1.Established in 1995.
|
|
|
|
|||
|
2.We are professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Needle valves, Ball Valves, Check Valves, Manifold Valves, DIN 2353 Fittings, Sampling systems, Water Heater Accessories.
|
|
|
|
|||
|
3.Products are available in the variety of different materials, such as Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, Titanium, Zirconium.
|
|
|
|
|||
|
4.We located in Zhenjiang City, near shanghai port with convenient transportation access worldwide.
|
|
|
|
|||
|
5.Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, Shipbuilding.
|
|
|
|
|||
|
6.Always available to discuss your requirements and ensure full customer satisfaction.
|
|
|
|
|||
|
7.We have Japanese Mazak CNC machine, 3D measure equipment, Raw Material chemical composition inspection equipment, High pressure test equipment, etc.
|
|
|
|
|||
|
8.We have obtained ISO9001 certificate, CE Certificate
|
|
|
|
|||
|
9 Our products are exported to Middle east, North America, South America, South East Asia, Europe and other countries..
|
|
|
|
|||
|
10.We also welcome OEM and ODM orders. Please feel free to contact and visit us.
|
|
|
|
|||
