Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
China
-
Brand Name:
-
HF
-
Voltage:
-
220-440V
-
Dimension(L*W*H):
-
6400*1500*2700mm
-
Model:
-
QT4-25 block machine
-
Pallet size:
-
850*480mm
-
Molding cycle:
-
15-25s
-
Function:
-
High Efficiency
-
Mould:
-
Heat Treated
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Philippines, Peru, Indonesia, Pakistan, India, Japan, Kenya, Chile, Colombia, Sri Lanka, Bangladesh
-
After-sales Service Provided:
-
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Certification:
-
ISO9001/CE
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
Concrete,Cement,Fly Ash,Sand,Crushed Stone
-
Production Capacity (Pieces/8 hours):
-
5800pcs/day
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
China
-
Brand Name:
-
HF
-
Voltage:
-
220-440V
-
Dimension(L*W*H):
-
6400*1500*2700mm
-
Model:
-
QT4-25 block machine
-
Pallet size:
-
850*480mm
-
Molding cycle:
-
15-25s
-
Function:
-
High Efficiency
-
Mould:
-
Heat Treated
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Philippines, Peru, Indonesia, Pakistan, India, Japan, Kenya, Chile, Colombia, Sri Lanka, Bangladesh
-
After-sales Service Provided:
-
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Certification:
-
ISO9001/CE
Product Description

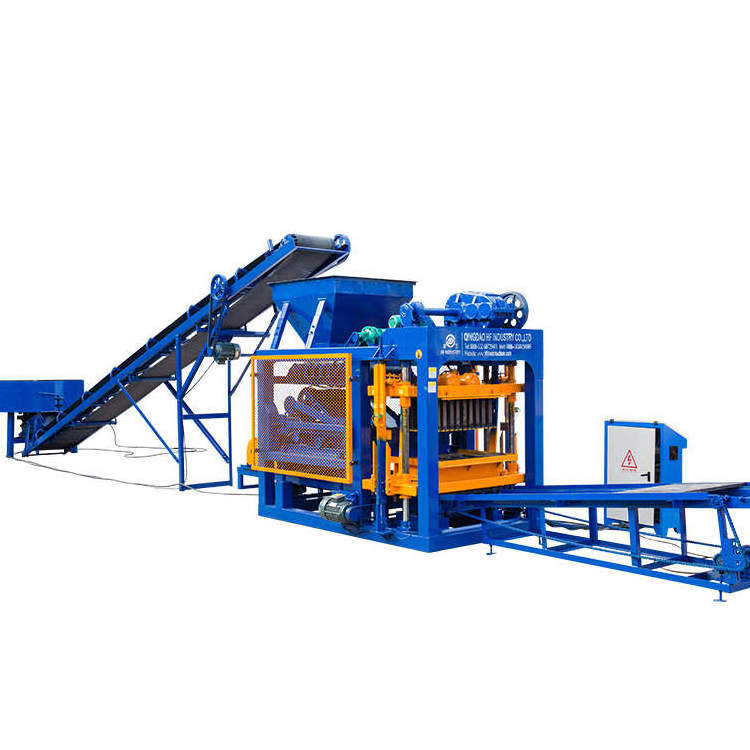

QT4-25 Block Making Machine
QT4-25 block making machine is the latest automation product developed by our company, adopts flat vibration, mould vibration, and squeeze compression vibration, manufactures the blocks with average density and high strength. And the unique dose charging device and the powerful material-distributing structure ensure the block's quality of various materials .PLC control is adopted to realize the plate supply, material distribution and brick layout automation. High efficiency QT4-25 block machine is an ideal equipment for producing the new wall material.
|
Main Technical Specifications
|
|
|
|
|||
|
Overall Dimension
|
2600x1600x2200mm
|
|
|
|||
|
Vibration force
|
45KN
|
|
|
|||
|
Main vibration form
|
Platform vibration
|
|
|
|||
|
Cycle Time
|
25-30s
|
|
|
|||
|
Vibrating Frequency
|
2800-4500 rolls/minute
|
|
|
|||
|
Motors Power
|
13.5KW
|
|
|
|||
|
Pallet Size
|
880x550mm
|
|
|
|||
|
Raw Materials
|
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue,
gravel, perlite, and other industrial wastes.
|
|
|
|||
|
Applied Products
|
concrete blocks, solid/hollow/cellular masonry products, paving stones with
or without face mix, garden and landscaping products, slabs, edgers,
kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
|
|
|
|||
Production Line
Capacity
Contact Us
Exhibition&customer
Related Products
Our Company
QINGDAO HF INDUSTRY CO.,LTD
is the professional manufacturer and exporter for block machine technology. Our company is located in Qingdao city Shandong Province and our factory has three manufacturing bases that cover an area of 500 acres and a plant construction area of 100,000 square meters. We are always developing advanced products to international standards to meet consumer demands.We had exported to more than 116 countries from the Philippines, Russia, Egypt, South Africa, Ghana, Oman, India, Armenia,Israel, Chile etc. and have an exceptional high reputation from our customers.
We cooperate with SIEMENS for Motors and PLC intelligent control system, Schneider electrical equipment and YUKEN for the hydraulic operations to insure our machines have the highest quality standrads with a stable working status.We have more than 50 technician to ensure superior installations and after sale service to assist customer to install the machine and perfrom the proper training abroad. We warmly welcome customers from all over the world come to visit our factory and discuss long term cooperation.
We cooperate with SIEMENS for Motors and PLC intelligent control system, Schneider electrical equipment and YUKEN for the hydraulic operations to insure our machines have the highest quality standrads with a stable working status.We have more than 50 technician to ensure superior installations and after sale service to assist customer to install the machine and perfrom the proper training abroad. We warmly welcome customers from all over the world come to visit our factory and discuss long term cooperation.
