Quick Details
-
Strings:
-
6
-
Waterproof grade:
-
IP65
-
Maximum Output current:
-
25A
-
Box material:
-
IRON
-
Maximum DC Voltage Input:
-
DC 1000V
-
Box size:
-
650* 390* 190mm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Worldsunlight/OEM
-
Model Number:
-
WSDB-PV 6/6
-
Strings:
-
6
-
Waterproof grade:
-
IP65
-
Maximum Output current:
-
25A
-
Box material:
-
IRON
-
Maximum DC Voltage Input:
-
DC 1000V
-
Box size:
-
650* 390* 190mm
PV combiner box Application:

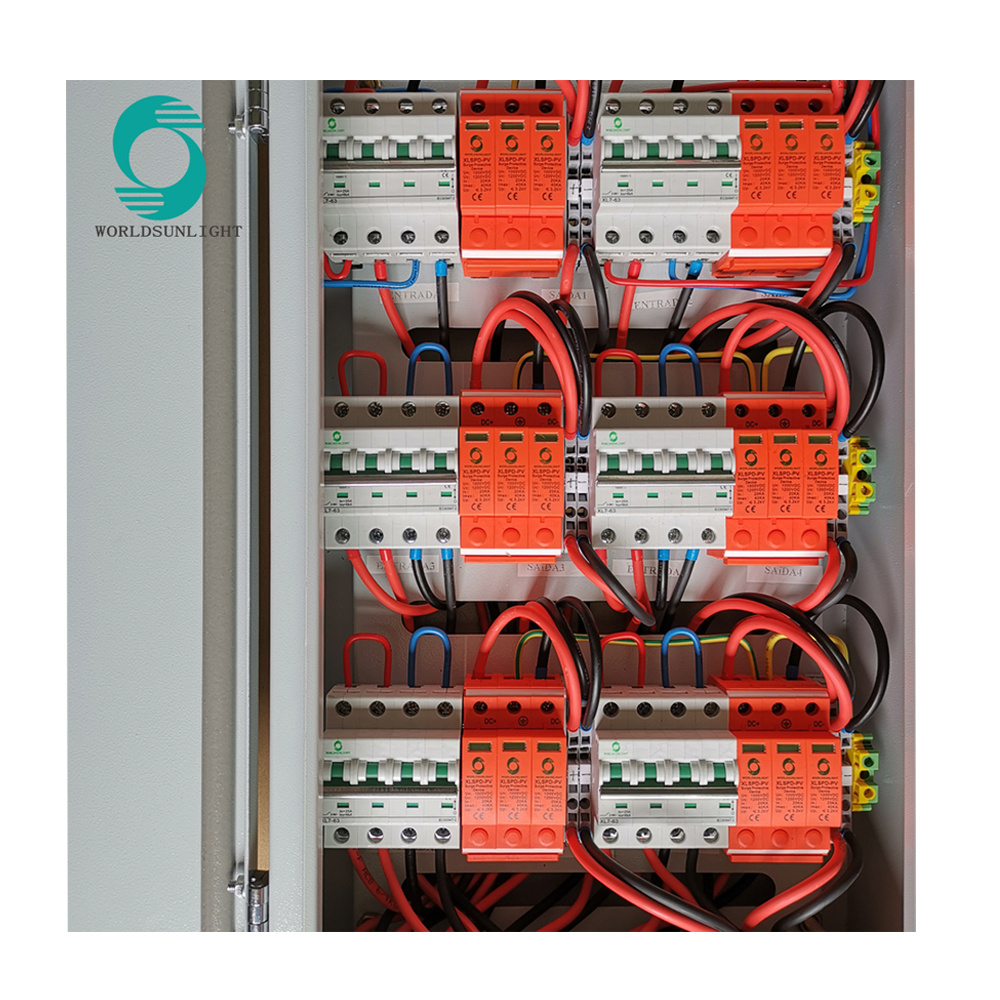

Worldsunlight PV String DC Combiner Boxes are key components in the PV Solar power systems, which are placed between Solar Modules and the Inverters.
Simplify the physical wiring between solar panel and inverter
Fault current protection for each PV String
Fault alarm
Easy installation and maintenance
PV combiner box Advantage :
Easy machining with normal tools IP66 Wide operation temperature range Fire Resistance Non-conductive Good resistance to chemical corrosion Light weight Excellent insulating properties Cost-effective material for harsh environments
Powder coated Chromium-Nickel Steel enclosure :
Easy machining with normal tools Thickness ≥1.2mm Powder coated cold rolled Surface finish: with the process of pickling and parkerising 80-120 μm IP65 waterproof, dust proof,anti-corrosion and UV resistance Durable: HRPV series combiner boxes are built to withstand harsh environmental exposure Suit for long distance transport
|
TECHNICAL PARAMETERS
|
|
|
|
Name
|
WSDB-PV6/6
|
|
|
System maximum dc voltage
|
1000V
|
|
|
Maximum input current for each string
|
25A
|
|
|
Maximum input strings
|
6
|
|
|
Maximum output switch current
|
25A
|
|
|
Number of inverter MPPT
|
N
|
|
|
Number of Output strings
|
6
|
|
|
Lightning protection
|
|
|
|
Category of test
|
II grade protection
|
|
|
Nominal discharge current
|
20kA
|
|
|
Maximum discharge current
|
40kA
|
|
|
Voltage protection level
|
3.8kV
|
|
|
Maximum continuous operating voltage Uc
|
1000V
|
|
|
Poles
|
3P
|
|
|
Structure characteristic
|
Plug -push module
|
|
|
System
|
|
|
|
Protection grade
|
IP65
|
|
|
Output switch
|
DC isolation switch(standard)/DC circuit breaker(optional)
|
|
|
SMC4 Waterproof Connectors
|
Standard
|
|
|
PV dc fuse
|
Standard
|
|
|
PV surge protector
|
Standard
|
|
|
Monitoring module
|
Optional
|
|
|
Preventing diode
|
Optional
|
|
|
Box material
|
Metal
|
|
|
Installation method
|
Wall mounting type
|
|
|
Operating Temperature
|
-25"C~+55'C
|
|
|
Elevation of temperature
|
2km
|
|
|
Permisble relative humidity
|
0~95%,no condensation
|
|
PV combiner box Packing Details:
PV combiner box Delivery Time:
1-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
PV combiner box Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Q: If I'm interested in your
PV combiner box
when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Can I get a sample before the order because I really don't how is your
PV combiner box
quality?
A:Of course!We also think sample order is the best way to build the trust.And in our company we offer sample service!Please send the enquiry to us and get the free sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 10 days.
Q:How's the warranty period for your
PV combiner box
?
A:We offer 5 years warranty for our customer.
