Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hyway
-
Model Number:
-
HWD912
-
Torque:
-
High Torque
-
Name:
-
Linear Actuator
-
Model:
-
HWD912
-
Input Voltage:
-
48V/36V/24V/12V DC
-
Max.load:
-
7000-8000N
-
Free Load Speed:
-
12-17mm/s
-
Standard Stroke:
-
150-350mm or Customize
-
Installation Dimension:
-
S + 130mm
-
Protection Grade::
-
IP67
-
Operation Temperature:
-
-15 to 45 centigrade
-
Certification:
-
Recliner Bed Linear Actuator
Quick Details
-
Speed(RPM):
-
High Speed
-
Continuous Current(A):
-
Current
-
Efficiency:
-
TBD
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hyway
-
Model Number:
-
HWD912
-
Torque:
-
High Torque
-
Name:
-
Linear Actuator
-
Model:
-
HWD912
-
Input Voltage:
-
48V/36V/24V/12V DC
-
Max.load:
-
7000-8000N
-
Free Load Speed:
-
12-17mm/s
-
Standard Stroke:
-
150-350mm or Customize
-
Installation Dimension:
-
S + 130mm
-
Protection Grade::
-
IP67
-
Operation Temperature:
-
-15 to 45 centigrade
-
Certification:
-
Recliner Bed Linear Actuator
hydraulic stainless steel linear actuator 10000n 12v

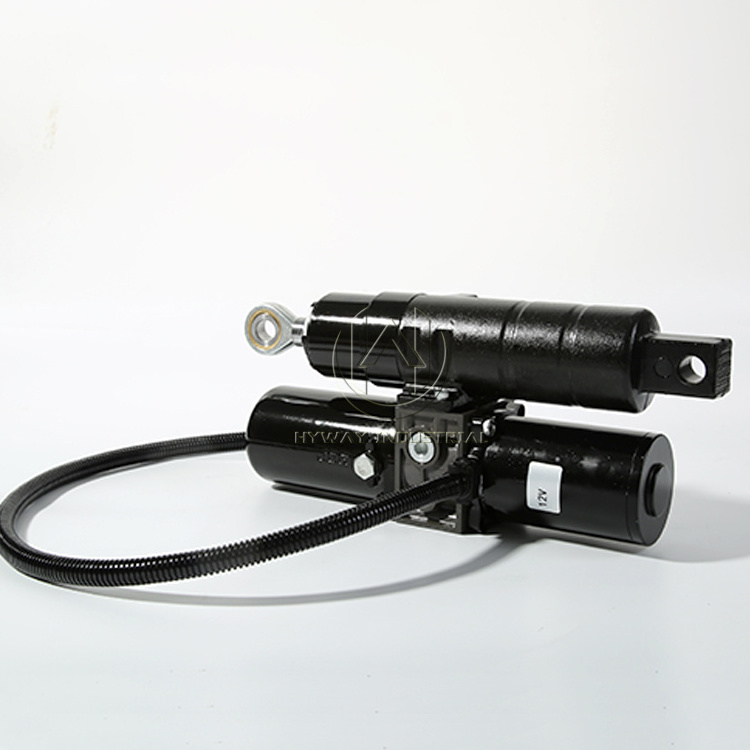

HWD912 is Industrial E lectric- H ydraulic Linear Actuator model. Compared with traditional industrial electric actuators, it has longer lifetime and more durable. Besides, its mounting distance is much shorter than pure electric ones as well. So, its usage is very wide, especially for small hydraulic push rod with integrated oil cylinder, agricultural machinery accessories for plant protection, industry equipment, special vehicles and other high load output conditions.
|
Name |
Industrial E lectric- H ydraulic Linear Actuator |
|
Model |
HWD912 |
|
Usage |
S mall hydraulic push rod with integrated oil cylinder, agricultural machinery accessories for plant protection, industry equipment, special vehicles and other high load output |
|
Input Voltage |
48V/36V/24V/12V DC DC |
|
Load Capacity |
7000-8000 N |
|
Free Load Speed |
12-17mm/s |
|
Standard Stroke |
150-350mm or Customize |
|
Installation Dimension |
S+ 130 mmmm |
|
Type of Duty |
S2 -- 10 min (2 minutes work, 18 minutes rest) |
|
Work Temp |
- 15 to 4 5 centigrade |
|
Material |
Stainless steel |
|
Gross Weight |
6~7kg |
|
Noise |
< 48db |
|
Protection Grade |
IP 67 |
|
Color |
Black or Gray |
|
Certificate |
CE, RoHS |
|
Delivery time |
3~7 days for samples |
