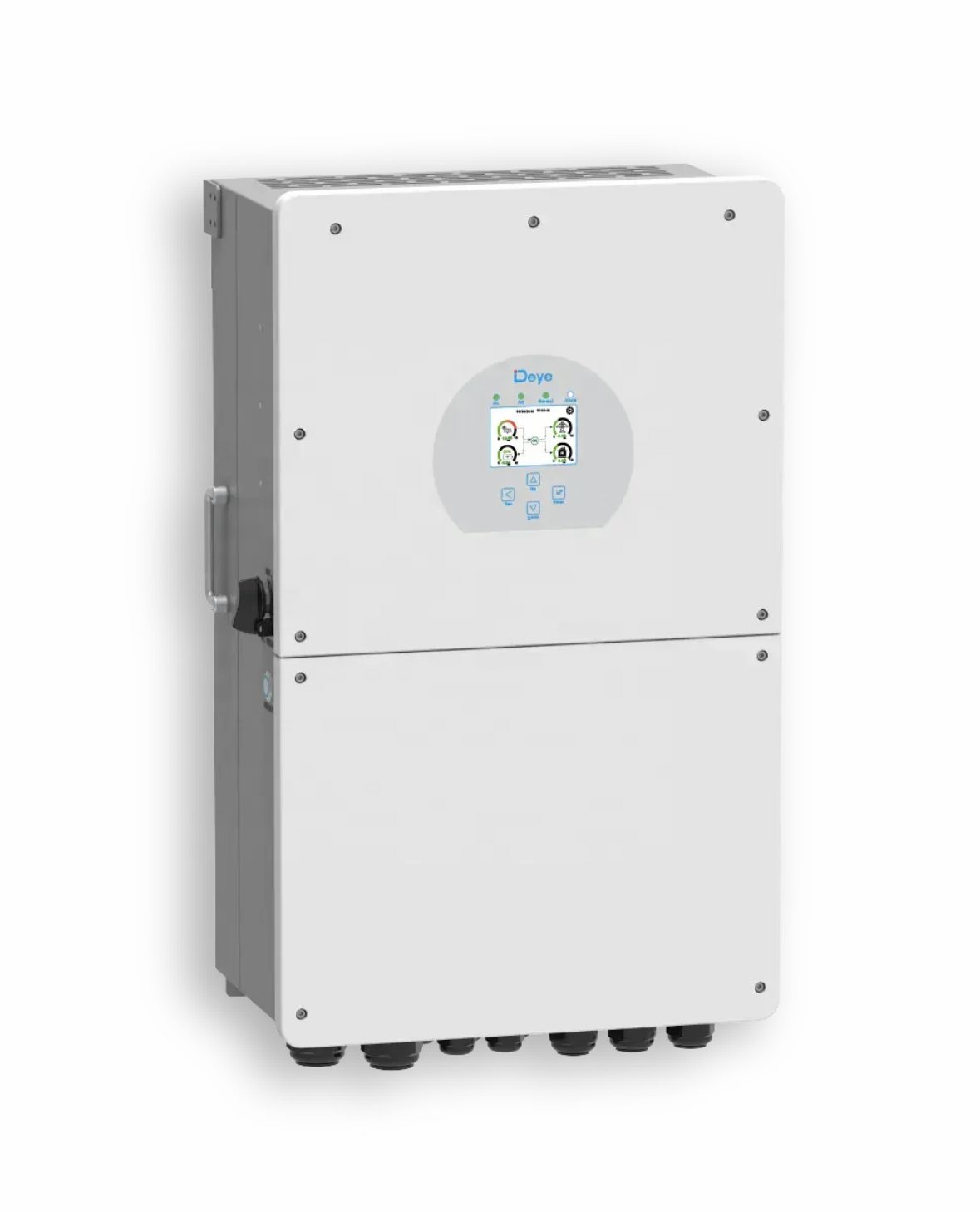

Renewable Energy And Green Products Portable Solar Power System 10Kw Solar Panel System With 3 Phase Inverter

Quick Details

Quick Details

Renewable Energy And Green Products Portable Solar Power System 10Kw Solar Panel System With 3 Phase Inverter

FOB Reference Price: Get Latest Price

≥2 Pieces

US $2150

≥100 Pieces

US $2100

≥500 Pieces

US $2088

Free Inquiry

Customized Request

Product Details

{{item.text}}

Place of Origin:: Shanghai, China

Brand Name:: DEYE

Model Number:: Sun 5KW 8KW 10KW 12KW SG04LP3-EU

Input Voltage:: 40~60v, 160~800Vdc

Output Voltage:: 220/380, 230/400Vac

Output Current:: 120A/190A/210A/240A, 45A

Output Frequency:: 50Hz/60Hz

Size:: 422W 699.3H 279D

Certificate:: CEI 0-21, VDE-AR-N 4105, IEC 61727, VDE 0126-1-1, CEI,VDE,NRS,IEC

Warranty:: 5 years, 5 YEARS

Weight:: 20.5KG

Application:: Solar Power System Home

Noise (dB):: <45 dB

Cooling:: Smart Cooling

Efficiency

Max. Effiffifficiency

Euro Effiffifficiency

380/650/255mm

MPPT Effiffifficiency

Output Type:: Three Phase

Type:: DC/AC Inverters

Inverter Efficiency:: 97.60%, 99.9%

Place of Origin:: Shanghai, China

Brand Name:: DEYE

Model Number:: Sun 5KW 8KW 10KW 12KW SG04LP3-EU

Input Voltage:: 40~60v, 160~800Vdc

Output Voltage:: 220/380, 230/400Vac

Output Current:: 120A/190A/210A/240A, 45A

Output Frequency:: 50Hz/60Hz

Size:: 422W 699.3H 279D

Certificate:: CEI 0-21, VDE-AR-N 4105, IEC 61727, VDE 0126-1-1, CEI,VDE,NRS,IEC

Warranty:: 5 years, 5 YEARS

Weight:: 20.5KG

Application:: Solar Power System Home

Noise (dB):: <45 dB

Cooling:: Smart Cooling

Products Description

ORDER NOW

Product Features

Core Technology

Automatic switching time 4ms

6 time periods for battery charging/discharging

V/f droop control, Max. 16pcs in parallel

Supports using diesel generator to charge battery directly,ensuring system energy supply 7* 24H

Max. conversion effificiency of 97.6% ;

Max. battery charge effificiency of 95.5%

Max. charging/discharging current of 240A

Industry Introduction

We have a complete solution for photovoltaic inverters, including residential and commercial power plant solutions.

So far, Deye inverter products have sold well in over 40 countries worldwide, greatly reducing global carbon emissions and promoting sustainable social development.

MODEL	SUN-5K-SG04LP3-EU	SUN-8K -SG04LP3-EU	SUN-10K -SG04LP3-EU	SUN-12K -SG04LP3-EU
Battery Input Data					48VDC	48VDC	48VDC
Battery Type	Lead-acid or Li-lon				10.4	15.6
Battery Voltage Range (V)		40~60
Max. Charging Current (A)	120	190	210	240
Max. Discharging Current (A)	120	190	210	240
External Temperature Sensor	Yes
Charging Curve	3 Stages / Equalization				10000VA
Charging Strategy for Li-Ion Battery	Self-adaption to BMS

PV String Input Data
Max. DC Input Power (W)	6500	10400	13000	15600
Rated PV Input Voltage (V)	550 (160~800)				8.8	13.2
Start-up Voltage (V)	160				2/1
MPPT Voltage Range (V)	200-650
Full Load DC Voltage Range (V)	350-650				100A
PV Input Current (A)	13+13		11.6	26+13
Max. PV ISC (A)	17+17		12.8	34+17
Number of MPPT / Strings per MPPT	2/1+1			2/2+1

AC Output Data
Rated AC Output and UPS Power (W)	5000	8000	10000	12000
Max. AC Output Power (W)	5500	8800	11000	13200
AC Output Rated Current (A)	7.6	12.1	15.2	18.2
Max. AC Current (A)	11.4	18.2	22.7	27.3
Max. Continuous AC Passthrough (A)	45				40
Peak Power (offff grid)	2 time of rated power, 10 S
Power Factor	0.8 leading to 0.8 lagging
Output Frequency and Voltage	50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Type	Three Phase
DC injection current (mA)	THD<3% (Linear load<1.5%)

Protection
Integrated	PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection	97.50%	330×457×205
Output Over Voltage Protection	DC Type II/AC Type III		11

Certififications and Standards
Grid Regulation	CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
Safety EMC / Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

General Data
Operating Temperature Range (℃)	-45~60℃, >45℃ derating
Cooling	Smart cooling
Noise (dB)	<45 dB
Communication with BMS	RS485; CAN
Weight (kg)	33.6
Size (mm)	422W x 699.3H x279D
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 years
