- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
TG
-
Accuracy:
-
3%
-
Measuring range:
-
100-5000N.m
-
Packing:
-
Plastic Case
-
OEM/ODM:
-
Available
-
MOQ:
-
1pcs
-
Length:
-
297-1340mm
-
Ratchet head type:
-
Double-side ratchet head
-
Application:
-
Thread fasteners
-
Warranty:
-
1 year
Quick Details
-
Material:
-
Carbon steel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ALIYIQI
-
Model Number:
-
TG
-
Accuracy:
-
3%
-
Measuring range:
-
100-5000N.m
-
Packing:
-
Plastic Case
-
OEM/ODM:
-
Available
-
MOQ:
-
1pcs
-
Length:
-
297-1340mm
-
Ratchet head type:
-
Double-side ratchet head
-
Application:
-
Thread fasteners
-
Warranty:
-
1 year

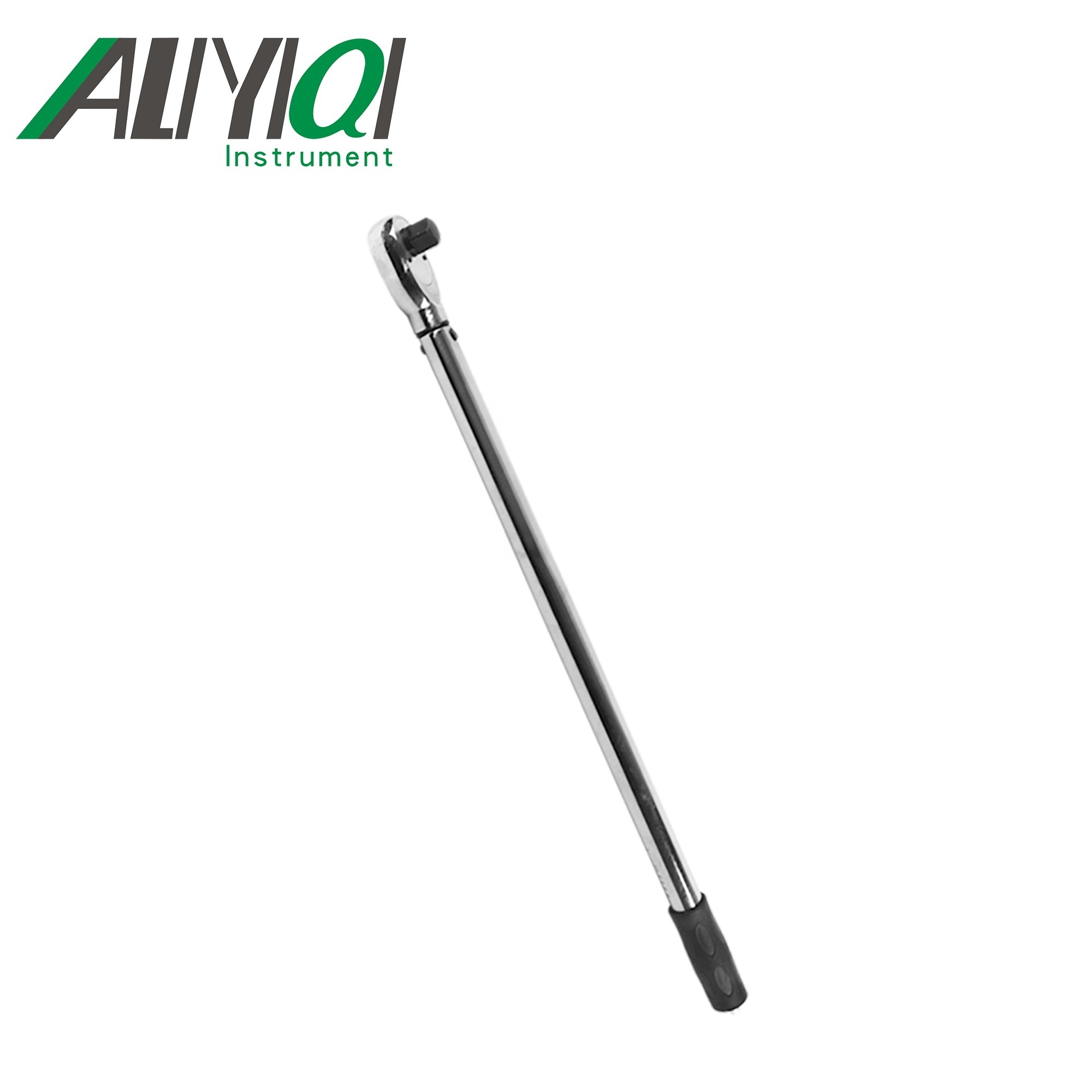

750Nm Torque Wrench Preset Torque Wrench
Features:
Using chrome-plated steel,good strength,large torque range.
The standard is ISO6789-2003GB/T15729-2008
Accuracy is ±4%
Double way ratchet head simple in direction
Only 5-25Nm range have two unit scale,Nm and kg.cm
|
Model |
Range (NM) |
Drive size (mm) |
Drive size (inch) |
Dimension (mm) |
Net weight (KG) |
DIVISION VALUE (Nm) |
|
TG10 |
2-10 |
6.3*63 |
1/4 |
280*28*25 |
0.4 |
0.1 |
|
TG25 |
5-25 |
6.3*63 |
1/4 |
280*28*25 |
0.4 |
0.25 |
|
TG100 |
20-100 |
12.7*12.7 |
1/2 |
460*45*40 |
1.25 |
1 |
|
TG300 |
60-300 |
12.7*12.7 |
1/2 |
630*45*42 |
2.1 |
7.5 |
|
TG350 |
70-350 |
12.7*12.7 |
1/2 |
630*45*42 |
2.5 |
|
|
TG450 |
150-450 |
19*19 |
3/4 |
680*45*42 |
2.5 |
10 |
|
TG500 |
100-500 |
19*19 |
3/4 |
820*60*50 |
4 |
10 |
|
TG980 |
140-980 |
19*19 |
3/4 |
820*60*50 |
4.2 |
|
|
TG760 |
280-760 |
19*19 |
3/4 |
820*60*50 |
4.2 |
25 |
|
TG1000 |
200-1000 |
19*19 |
3/4 |
820*60*50 |
4.5 |
25 |
|
TG2000 |
750-2000 |
25.4*25.4 |
1 |
1700*70*75 |
10.5 |
50 |
|
TG3000 |
1000-3000 |
25.4*25.4 |
1 |
2100*90*85 |
22 |
50 |
|
TG4000 |
2000-4000 |
38*38 |
1 |
2100*100*90 |
25 |
50 |
|
TG5000 |
3000-6000 |
38*38 |
1 |
2800*120*100 |
50 |
100 |
