Quick Details
-
Structure:
-
Angle
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sinya
-
Model Number:
-
JZTA2 Angle-type Needle Valve with ferrule - B
-
Port Size:
-
1/8"~3/4"
-
Material::
-
Stainless Steel,Alloy
-
Structure::
-
Needle
-
material::
-
SS304, SS316,SS304L,SS316L,Alloy
-
pressure::
-
6000psi
-
Body material::
-
Stainless Steel 316,Alloy
-
Flow pattern::
-
Straight/ Angle
-
Certificate::
-
ISO9001:2008 CE
-
Working Temperature::
-
315℃(600°F)
-
Connection::
-
NPT, BSPT, BSPP
-
Orifice::
-
0.08~0.25(in), 2~6.4mm
Quick Details
-
Type:
-
Needle Valves
-
Application:
-
General
-
Power:
-
Manual
-
Structure:
-
Angle
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sinya
-
Model Number:
-
JZTA2 Angle-type Needle Valve with ferrule - B
-
Port Size:
-
1/8"~3/4"
-
Material::
-
Stainless Steel,Alloy
-
Structure::
-
Needle
-
material::
-
SS304, SS316,SS304L,SS316L,Alloy
-
pressure::
-
6000psi
-
Body material::
-
Stainless Steel 316,Alloy
-
Flow pattern::
-
Straight/ Angle
-
Certificate::
-
ISO9001:2008 CE
-
Working Temperature::
-
315℃(600°F)
-
Connection::
-
NPT, BSPT, BSPP
-
Orifice::
-
0.08~0.25(in), 2~6.4mm
Product Description
|
1.JZT series needle valves are a kind of instrument valves under high pressure.
|
|
|
|
|
||||
|
2.Suitable for install on the instrument panel or without panels.
|
|
|
|
|
||||
|
3.To execute the closing or shutting-off in the fluid system.
|
|
|
|
|
||||
|
4.To control comparatively big flow with its compact structure.
|
|
|
|
|
||||
|
5.Different kinds of stems for selection.
|
|
|
|
|
||||
|
6.There are two kinds of structures for selection: straight way type & angletype.
|
|
|
|
|
||||
|
7. Four types of hand wheels: ball-type, Round-type, bar metal and non-metal.
|
|
|
|
|
||||
|
8.Working Pressure can be up to 6000PSI (413bar).
|
|
|
|
|
||||
|
9.WorkingTemperature can be up to 315℃（600°F）.
|
|
|
|
|
||||
|

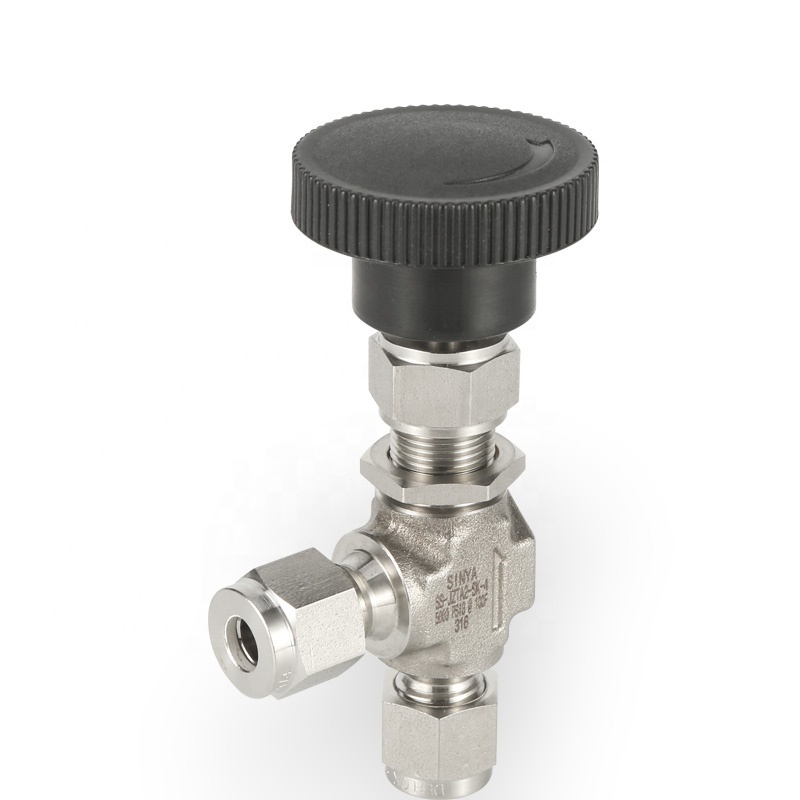

-JZTA2 Angle-type Needle Valve with ferrule
|
|
|
|
|
|
|
|
|||||||
|
Order information
|
End Connection Size
|
|
Orifice
|
|
Flow coefficient
|
A
|
|
|||||||
|
|
(in)
|
(mm)
|
(in)
|
(mm)
|
Cv
|
(in)
|
(mm)
|
|||||||
|
-JZTA2-SK-2
|
1/8
|
3.17
|
0.080
|
2
|
0.09
|
0.99
|
25.1
|
|||||||
|
-JZTA2-SK-4
|
1/4
|
6.35
|
0.172
|
4.4
|
0.37
|
1.14
|
29.0
|
|||||||
|
-JZTA2 -SK-6
|
3/8
|
9.52
|
0.250
|
6.4
|
0.73
|
1.3
|
33.0
|
|||||||
|
-JZTA2 -SK-8
|
1/2
|
12.70
|
0.375
|
9.5
|
1.8
|
1.4
|
35.6
|
|||||||
|
-JZTA2 -SK-12
|
3/4
|
19.05
|
0.375
|
9.5
|
1.8
|
1.9
|
48.3
|
|||||||
|
-JZTA2 -SK-3mm
|
0.118
|
3
|
0.080
|
2
|
0.09
|
0.99
|
25.1
|
|||||||
|
-JZTA2 -SK-6mm
|
0.236
|
6
|
0.172
|
4.4
|
0.37
|
1.14
|
29.0
|
|||||||
|
-JZTA2 -SK-8mm
|
0.315
|
8
|
0.172
|
4.4
|
0.37
|
1.3
|
33.0
|
|||||||
|
-JZTA2 -SK-10mm
|
0.374
|
10.00
|
0.250
|
6.4
|
0.73
|
1.3
|
33.0
|
|||||||
|
-JZTA2 -SK-12mm
|
0.472
|
12.00
|
0.375
|
9.5
|
1.8
|
1.4
|
35.6
|
|||||||
|
-JZTA2 -SK-14mm
|
0.551
|
14.00
|
0.375
|
9.5
|
1.8
|
1.6
|
40.6
|
|||||||
|
-JZTA2 -SK-18mm
|
0.709
|
18.00
|
0.375
|
9.5
|
1.8
|
1.9
|
48.3
|
|||||||
|
Order information
|
D
|
|
H
|
|
F
|
|
|||
|
|
(in)
|
(mm)
|
(in)
|
(mm)
|
(in)
|
(mm)
|
|||
|
-JZTA2-SK-2
|
0.47
|
11.9
|
2.28
|
57.9
|
1.00
|
25.4
|
|||
|
-JZTA2-SK-4
|
0.53
|
13.5
|
2.5 0
|
63.5
|
1.38
|
35.1
|
|||
|
-JZTA2 -SK-6
|
0.78
|
19.8
|
2.9 7
|
75.4
|
1.8 8
|
47.8
|
|||
|
-JZTA2 -SK-8
|
1.03
|
26.2
|
3.9 0
|
99.1
|
3
|
76.2
|
|||
|
-JZTA2 -SK-12
|
1.03
|
26.2
|
3.9 0
|
99.1
|
3
|
76.2
|
|||
|
-JZTA2 -SK-3mm
|
0.48
|
12.2
|
2.2 8
|
57.9
|
1
|
25.4
|
|||
|
-JZTA2 -SK-6mm
|
0.53
|
13.5
|
2.5 0
|
63.5
|
1.38
|
35.1
|
|||
|
-JZTA2 -SK-8mm
|
0.53
|
13.5
|
2.5 0
|
63.5
|
1.38
|
35.1
|
|||
|
-JZTA2 -SK-10mm
|
0.78
|
19.8
|
2.9 7
|
75.4
|
1.88
|
47.8
|
|||
|
-JZTA2 -SK-12mm
|
1.03
|
26.2
|
3.9 0
|
99.1
|
3
|
76.2
|
|||
|
-JZTA2 -SK-14mm
|
1.03
|
26.2
|
3.9 0
|
99.1
|
3
|
76.2
|
|||
|
-JZTA2 -SK-18mm
|
1.03
|
26.2
|
3.9 0
|
99.1
|
3
|
76.2
|
|||
