Quick Details
-
Size:
-
1560x243x152mm
-
Place of Origin:
-
Shandong, China
-
Shape:
-
Spmt
-
Axle Number:
-
2/3/4/5/6/etc Multi Axle
-
Tire Number:
-
More than 18pcs
-
Types of Suspension Systems:
-
Leaf Spring Suspension
-
Max Drive Force/Module:
-
125~250
-
Engine/power:
-
330~390KW
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
80tons
-
Brand Name:
-
Benchi
-
Size:
-
1560x243x152mm
-
Place of Origin:
-
Shandong, China
-
Shape:
-
Spmt
-
Axle Number:
-
2/3/4/5/6/etc Multi Axle
-
Tire Number:
-
More than 18pcs
-
Types of Suspension Systems:
-
Leaf Spring Suspension
-
Max Drive Force/Module:
-
125~250
-
Engine/power:
-
330~390KW
Product description
Transport semi-trailers for special operationssuch as over length, over width, over low,
nondetachablegoods,precisioninstrumentsbridges, etc
Advantages of the company: Based on eachspecial vehicle, combined with the actual trans-portation method of goods, the loading
positionand load bearing style of goods, a more reason-able and usable special vehicle transportationsemi-trailer is designed.
Transport semi-trailers for special operationssuch as over length, over width, over low,
nondetachablegoods,precisioninstrumentsbridges, etc
Advantages of the company: Based on eachspecial vehicle, combined with the actual trans-portation method of goods, the loading
positionand load bearing style of goods, a more reason-able and usable special vehicle transportationsemi-trailer is designed.
Picture display
Advantages of Benchi SPMT Heavy Duty Hydraulic
1. Narrow-body modular design, single module width 2430mm;
2. 44t large axle load, especially suitable for concentrated load transport;
3. Multi-vehicle combination function: It can realize the soft and hard connection of up to 600 axis modules, and the maximum load can reach 20000t;
4. Multi-mode steering with the same steering mode for single and combined vehicles;
5. The hydraulic pipe adopts flaring joint, which has better pressure resistance and leakage resistance.
6. The arrangement and combination of axis positions can be automatically identified after multiple vehicles are combined independently, and a visual digital interface can be generated for operators to perform operations after checking, which can reduce manual errors, reduce operation difficulty and save operation time.
Learn more about Benchi Vehicle
Benchi Vehicle is an excellent semi-trailer manufacturer in China.
And Benchi Vehicle has successfully entered into over 50 countries around the world.
1. Narrow-body modular design, single module width 2430mm;
2. 44t large axle load, especially suitable for concentrated load transport;
3. Multi-vehicle combination function: It can realize the soft and hard connection of up to 600 axis modules, and the maximum load can reach 20000t;
4. Multi-mode steering with the same steering mode for single and combined vehicles;
5. The hydraulic pipe adopts flaring joint, which has better pressure resistance and leakage resistance.
6. The arrangement and combination of axis positions can be automatically identified after multiple vehicles are combined independently, and a visual digital interface can be generated for operators to perform operations after checking, which can reduce manual errors, reduce operation difficulty and save operation time.
Learn more about Benchi Vehicle
Benchi Vehicle is an excellent semi-trailer manufacturer in China.
And Benchi Vehicle has successfully entered into over 50 countries around the world.
Specifications Sheet
|
item
|
value
|
|
Use
|
Truck Trailer
|
|
Type
|
Semi-Trailer
|
|
Material
|
Steel
|
|
Size
|
1560x243x152mm
|
|
Max Payload
|
80tons
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
Benchi
|
|
Shape
|
Spmt
|
|
Axle Number
|
2/3/4/5/6/etc Multi Axle
|
|
Tire Number
|
More than 18pcs
|
|
Types of Suspension Systems
|
Leaf Spring Suspension
|
|
Max Drive Force/Module
|
125~250
|
|
Steering mode
|
Eight - shaped steering, transverse, oblique, center rotation, pendulum
|
|
Engine/power
|
330~390KW
|
|

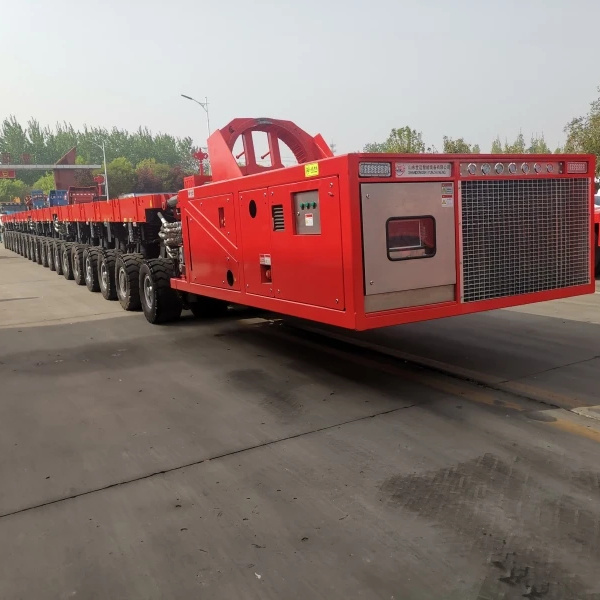

PPU Technical Data
|
|
|
||
|
Power Module Unit(PPU):390kw
|
|
|
||
|
1 |
Model |
P390 |
||
|
2 |
Power |
390kw/2100rpm |
||
|
3 |
Weight |
8000Kg |
||
|
4 |
Length |
4350mm |
||
|
5 |
Width |
2310mm |
||
|
6 |
Height |
1080mm |
||
|
7 |
Exhaust emission standard
|
The third phase of China's non-road
|
||
|
8 |
Fuel tank volume
|
400L |
||
|
9 |
Hydraulic tank volume
|
750L |
||
|
10 |
Nominal voltage of electrical system
|
DC24V |
||
|
11 |
Maximum axis that can be driven
|
40 |
||
|
Four Axis Line
|
|
|
|
Technical Data of SPMT4243.24
|
|
|
|
1
|
Driving powers 2X60kN=120kN
|
|
|
2
|
Ramp rate 5%
|
|
|
3
|
Braking force 55*4=220kN
|
|
|
4
|
Running speed 0.5km/h
|
|
|
Weight & Load
|
|
|
|
5
|
Self weight (max.) 18500Kg
|
|
|
6
|
Payload (total) 173500Kg
|
|
|
7
|
Gross weight 192000Kg
|
|
|
8
|
Axial load 48000Kg
|
|
|
Size
|
|
|
|
9
|
Total Length 5600mm+fittings
|
|
|
10
|
Total width 2430mm
|
|
|
11
|
Load height 1500mm(±350mm)
|
|
|
12
|
Moving height 1500mm
|
|
|
13
|
Wheelbase (Lengthways) 1400mm
|
|
|
14
|
Wheel track (Crosswise) 1450mm
|
|
|
15
|
Tyre gauge 620mm
|
|
|
Suspension steering unit
|
|
|
|
16
|
Total number 8
|
|
|
17
|
Drive 2
|
|
|
18
|
Braking 4
|
|
|
19
|
Driven 2
|
|
FAQ
1. How can we trust your company?
Shandong Benchi International Trading Co., Ltd. It is an industrial and trade enterprise integrating scientific research,
production and sales. It was invested and established in 2019 by the factory Shandong Changda Special Vehicle Co., Ltd. which was founded in 2006. It has a complete R&D system and a team of technical experts, and has obtained more than 50 patented technologies and intellectual property rights of special vehicle & semi-trailers.
It has an annual production capacity of 5,000 special-purpose vehicles and semi-trailers.
It provides customers with high-quality and reliable products and a complete after-sales service system.
2. Is it available to print our own brand on the vehicle?
Yes, vehicles can be customized according to customer's request, and the customer's brand can be displayed on the vehicle.
3. How about warranty item?
The warranty is two years.
Enjoy the global after-sales service of well-known brands
4. What information should I let you know if I want to get a quotation?
Please let us know your purpose, road condition, cargo type, weight of your coargo, dimensions of trailer, quality ect.. The more info you provide, the more accurate model and price you will get.
5. How to ship it?
The trailers can be shipped by, 40FT container, 40HQ containe.
open-top container, flat bed container, Ro-Ro ship or bulk
It will according to the size the products.
Shandong Benchi International Trading Co., Ltd. It is an industrial and trade enterprise integrating scientific research,
production and sales. It was invested and established in 2019 by the factory Shandong Changda Special Vehicle Co., Ltd. which was founded in 2006. It has a complete R&D system and a team of technical experts, and has obtained more than 50 patented technologies and intellectual property rights of special vehicle & semi-trailers.
It has an annual production capacity of 5,000 special-purpose vehicles and semi-trailers.
It provides customers with high-quality and reliable products and a complete after-sales service system.
2. Is it available to print our own brand on the vehicle?
Yes, vehicles can be customized according to customer's request, and the customer's brand can be displayed on the vehicle.
3. How about warranty item?
The warranty is two years.
Enjoy the global after-sales service of well-known brands
4. What information should I let you know if I want to get a quotation?
Please let us know your purpose, road condition, cargo type, weight of your coargo, dimensions of trailer, quality ect.. The more info you provide, the more accurate model and price you will get.
5. How to ship it?
The trailers can be shipped by, 40FT container, 40HQ containe.
open-top container, flat bed container, Ro-Ro ship or bulk
It will according to the size the products.
