Quick Details
-
Type:
-
Fixed/Swivelling/Automatic/Manual
-
Application:
-
Fire Fighting Emergency Rescue
-
Certification:
-
Australian Stanard/CE LPCB
-
Working Pressure:
-
12Bar
-
Test Pressure:
-
18Bar
-
Size:
-
19mm/25MM
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ANSU
-
Model Number:
-
Fire Hose Fire Hose Reel
-
Type:
-
Fixed/Swivelling/Automatic/Manual
-
Application:
-
Fire Fighting Emergency Rescue
-
Certification:
-
Australian Stanard/CE LPCB
-
Working Pressure:
-
12Bar
-
Test Pressure:
-
18Bar
-
Size:
-
19mm/25MM

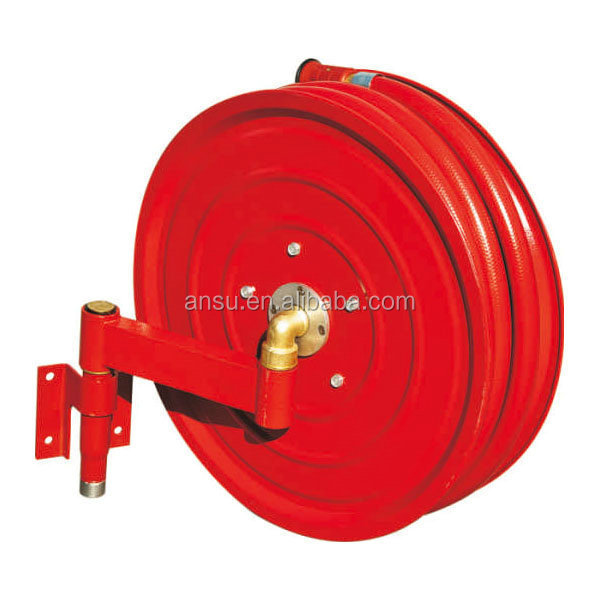

Swing Fire Hose Reel
Manual Type /Automatic Type
19MM*30M 25MM*30M
Fire Hose Reels provide a reasonably accessible and controlled supply of water to combat a potential Class A fire risk.
Various types of Fire Hose Reels are available to meet specific needs.
Specification:
| Product | Size | H(mm) | W(mm) | D(mm) | Inlet | Outlet | Type | |||||
| Fire Hose Reel | 19mm*30M | 570 | 280 | 525 | 1'' BSP | 6mm | Manual | |||||
| 19mm*30M | 570 | 280 | 525 | 1''BSP | 6mm | Automatic | ||||||
| 25mm*30M | 580 | 300 | 550 | 1'' BSP | 8mm | Manual | ||||||
| 25mm*30M | 580 | 300 | 550 | 1'' BSP | 8mm | Automatic | ||||||
Fixed fire hose reel with Australian standard 19mm
With a standard fully extended length of 36 metres, Fire Hoses are designed to deliver a minimum of 0.33 litres of water per second.
Various types of Fire Hose Reels are available to meet specific needs.
Fire Hose Reels provide a reasonably accessible and controlled supply of water to combat a potential Class A fire risk.
A control nozzle attached to the end of the hose enables the operator to control the direction and flow of water to the fire.
The Fire Hose Reel features:
A unique ball valve shut off device, ensuring the maximum flow of water is available to the hose with one movement of a lever
A solid brass hose nozzle
Quick and easy installation using our simple wall mounting bracket.
Specification:
1. Standard Mark certificate to AS1221
2. Licence number SMKH21422
3. Side plates 1mm colld rolled steel or stainless steel
4. RAL3000 polyester epoxy powder coating
5. 1 manual stop valve with connection fitting
6. Inlet pipe galvanized steel or stainless steel
7. Unwind test through hose guide force ≤ 100N
8. Red or black fire hose to AS1180
9. Three operating sequence nozzle can choose
10. Max working pressure 15 bar, test pressure 17 bar
